XZ960E
1year
1year
CE, RoHS, ISO 9001:2000, ISO 9001:2008
New
>300mm
>150m
Cone Bit
Compound
Crawler
221/2100kw/Rpm
970kn
33000n.M
0-120r/Min
102mm
800mm
cruking
Container
China
Product Description
Products Description

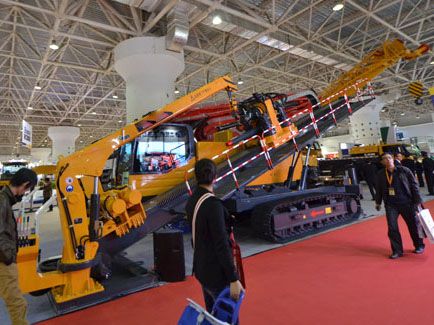

Chinese Famous Brand horizontal directional drilling Convenient Operation XZ960E
2.Rack and pinion sliding, to ensure the stability of the carriage and the reliability of drive operational. Carriage floating,floating vise patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
3.High-speed sliding systems, variable motor to achieve high and low carriage sliding change, increasing the ability to adapt the drilling rig working conditions, improve the efficiency of the drilling rig construction.
4.Stable chassis support, using the classic H-beam structure, high quality rubber track, breaststroke leg structure, provide a strong guarantee for the stability of the whole construction.
5.lt adopts high-low-speed push-pull and rotation system in which the plunger-type variable displacement motor can achieve high and low speed push-pull of the power head,improving the ability to adapt to various working condition sand construction efficiency of the drilling rig.
Product Paramenters
Description | Unit | Parameter value | |
Engine | Manufacturers | Shangchai | |
Model | SDECSC9DF300G3 | ||
Rated Power | kW /(r/min) | 221/2100 | |
Thrust-Pull | Type | Piston Motor+ Reduction Box | |
Max thrust-pull force | kN | 970 | |
Max thrust-pull speed | m/min | 50 | |
Rotation | Type | Piston Motor+ Reduction Box | |
Torque | N·m | 33000 | |
Max spindle speed | r/min | 120 | |
Loader Crance | / | / | |
Max inclination angle | ° | 20 | |
Pipe | Diameter × Length | mm×m | φ102×6 |
Mud pump | Max Flow rate | L/min | 600 |
Max pressure | MPa | 10 | |
Option | 1.Full-automatic pipeloader 2.Mud antifreeze 3.Mud Cleaning | ||
