Elevator Door System
1 Year
1 Year
AC Elevator
500-1000kg
6 - 10
2.00 - 3.50m/s
Collective Selective Control
up
Center Opening Door
Single
With Deceleration Device
Without Attendant
3.7-45kw
Mr & Mrl
220V/380V
Painted, Stainless Steel
NOVA
Standard Export Package
1*20GP container
China
Product Description
Product Description
Opening Range:
Controller:
1. Opening width: 600-1400mm,
2. 2 panels center opening or side opening 800-1400mm,
3. 3 panels side opening 700-1800mm,
4. 4 panels center opening 2000-3000mm
4. 4 panels center opening 2000-3000mm
5. 6 panels center opening
6. Opening height: 2000mm or 2100mm
Motor:
1. AC induction motor can use vector control and VVVF control. If VVVF control adopted, speed sensor would be not necessary. The method of control is simple, meanwhile, same controller can drive several similar motors.
2. Vector control, AC induction motor only needs speed information, angle information are not necessary. Therefore, encoder only adopts increment. Besides, AC induction motor operates without initial position, during application of door system, not necessary to study pole position and absolute encoder.
3. AC induction motor has no demagnetization problem. AC motor stall torque is rather big, can be applied to more door types.
Controller:
1. The method of control is simple, same controller can drive several similar motors.
2. It is applicable to door open
width with heavy load.
width with heavy load.
Door Panel Finish:
1. Door panel finish: painted, stainless steel(hairline, mirror, etching)
Details Images
 |
Different Models
Center Opening Elevator Car Door Operator

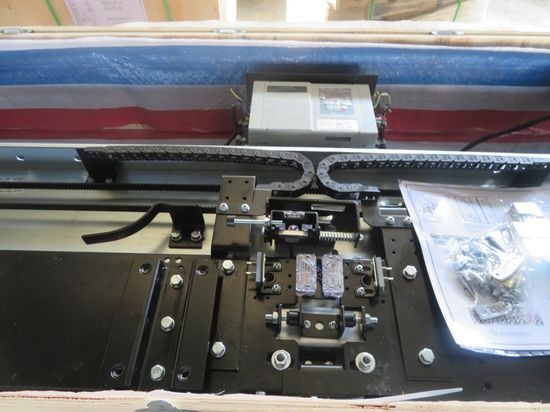

Side Opening Elevator Car Door Operator
Reference Pictures
Product Packing
Main Product Cataloge
1. Price Re:
please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It's more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term Re:
T/T or L/C at sight.
3. Installation&Maintaining Re:
We will send installation&maintaining manual along with the elevator. Our sugguestion is to hire a professional local company for installation and future maintaining, once you need any technical assistant from us, just don't hesitate to contact us by mail or phone. Technician will be sent to the job site if necessary.
4. Shipping&price term Re:
Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
