Introduction
Hydro-Park 3130 and 3230 is the new Stacker Parking Lift designed by Mutrade, and is the most effective way to triple or quadruple the capacity of typical parking areas. Hydro-Park 3130 allows three vehicles to be stacked in a single parking space and Hydro-Park 3230 allows four vehicles. It moves only vertically, so the users have to clear the underneath levels to get the higher level car down. The posts can be shared to save land space and cost.
- Commercial grade design
- Best solution for car storage and showing
- Can be configured as a stand- alone lift or combined into rows of multiple units.
- Self-standing and self-support structure
- 3000kg rated capacity makes it possible for heavy duty vehicles.
- 2000mm usable platform width makes it much easier for parking and retrieve.
- Full width platforms with unique design on supporting points to carry maximum 5400kg load per platform.
- The steel ropes are 7 times as strong as the rated capacity.
- Electric key switch control for security and safety
- Automatic shut-off if operator releases the key switch
- Two-position (for Hydro-Park 3130) or three-position (for Hydro-Park 3230) fail safe locking system
- Manual lock releasing by handle
- Single hydraulic cylinder with heavy-duty steel lifting cable for smooth operation
- Hydraulic overloading protection
Specifications
| Model | Hydro-Park 3130/3230 |
| Vehicles per unit | 3/4 |
| Lifting capacity | 3000kg |
| Available car height | 2000mm |
| Drive-through width | 2050mm |
| Power pack | 5.5Kw hydraulic pump |
| Available voltage of power supply | 200V-480V, 3 Phase, 50/60Hz |
| Operation mode | Key switch |
| Operation voltage | 24V |
| Safety lock | Anti-falling lock |
| Lock release | Manual with handle |
| Rising / descending time | <90s/ <150s |
| Finishing | Powdering coating |
Details
Porsch.e required test
Test was made by a 3rd party hired by Porsch.e for their New York dealershop
Structure

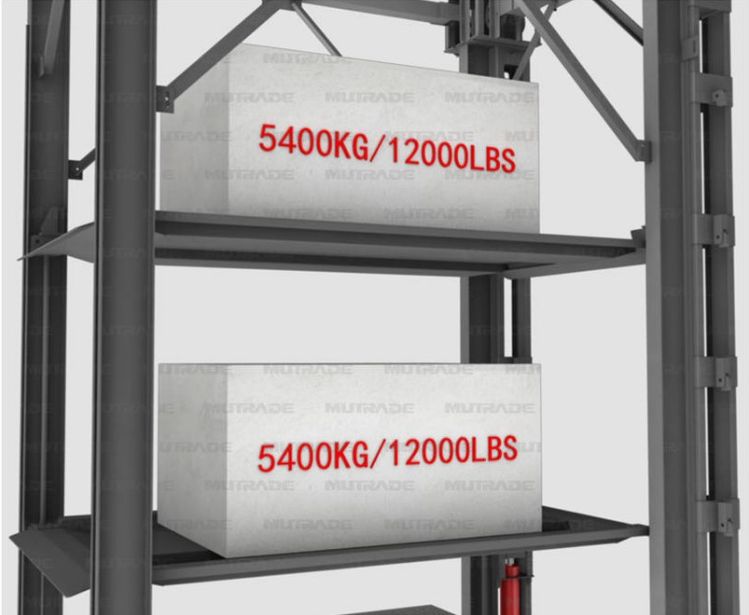

MEA approved (5400KG/12000LBS static loading test)
A new type of hydraulic system of German structure
Germany's top product structure design of the hydraulic system, the hydraulic system is
stable and reliable, maintenance free troubles, service life than the old products doubled.
New design control system
The operation is simpler, the use is safer, and the failure rate is reduced by 50%.
After applying AkzoNobel powder, color saturation,
weather resistance and its adhesion are significantly enhanced

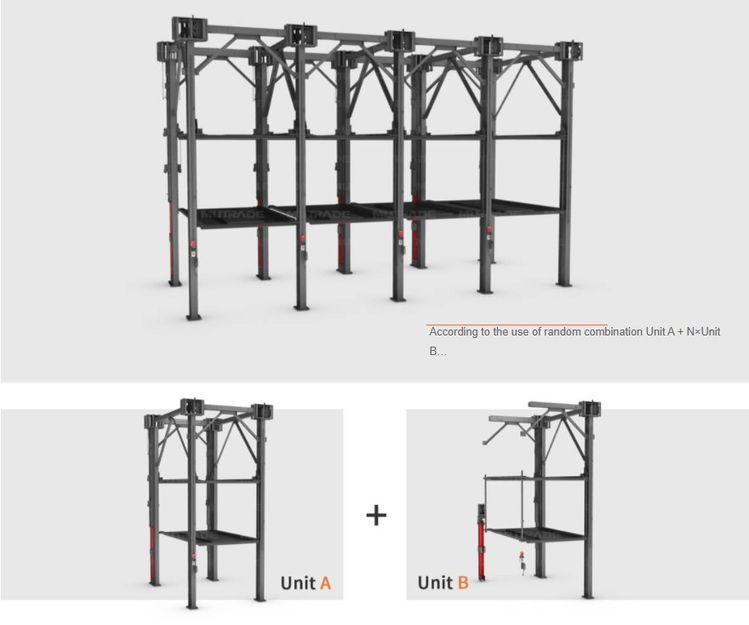

Modular connection, innovative shared column design
Laser cutting + Robotic welding
Accurate laser cutting improves the accuracy of the parts, and
automated robotic welding makes the weld joints more firm and beautiful
Company overview
Qingdao Mutrade Co., Ltd. is one of the earliest professional mechanical parking equipment providers in China. We are committed to provide the most suitable and cost-effective parking equipment to our clients all over the world. We warmly welcome your visit.
