4LZC-4.0ZB
Horizontal Cut Harvester
Rice
Diesel
Cutting
Gear Drive
Hard Shaft
Side Hanging Type
ISO9001:2008, CE
Green
New
Agriculture
4lzc-4.0zb
4.0
2950
4-Cylinder in-Line Water Cooling
65
2600
Diesel
325
0-5.8
2000
FOTMA
in Iron Crates or Assembly
ISO, CE
China
84335100
Product Description
Self-Propelled Whole-Feed Rice Combine Harvester (4LZC-4.0ZB)
1. Why choose us?
FOTMA is the leading and professional supplier in China for rice & wheat mini combine harvester!
FOTMA has over than 17 years experience with combine harvester and agricultural machine!
FOTMA can supply the best price and professional service!
FOTMA has good reputation with all world customers!
FOTMA is 13 year Gold Member at Made In China!
2. Product description
Our combine harvesters are high working efficiency and low cost, which is strong power, simple operation, more peace of mind, excellent quality, better durability, large and fast feeding and harvesting.
3. Characteristics
1. The imported HST gearbox is adopted, tailored and specialized for this model to achieve reasonable matching.
2. Equipped with a high-powered engine, giving a strong driving force.
3. Equipped with a wide-swath header, able to achieve large feeding operation.
4. Features
1.65kw engine from excellent manufacturer, which has strong power and reliable performance.
2. Widened beating chamber feeding mouth to make the feeding more uniform and continuous.
3. The integration of the parameters such as the cutter, screw conveyer and transporting chain harrow can provide a better working condition for threshing.
4. Coupled with other threshing components to make the underthreshing and entrained loss uneasy to occur.
5. Adopt external hanging tossing board with independent drive to reach the lowest cleaning loss.
6. Adopt multi-level adjustable centrifugal fan to delaminate the air flow to make the grain cleaner.
7.4-tight-up belt is adopted in threshing cylinder and master driver, which can improve the transferring reliability and working efficiency.
8. Open type guard board and concealed ladders.
5. Technical parameters
6. Photos
7. Payment
If you would like to get an offer or place an order, Contact us with the products name, model, quantity desired or a description if not listed in our website. All of our prices are for dealership based on wholesale purchase. We offer various payment options such as Wire Transfer (T/T), Letter of Credit at sight, Paypal, Westunion etc.
8. Shipping
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
9. Contact us
Ms. Mavis Zheng
Hubei FOTMA Machinery Co., Ltd
Add: No. 52 Guanggu Avenue, Hongshan, Wuhan city, Hubei Province, P.R.China.
1. Why choose us?
FOTMA is the leading and professional supplier in China for rice & wheat mini combine harvester!
FOTMA has over than 17 years experience with combine harvester and agricultural machine!
FOTMA can supply the best price and professional service!
FOTMA has good reputation with all world customers!
FOTMA is 13 year Gold Member at Made In China!
2. Product description
Our combine harvesters are high working efficiency and low cost, which is strong power, simple operation, more peace of mind, excellent quality, better durability, large and fast feeding and harvesting.
3. Characteristics
1. The imported HST gearbox is adopted, tailored and specialized for this model to achieve reasonable matching.
2. Equipped with a high-powered engine, giving a strong driving force.
3. Equipped with a wide-swath header, able to achieve large feeding operation.
4. Features
1.65kw engine from excellent manufacturer, which has strong power and reliable performance.
2. Widened beating chamber feeding mouth to make the feeding more uniform and continuous.
3. The integration of the parameters such as the cutter, screw conveyer and transporting chain harrow can provide a better working condition for threshing.
4. Coupled with other threshing components to make the underthreshing and entrained loss uneasy to occur.
5. Adopt external hanging tossing board with independent drive to reach the lowest cleaning loss.
6. Adopt multi-level adjustable centrifugal fan to delaminate the air flow to make the grain cleaner.
7.4-tight-up belt is adopted in threshing cylinder and master driver, which can improve the transferring reliability and working efficiency.
8. Open type guard board and concealed ladders.
5. Technical parameters
| Model | 4LZC-4.0ZB | |||
| Feed Quantity | ( kg/s ) | 4.0 | ||
| Dimension | Overall length ( mm ) | 4990 | ||
| Overall width ( mm ) | 2380 | |||
| Overall Height ( mm ) | 2322 | |||
| Weight | (kg) | 2950 | ||
| Engine | Type | 4-cylinder in-line water cooling | ||
| Rated Power (kW) | 65 | |||
| Speed ( r/min ) | 2600 | |||
| Fuel | diesel | |||
| Fuel Consumption ( kg/h m2) | ≤32 | |||
| Drive System | Track | specification | 90 mm× 53section× 500mm/450mm | |
| Track gauge | 1150 | |||
| Minimum Ground Clearance ( mm ) | 325 | |||
| Transmission | Mechanical + stepless hydraulic speed regulating (HST) | |||
| Number of shifting positions | stepless speed | |||
| Walking Speed | 0-5.8 | |||
| Cutting | Reel | Type | Eccentric drawing-tooth | |
| diameter ( mm ) | 900 | |||
| Cutting Width ( mm ) | 2000 | |||
| Blade Width ( mm ) | 2000 | |||
| Header auger | Spiral blade+Eccentric telescopic rod rack | |||
| Grain unloading Part | Grain unloading method | Manual receiving or Mechanical unloading | ||
| Grain Tank ( m³ ) | 0.33 ( Manual ) | |||
| Load Schedule | 3units/40HQ | |||
| Optional configuration | Engine | 70KW | ||
| Track | 450mm | |||
| Grain Tank | 1.0m³ ( Mechanical unloading ) | |||

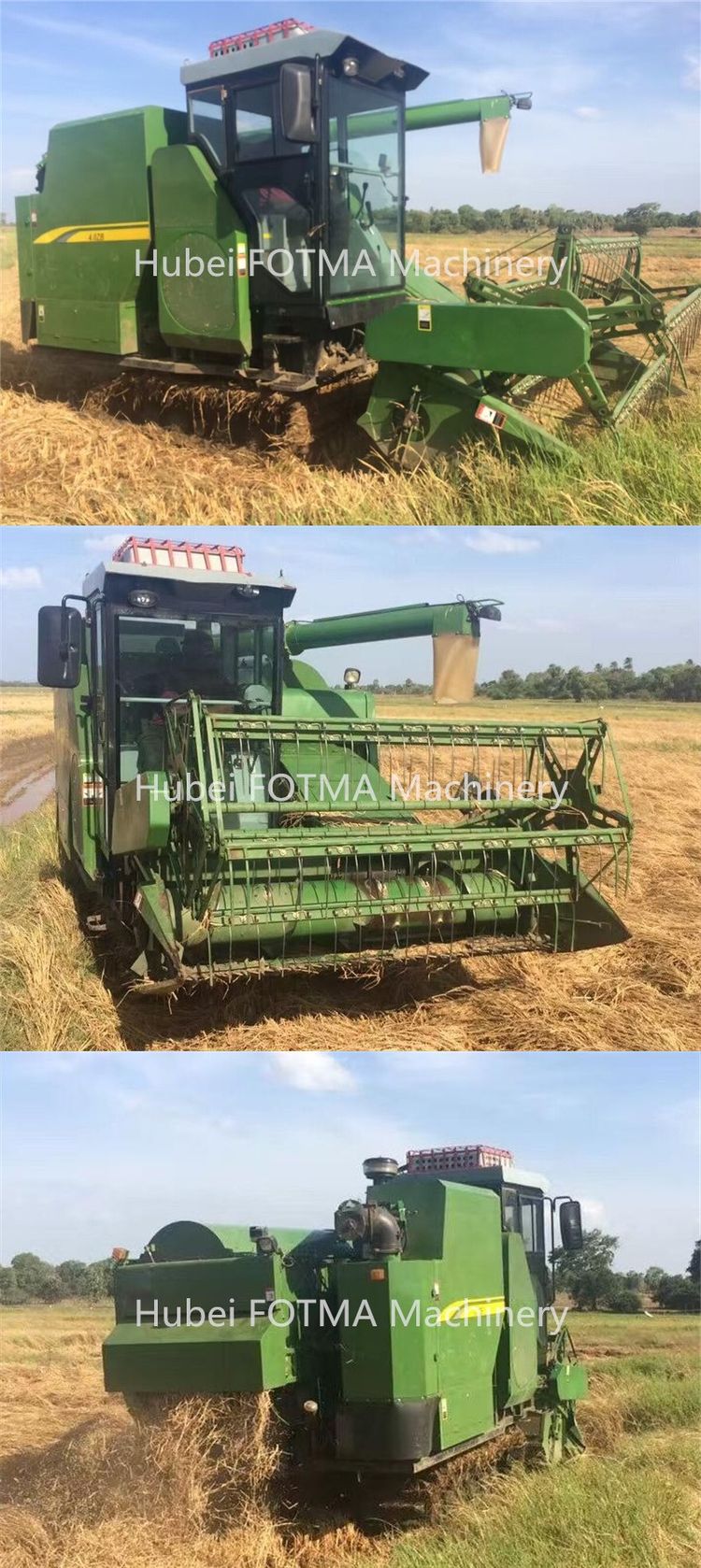

6. Photos
