Fst100-1001 Low Voltage Battety 0.25-2.5VDC 10 Bar 20bar Iot Pressure Sensor

Standard Range
Pressure Type: gauge pressure  absolute pressure  sealed pressure
Pressure Range(bar):0-0.1 1 bar to 60bar
Technical Parameter
Signal output (proportion)	0.25~1.25VDC, 0.25~2.25VDC 0.5~2.5VDC, 10~90% Vcc
Signal line specification	3wire
Power Voltage	3~5VDC or according to user requirements
Power Consumption Current	<2mA
Accuracy	±0.3%FS  ±0.5%FS ±1%FS
Compensated Temperature	-20~+85°C
Working temperature	-40~+85°C
Long Term Stability	±0.2%FS
Overload Pressure	200% FS
Burst Pressure	300% FS
IP Grade	IP65
Materials	Stainless Steel

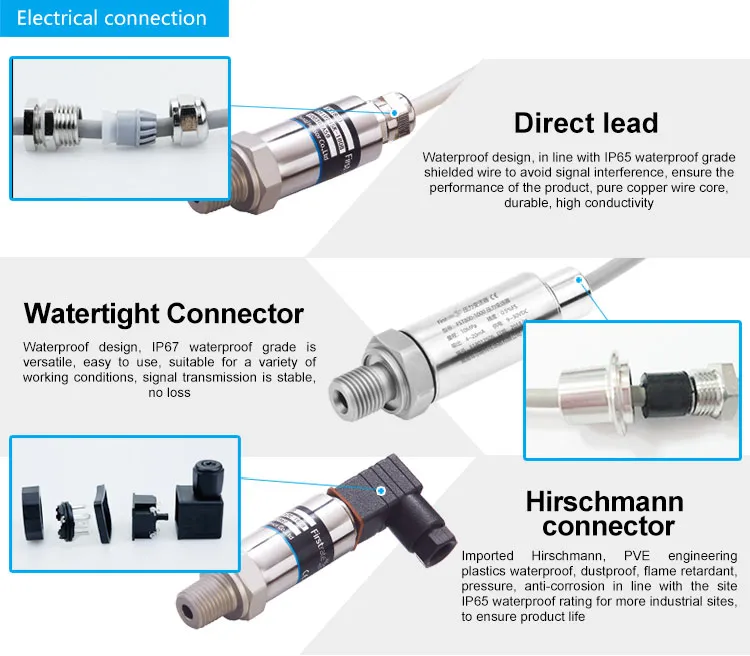

Electrical connection	Direct lead, Hirschmann, watertight connector (IP67)
Pressure interface	M20*1.5, G1/4, NPT1/4 (others are customized)

About Hunan Firstrate Sensor Co.,ltd

Hunan Firstrate Sensor Co.,ltd is a high-tech joint venture specialized in researching, manufacturing, and sales of sensors and transmitters. Our products include Pressure sensors and Transmitters, Temperature sensors and transmitters, Liquid-level sensors and Transmitters, Wind Speed & Direction sensor, and Intelligent Control Instruments. They are widely used in the field of aviation & aerospace, national defense & military project, engineering machinery, railway & urban railway system, automotive electronics system, HVAC, air compressor, textile, petrochemical, coal mines and other industrial automation control. Fst100-1001 Low Voltage Battety 0.25-2.5VDC 10 Bar 20bar Iot Pressure Sensor

More About Firstrate Company

Firstrate is committed to the research & development of international leading Microfused technology, adopts the Microfused Silicon Strain Gauge production technique ,CAN ( Controller Area Network) technology and wide temperature digital compensation data system. MEMS sensors have been recognized and highly praised by scientists and engineers from industrial automation. At present, our company has declared 12 national invention patents, 30 plus utility-model patents. And have got the certificates of CMC, CE, Safety & Flame-proof certification and ROHS.  Fst100-1001 Low Voltage Battety 0.25-2.5VDC 10 Bar 20bar Iot Pressure Sensor

Our Certifications

Price, Package, Service

1, Price : EXW,  FOB,  CFR  Changsha

2, Payment: 100% T/T in advance .
3, Packing : standard export packing , including instructions and certificate
4, Leading time : 7-10 working days.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty

Packing:standard export packing , including instructions and certificate/ Carton Packing, Water Proof, Shock Resistance

  Tel: +86-731-86171990        Website: http://firstsensor.en.made-in-china.com
