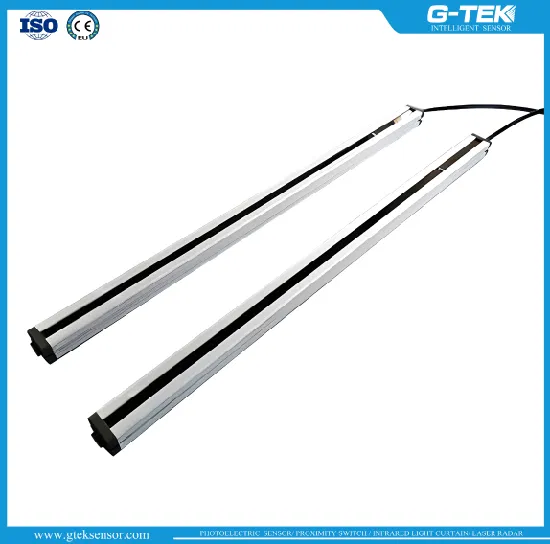

LHA 24 Series Intelligent defrosting vehicle separator
Under the severe weather such as frost,snow,rain,fog,the penetrating power of the light curtain is reduced then the defrosting function operates automatically , In normal working condition (no frost,snow,rain and fog), the heating system stay non-launching to prolong the working life of the system.
Features
1 With Intelligent heating function,Defrost function starts automatically under severe weather to eliminate the block to light path from frost,snow,rain and fog;
2 Aspheric surface optical lens totally eliminate spherical aberration,aberration and stray light;
3 Build-in self-diagnostic function,detection output function and alarm output function;
4 Light penetrability power(Receiving light intensity of receiver),directive function, easy for on-site installation and maintenances;
5 RS485series communication meet customers' different task requirement by initial setting and meanwhile acquire information on every light beam and system working status;
6 Reliable separation for vehicles, the reliability is high to 99.9% under fine whether and not less than 99.5% even under rain snow or fog whether.
| Model | Type | Detection Distance | Min sensing object | Quantity of optical axis | Scanning Height (mm) | Housing Height(mm) |
| LHA2452 | Standard | 18m | Common scan:38mm Cross scan:24mm | 52 | 1248 | 1361 |
| LHAC 2452 | RS485 | 18m | Common scan:38mm Cross scan:24mm | 52 | 1248 | 1361 |
| Mode | LHA2452/LHAC2452 |
| SupplyVoltage | 12~30V DC |
| SupplyCurrent | Automatic defrosting off-working:≤0.5A;Automatic defrosting at working:≤2A |
| Max sensing Distance | 18m |
| Space between optical axis | 24mm |
| Min sensing object | Common scan:38mm; Cross scan:24mm |
| Protection Function | Instant over voltage protection. Reverse polarity protection |
| Output | Detection output,alarm output and self-diagnostic functions The size of trigger is selectable(common factory setting is 120mm trigger, and the distinguish ability is basis on the min sensing object) |
| Output type | On-off output, current<150Ma(30V DC), NPN,PNP optional |
| Series output | RS485 series connector,baud rate19200,half-duplex asynchronous communication; 1 start-bit,8 date bits,1 stop bit,no parity bit |
| Scanningcycle | <1.5ms |
| Min vehicle-separated distance | 100mm |
| Responsetime | Max response time is two-times scanning cycle add 2ms of date processing |
| Fault marking &alarm function | When there is no more than two continuous optical axis break down (polluted,covered by birds or bad dot),the system will detect breakdown and shield the optical axis automatically in the scanning process ,the system still keep normal working and meanwhile sent out alarm signal(the yellow LED turn on ),as soon as the fault is cleared, alarm signal will quit automatically. |
| ProtectionRating | IP67(IEC) |
| HousingMaterial | Aluminium alloy oxydic black housing,heated glass window |
| Working Environment | Temperature:-40~80ºC;Max humidity:0~95%RH;vibration:0~100Hz; accelerated speed:98m/s²,10g; Impact:4.1Jouses,3ft,-1b; lightning protection resistance:≤4Ω;Anti-interference>50000Lux |
| Service Life | >10 years,MTBF≥100,000h |
