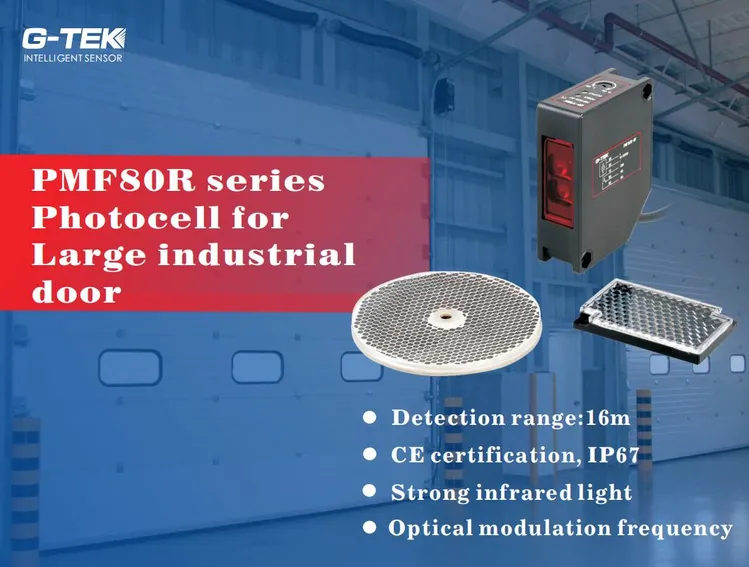

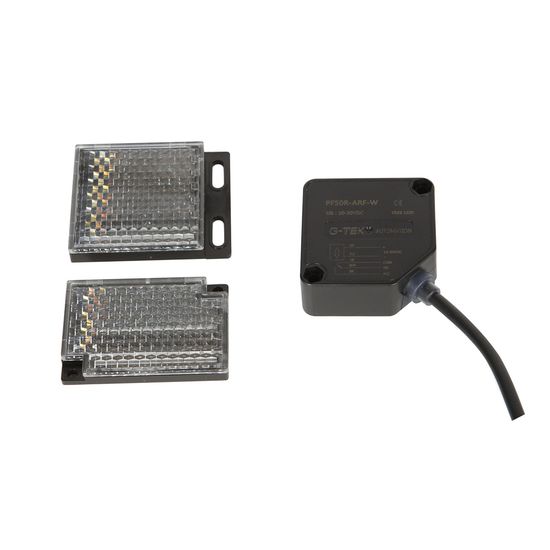

PMF80R-RF-2 laser retro-reflective sensor with long detection range for large industry door and hangar door .
1 Visible red class2 laser 2 laser beams with good directivity, easier for alignment and debugging;
2 Excellent optical performance, sensing rang as far as 16m;
3 Non-sphere optical lens totally eliminate stray light and overcome the interference from such light source as sunlight;
4 Able to detect working status by red LED indicator, which makes installation easy;
5 Light on/ Dark on options;
6 Protection grade is IP65;
| Photoelectric sensor | PMF80R-RF |
| Detection Type | Retro-reflective |
| Detection Object | MinΦ60mm opaque object |
| Detection Range | 16m |
| Light Source | Laser tube (wave length: 650nm) |
| Supply Voltage | 10~30V DC |
| Un-load current | Max.60mA |
| Response Time | Max.20ms |
| Action Mode | Selecting Light On or Dark On by potentiometer |
| Control Output | Relay output,(contact rating: 30VDC 1A resistance load, 120VAC,1A resistance load,contact component: 1C) |
| Indicator | Power indicator: green;action indicator: red |
| Protection Circuit | Over-voltage,over-current protection and reverse polarity protection |
| Ambient lightness | Sunlight: Max.60000Lux fluorescent: Max.3000Lux |
| Ambient Temperature | -30~+65ºC(Non-freezing) |
| Ambient Humidity | 0~90%RH |
| Material | Housing:ABS,Lens:PMMA |
| Cable | Emitter: Φ 5, 5×0.2mm² |
| Protection Rate | IP67 |
| Accessory | Screw: M4x30, Bracket: IB08 |
