The PF21 series of mini-type photoelectric sensors is a new and upgraded product. It includes through-beam, polarized reflective, and diffuse types of sensors
Features:
1. Polarization function, anti-interference strong
2. Laser-like pinpoint-LED light source technology, brighter and more accurate light point
3. Resistant to ambient light, no crosstalk problem
4. Compact size, easy to install
5. Metal threaded mounting holes for stable installation

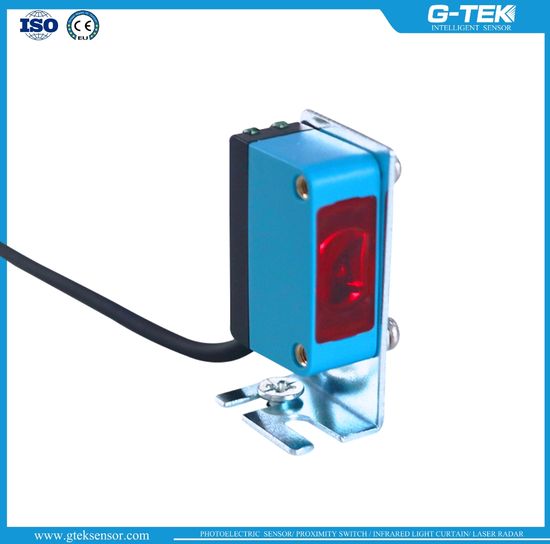

| PF21R Retroreflective Photoelectric Sensor | ||
| Model | PF21R-150A | PF21R-350A |
| General parameters: | ||
| Working Principle | Mirror type | |
| Sensing Range | 4m | |
| Light Source | PinPoint-LED, visible red light | |
| Wavelength | 630nm | |
| Spot Diameter | Φ100mm @4M | |
| Minimum Detector | Opaque objects with Φ40mm and above | |
| Electronic Parameters: | ||
| Operating Voltage | 10~30VDC | |
| No-load current | Emitter <20mA; Receiver <15mA | |
| Output Current | <100mA | |
| Response time | <1.25ms | |
| switching frequency | 400Hz | |
| Mode of Action | Light on, dark on, light/dark on switching, according to model selection | |
| protection circuit | Reverse polarity protection, short circuit protection | |
| Indicator | Power is the green indicator, output is the yellow indicator | |
| Control output | Transistor output, NPN/PNP according to model selection | |
| Mechanical parameters: | ||
| Appearance Size | 12mm×32.5mm×21.5mm | |
| Connection Type | 2m cable; M8 connector; The M8 connector with 300mm cable | |
| Environmental Parameter: | ||
| Ambient brightness | Sunlight 100000Lux; Incandescent lamp 3000Lux | |
| Operating Temperature | -25~55ºC | |
| Storage Temperature | -30~70ºC | |
| Protection rating | IP67 | |
| Model | ||
| Installation method | Product model | Detection distance |
Retro-reflective | PF21RS-ND | 0.1-4m |
| PF21RS-NL | 0.1-4m | |
| PF21RS-NF | 0.1-4m | |
| PF21RS-PD | 0.1-4m | |
| PF21RS-PL | 0.1-4m | |
| PF21RS-PF | 0.1-4m | |
Product self-inspection steps
1. Detect whether the installation position of the object and the proximity sensor has deviated, slacked, or skewed; whether there is slack, poor contact, or disconnection in the wiring and connection parts2. Whether there is adhesion or accumulation of metal dust, etc.
3. Is there any abnormality in using temperature conditions and environmental conditions?
4. Set whether the flashing of the display lamp type is abnormal.
Suppose you must be careful not to disassemble and repair by yourself during the inspection, and to easily find out the fault. In that case, you can investigate the operating state of the sensor through the connection with the portable detector, and then repair it according to the situation.
In order to make the photoelectric sensor work stably for a long time, it should be regularly checked with the same contents as the general control equipment to maintain its long-term function. The photoelectric sensor can also be stocked. Once a problem with the photoelectric sensor is found, we can replace it in time without affecting the use of the sensor.
