HDWS-774H372M1-10W
1 Year
Car, SUV, Truck, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, RV, Forklift, Harvester, Corn Machine
Alloy
Reverse Image
Air Plug
Night Vision, with Gauge, Waterproof, Dustproof, Shockproof
1080P
CMOS
IP69K
1024RGB(H) X 600(V) DOT
Single LED 600CD/M2 Brightness
1/2.9 Color DSP
100m
1080P
PAL:1280(H)X960(V)
1lux
80
Veise, OEM
Gift Box
(207X149.5X85)mm(without mounting)
Guangzhou, China
8528591090
Product Description
Wireless 2.4G HD Forklift Camera System with 7 Inch Monitor and Removable Sun Visor
(HDWS-774H372M1-10W)
7-inch digital screen monitor
Built-in 2.4GHz digital wireless video signal receiver
Multi-frequency hopping frequency automatic code matching, good anti-channeling interference, open transmission distance 100 meters
Automotive industrial grade -40°~85° digital video processor
Graphical OSD menu to set the screen mirroring and front image, reversing ruler, trigger priority application functions
Independent design appearance patent, the shell is made of ABS+PC material, which has the characteristics of high temperature resistance
Detachable sun visor to prevent sunlight from affecting the display screen effect
The bracket is made of anti-rust metal material, U-shaped + bilateral fastening anti-seismic design
1024RGBX600 high resolution and 600cd/m2 high brightness, clear images
Load dump pulse voltage DC24V+174V (350ms) designed to protect the vehicle from transient pulse damage
DC8~32V wide range working voltage
Built-in external power supply reverse polarity protection, LED thermal response, constant current and constant voltage protection, service life circuit design
Multi-frequency hopping frequency automatic code matching, good anti-channeling interference, open transmission distance 100 meters
Automotive industrial grade -40°~85° digital video processor
Graphical OSD menu to set the screen mirroring and front image, reversing ruler, trigger priority application functions
Independent design appearance patent, the shell is made of ABS+PC material, which has the characteristics of high temperature resistance
Detachable sun visor to prevent sunlight from affecting the display screen effect
The bracket is made of anti-rust metal material, U-shaped + bilateral fastening anti-seismic design
1024RGBX600 high resolution and 600cd/m2 high brightness, clear images
Load dump pulse voltage DC24V+174V (350ms) designed to protect the vehicle from transient pulse damage
DC8~32V wide range working voltage
Built-in external power supply reverse polarity protection, LED thermal response, constant current and constant voltage protection, service life circuit design
Car regulation DSP million high-definition pixels
Heat-dissipating aluminum alloy case
Nitrogen filling anti-fogging, waterproof IP69K (patented waterproof testing equipment)
The built-in IR-CUT filter corrects the color cast during the day and improves the brightness at night
Mobile rechargeable power supply
Rechargeable mobile power bank Panasonic original battery is safe and efficient, built-in short circuit protection
Constant current and constant voltage circuit design to extend service lifeOvercharge and overdischarge protection circuit design
Adopting a magnetic installation design, which can be installed in any vehicle position
Waterproof grade IP66
10800P Forklift Wireless Camera System
| 1080P Digital Wireless Receive Monitor(Model:MWHD-774H) |
| 7" HD Screen Monitor with Removable Sun Visor |
| Built in 4 CH 2.4GHz Digital Wireless Receiver |
| Operation Frequency:2400 ~ 2483.5MHz |
| Receiving Sensitivity:≤-86dBm(1MHZ QPSK MD300RE) |
| Overlapping Hopping Channel:80 |
| Color System:PAL/NTSC |
| Display Resolution: 1024RGB(H) X 600(V) dot |
| Wide view angle(CR>10):(up/ down): 50/70 (left/right): 70/70 |
| Back-light : Single LED 600cd/m2 Brightness |
| Contrast ratio: 500:1 |
| Operating temperature: -20ºC to +70ºC |
| Storage temperature: -30ºC to +80ºC |
| Free Operating Voltage: DC8~32V |
| External dimensions:L*W*T(207X149.5X85)mm(without mounting) |
| Weight Approx: 600g |
| 1080P Aluminum Alloy Camera(MODEL:CWHD-372M) |
| Image Type: 1/2.9 Color DSP |
| Built in 2.4GHz Digital wireless transmitter |
| Transmission Power:18dBm with Power control |
| Line of Sight Range:≤100M |
| Horizontal Resolution:1080P |
| Effective pixel:PAL:1920(H)X1080(V) |
| Usable Illumination : 1Lux |
| Free viewing angle: 80° |
| Waterproof: IP69K |
| Shockproof: 10G |
| Free Operating Voltage: DC12 Volts for power bank |
| Dimensions: 88.5(W) x 52.5(H) x 109(D) mm (without mounting) |

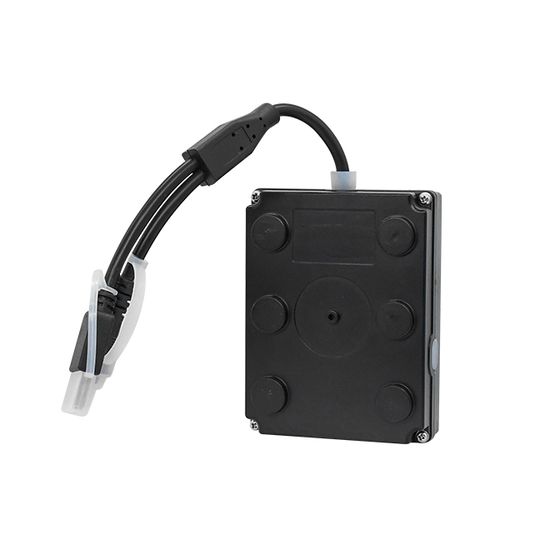

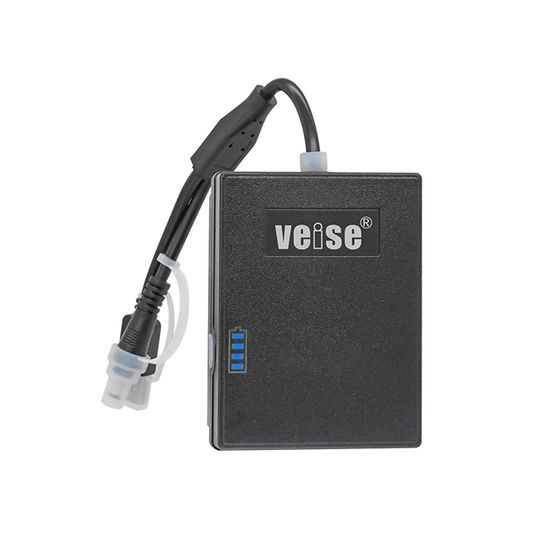

| DC12 Mobile Power (MODEL:MP-01A10W1) |
| Type Batteries:Li-ion batteries (Panasonic original import) |
| Capacity:10000mA |
USB input (support fast charge): 5V / (3.5A) -9V / (2A) -12V (1.5A) |
| DC Output::12V(0.8A) |
| Charging times:> 800 cycles |
| Charge / Discharge Interface:Charge:USB male/Discharge:DC2.1 * 5.5 male |
Shockproof Level:6G |
Waterproof Level:IP66 |
| Charging Working Temperature: 0 ºC to + 40ºC |
| Discharge Working Temperature:-20ºC to + 60 ºC |
| Storage Temperature:-40 ºC to + 60 ºC |
| Dimensions (mm):95mmX72mmx29mm (without tails) |
| Weight (g):280g |
| Fitting:Charging cable ,manual,External magnetic (optional) |
| Accessories |
| U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,Antenna*1,User's Manual |
