1031.105
Vehicle Fence
Aluminium
Obstruction
100*100
Expansion Bolts
Flexible Barrier
6m
2-6 Seconds
SAFEDOOR
Pallet
CE/LVD
Hangzhou, China
Product Description
The boom gate is an indispensable part of the parking lot system. It helps to manage the vehicles to enter and exit the parking lot in an orderly manner. It is a channel entrance and exit management equipment specially used to restrict motor vehicles on the road. It is widely used in highway toll stations and parking lots. The entrance of the community, enterprises and institutions to manage the access of vehicles. The boom gate is installed at the entrance and exit of the parking lot and is an electromechanical integration product. At present, our gates have been increasingly developed to high-tech to adapt to the market demand for products.

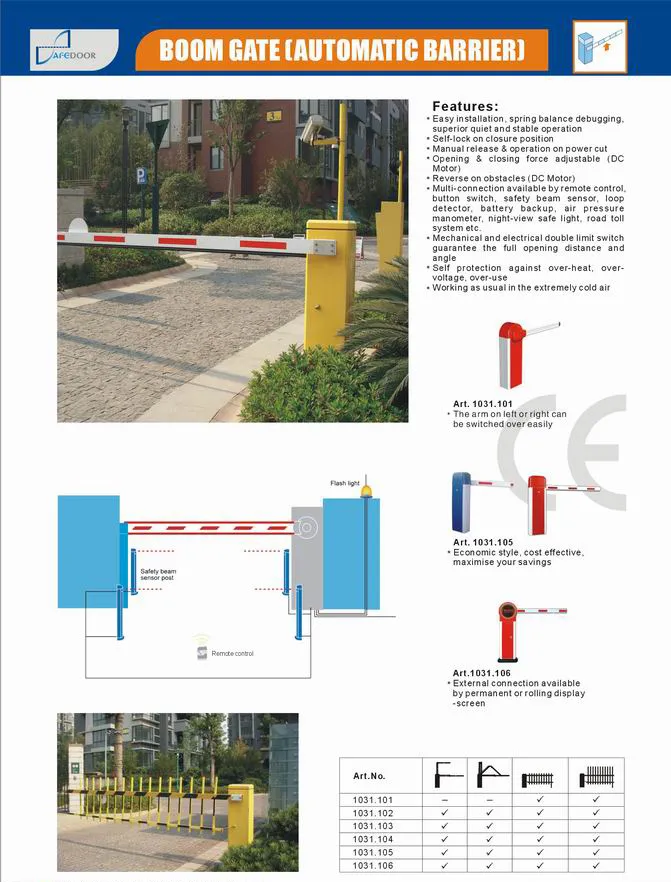

Automatic barrier/ boom gates Art. 1031.105
*Economic style, cost effective, maximise your savings
*Easy installation, spring balance debugging, superior quiet and stable operation
*Self-lock on closure position
*Manual release & operation on power cut
*Opening & closing force adjustable (DC Motor)
*Reverse on obstacles (DC Motor)
*Multi-connection available by remote control, button switch, safety beam sensor, loop detector, battery backup, air pressure manometer, night-view safe light, road toll system etc.
*Mechanical and electrical double limit switch guarantee the full opening distance and angle
*Self protection against over-heat, over-voltage, over-use
*Working as usual in the extremely cold air
Technical parameter:
Automatic barrier/ boom gates Art. 1031.105
*Economic style, cost effective, maximise your savings
*Easy installation, spring balance debugging, superior quiet and stable operation
*Self-lock on closure position
*Manual release & operation on power cut
*Opening & closing force adjustable (DC Motor)
*Reverse on obstacles (DC Motor)
*Multi-connection available by remote control, button switch, safety beam sensor, loop detector, battery backup, air pressure manometer, night-view safe light, road toll system etc.
*Mechanical and electrical double limit switch guarantee the full opening distance and angle
*Self protection against over-heat, over-voltage, over-use
*Working as usual in the extremely cold air
Technical parameter:
| Specification | 1031.101 | 1031.103 | 1031.102 & 1031.104 & 1031.105& 1031.106 | |||
| Motor power(W/V) | 80/24 DC | 90/ AC | 80/24 DC | 90/ AC | 80/24 DC | 90/ AC |
| Input voltage(VAC, 50/60Hz) | 110/220 | |||||
| Water proof(IP) | 44 | |||||
| Opening/closing time(s) | 2 (for 1-3M) ;3(for 4M) ;6 (for 5-6M) | |||||
| Ambient temperature(ºC) | -20~+50 | |||||
| Straight arm (max)(m) | 6 | 8 | 6 | |||
| Folding arm (max)(m) | - | 5 | ||||
| Fence (max)(m) | 5 | |||||
