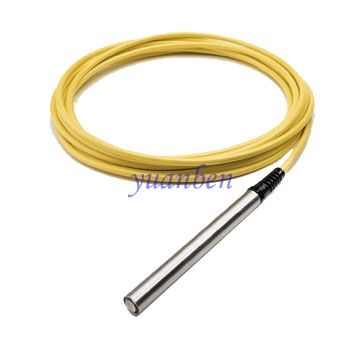

Digital Temperature Sensor(TSD-R-1-45-2-200)
Parameter
Overview
Digital Temperature sensor is a structural refinement compact,four-wire,series output high-precision temperature sensor. The sensor offers resolution down to 0.0625ºC.
Digital temperature sensor is ideal for extended temperature measurement in communication, computer, consumer,environmental, industrial, and instrumentation applications. The sender is specified for operation ever temperature range of -40ºC to +125ºC. Digital temperature sensor small size, short response time, structural waterproof, protection call IP67.
Digital temperature sensor is mainly used in portable and battery-power, Battery Management system.
Features and Applications:
Features:
10μA Active(max),1μA Shutdown(max),
3.Supply Range:1.4V to 3.6V.
4.Resolution:12 bits.
5.Digital Output:
Four-wire series output.
Applications:
Portable and Battery-Powered Applications
Power-Supply Temperature Monitoring
Computer Peripheral Thermal Protection
Battery Management system
Office Machines
Thermostat Controls
Electromechanical Device Temperatures
General Temperature Measurements:
Industrial Controls
Test Equipment
Medical Instrumentation
Performance:
Pin Attribute
Parameter
Overview
Digital Temperature sensor is a structural refinement compact,four-wire,series output high-precision temperature sensor. The sensor offers resolution down to 0.0625ºC.
Digital temperature sensor is ideal for extended temperature measurement in communication, computer, consumer,environmental, industrial, and instrumentation applications. The sender is specified for operation ever temperature range of -40ºC to +125ºC. Digital temperature sensor small size, short response time, structural waterproof, protection call IP67.
Digital temperature sensor is mainly used in portable and battery-power, Battery Management system.
Features and Applications:
Features:
- Accuracy without calibration:
- 0.5ºC(max)from 0ºC to +65ºC
- 1ºC(max)from -40ºC to +125ºC
10μA Active(max),1μA Shutdown(max),
3.Supply Range:1.4V to 3.6V.
4.Resolution:12 bits.
5.Digital Output:
Four-wire series output.
Applications:
Portable and Battery-Powered Applications
Power-Supply Temperature Monitoring
Computer Peripheral Thermal Protection
Battery Management system
Office Machines
Thermostat Controls
Electromechanical Device Temperatures
General Temperature Measurements:
Industrial Controls
Test Equipment
Medical Instrumentation
Performance:
| Project | Technical Parameter |
| Interface | 4-wire series output |
| Detect temperature Resolution(ºC) | 0.0625 |
| Operating temperature Range(ºC ) | -40~+125 |
| Supply Voltage(max)(V) | 3.6 |
| supply voltage(min)(V) | 1.4 |
| Supply Current(max)(μA) | 10 |
| supply Current(min)(μA) | 7 |
| Long-term stability(hour) | 3000 |
| Cable specification | AWG28(can be Customized) |
| Cable length(mm) | 240(can be Customized) |
| Protect Class | IP67 |
| Houswing material | SUS304 |
| Cable and color | Signal description |
| Green line | SCL |
| White line | SDA |
| Red line | VDD |
| Black line | GND |
| shield | Connected/not connected |
