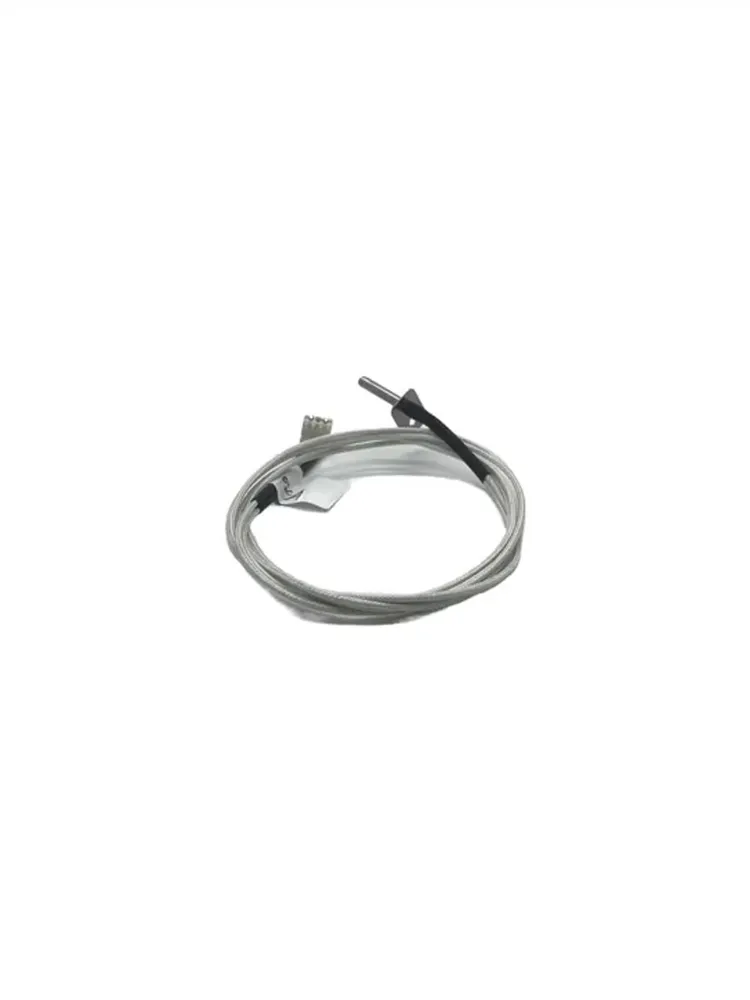

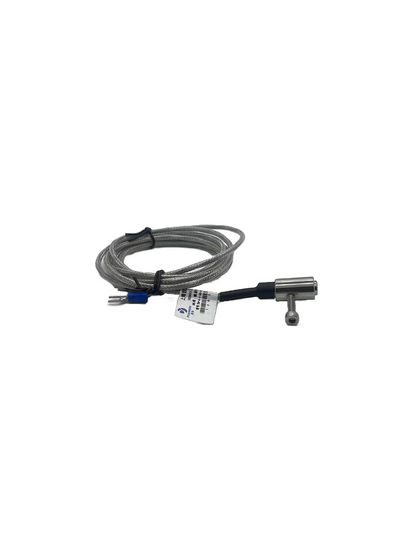

TSP-011
Tee Type
PT 100, PT1000
Contact
Analog Type
Integration
Stainless Steel
Temperature
IP65
RoHS
Non-Customized
Yuanben
Export Package
stainless steel mateiral
China
9026100000
Product Description
Description
Pt100 Temperature sensors have various technical data according to accuracy and have different shapes. Pt100 sensors are usual with kinds housing of stainless steel probes for insertion into processes. The length of housing and mounting threads can be selected by client. It is used in many fields in the industry and in household equipment for temperature measurements in water and under pressure up to 175 bars. Such as Home appliances(ovens,refrigerators,air-conditioner),cars(engine, car interior),processing industries (plastic,food ,chemical, car, electronics industries),domestic and industrial heating facilities.
Sensitivity: 0.00385 ohm/ohm/°C. Accuracy:+0.02 °C from -2 to +38°C,+0.1°C from -10 to +180°C Response time(in water)100 m sec. -63 %(flow 1m/sec.)Response time(in air): 3 sec. -63%(flow 1m/sec.) Repeatability:+0.04°C or better. Stability: drift less than +0.05°C over 1 year. Overload: 250°C. Depth:250 psi. Vibration-Shock: 10 to 2000 Hz-10G-50G in 8 m sec. Cable UL2464 AWG24 with metal. Operating Temperature -20°C to +180°C(Ask for special calibration). Electrical Connector According to client required.
Physical information:
•Probe length(mm): 105mm. (or client requirement)
Diameter(mm):Ø6.0 mm(or client requirement)
•Housing material of sensor: SUS316 or SUS304 Stainless steel or brass pipe
•Operating Temperature: -20°C to + 180°C
•Storage Temperature: -40°C to + 225°C.
•Mounting thread: M8 thread (or client requirement).
•Cable: UL2464 AWG24 with metal(or client requirement)
Pt100 Temperature sensors have various technical data according to accuracy and have different shapes. Pt100 sensors are usual with kinds housing of stainless steel probes for insertion into processes. The length of housing and mounting threads can be selected by client. It is used in many fields in the industry and in household equipment for temperature measurements in water and under pressure up to 175 bars. Such as Home appliances(ovens,refrigerators,air-conditioner),cars(engine, car interior),processing industries (plastic,food ,chemical, car, electronics industries),domestic and industrial heating facilities.
Sensitivity: 0.00385 ohm/ohm/°C. Accuracy:+0.02 °C from -2 to +38°C,+0.1°C from -10 to +180°C Response time(in water)100 m sec. -63 %(flow 1m/sec.)Response time(in air): 3 sec. -63%(flow 1m/sec.) Repeatability:+0.04°C or better. Stability: drift less than +0.05°C over 1 year. Overload: 250°C. Depth:250 psi. Vibration-Shock: 10 to 2000 Hz-10G-50G in 8 m sec. Cable UL2464 AWG24 with metal. Operating Temperature -20°C to +180°C(Ask for special calibration). Electrical Connector According to client required.
Physical information:
•Probe length(mm): 105mm. (or client requirement)
Diameter(mm):Ø6.0 mm(or client requirement)
•Housing material of sensor: SUS316 or SUS304 Stainless steel or brass pipe
•Operating Temperature: -20°C to + 180°C
•Storage Temperature: -40°C to + 225°C.
•Mounting thread: M8 thread (or client requirement).
•Cable: UL2464 AWG24 with metal(or client requirement)
