DTS-004
Tee Type
Resistive
Contactless
Digital Type
Normal Wirewound
SUS304
Temperature
IP67
RoHS
Non-Customized
yuanben
Carton
China
9026100000
Product Description
Parameter
Brief Introduction

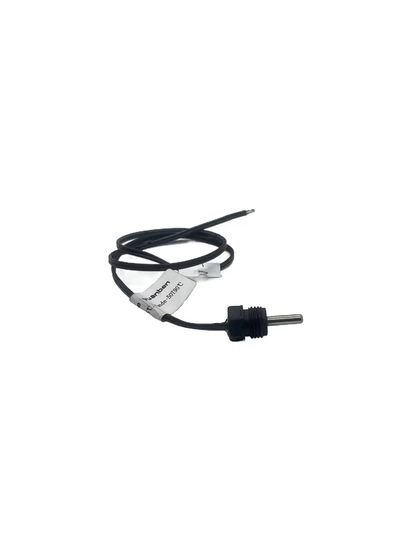

Our newly developed DTS-01digital temperature sensor is made of DS18820 sensor core, with ±0.5 °C accuracy over a -10°C to +85°C range, testing range from -50°C to +155 °C......
The unique single-wire interface mode, DS1820 only needs a port line to realize the bidirectional communication between the microprocessor and DS1820 when connected to the microprocessor. All digital temperature sensors have numbers, and the temperature acquisition device identifies the corresponding temperature sensor through the number, and supports the one-line bus interface (1-wire).
Brief Introduction Our newly developed DTS-01digital temperature sensor is made of DS18820 sensor core, with ±0.5 °C accuracy over a -10°C to +85°C range, testing range from -50°C to +155 °C......
The unique single-wire interface mode, DS1820 only needs a port line to realize the bidirectional communication between the microprocessor and DS1820 when connected to the microprocessor. All digital temperature sensors have numbers, and the temperature acquisition device identifies the corresponding temperature sensor through the number, and supports the one-line bus interface (1-wire).
| Specification of Digital Temperature sensor | |
| Item | Parameter |
| Sensor | DS18B20 digital sensor |
| Testing accuracy | ±0.5ºC(in -10~+85ºC range) |
| Testing temperature range | -55ºC~+125ºC |
| Temperature resolution | 12 bit (0.0625ºC_ |
| Speed of testing temperature | 750ms(12 bit resolution) |
| Power | 3V-5.5V |
| Cable | Three core shielded cable |
| The length of cable | >300m |
| Working ambient temperature | -55ºC~+125ºC |
| Dimension | ∲6mm |
| Material | SUS304 |
