ps-033
Piezoresistive Pressure Sensor
Mechanical Structure Type
Diffused Silicon Pressure Transmitter
Digital Type
Integration
Stainless Steel
M
Two-Wire
Liquid
IP65
ISO
Customized
Yuanben
Bubble Bag
Shanghai
9026100000
Product Description

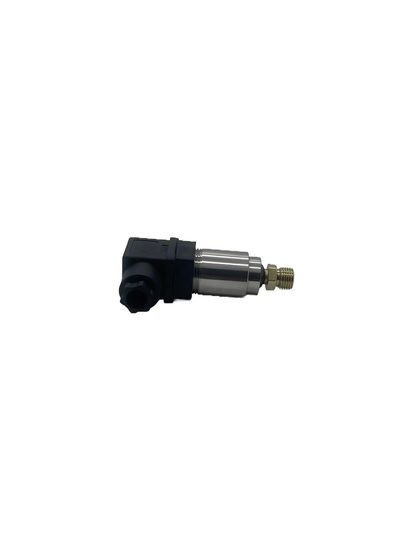

product brielf:ps-033 pressure sensor
| Main material | ||
| Shell material | Reinforced Nylon 66 | |
| Pressure chamber material | Bronze(5-5-5 Tin bronze) | |
| Film Material | Nylon 66 or polyester | |
| Switch Form | Normally open(Automatic Reset) | |
| Microswitch electrical parameter | ||
| Electric current | 3A | |
| Electric voltage | 125Vac~250Vac | |
| Pressure regulation range | ||
| Fixed-point pressure setting range | 0.01bar~0.2bar | |
| Maximum working pressure | 2bar | |
| Connector dimensions | M12×1.25 | |
| working temp. | -20ºC~100ºC or -40ºC~125ºC | |
| circumstance temp. | -20ºC~85ºC | |
For more information, please inquire Online
