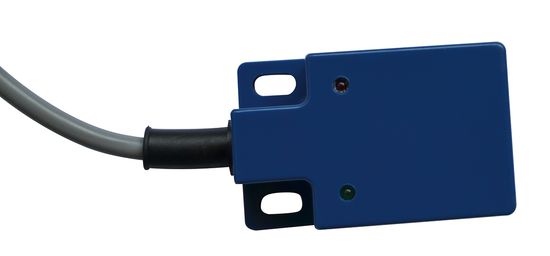

Magnetic Address Reader Sensor (MAR-2A) for Agv

MAR magnetic Address Reader is developing by Shanghai yuanben magnetoelectricech. Co., Ld., used for AGV. The reader and magnetic guidance sensor consist a key controller unit of AGV, our magnetic guidance sensor MGS-01 with a step analog voltage output, MGS-R16 with 16 bit digital switches output, and magretic Address Reader MAR-2A, MAR-4A, MAR-8 A are widely applied to AGV.
Our high quality sensor and good credit have made us the supplier of many abroad and domestic famous enterprises, such as Toyota of Guangzhou etc.
Feature
*the Reader is output 2 bit or 4 bit or 8 bit ( switches )digital signal real-time output.
* current output is over 100mA.
* width power volage is 10-30Vac
*the sructure of reader is compact, small , and using simple.
*sensing distance is over 15 mm

Technical Data

Reader Model	MMR-2	MMR-4	MMR-8
Sensiivity	0.5mT±0.1 mT	0.5mT±0.1 mT	0.5mT±0.1 mT
Output Signal	NPN,30Vac,100mA	NPN,30Vac,100mA	NPN,30Vac,100mA
Power Supply	10-30Vac,15mA	10-30Vac,15mA	10-30Vac,15mA
Sensing Distance	20-30mm	20-30mm	20-30mm
Model of Magnetic address Mark	MAM-4	MAM-4	MAM-256
Response ime	10ms	10ms	10ms
IP class	IP-54	IP-54	IP-54
Digital output	2 bit	4 bit	8 bit
Housing Material	PBT plastic	PBT plastic	PBT plastic
Cable	As required
Electrical Terminal	AMP
Ambient temperature	-40ºC~80ºC	-40ºC~80ºC	-40ºC~80ºC
