TECHNICAL DATA :
| Model | 7801 3.5T | 7801 4.0T |
| Lifting Capacity | 3,500kgs (8,000LBS) | 4,000kgs (9,000LBS) |
| Lifting Time | ≤50S | ≤50S |
| Lifting Height | 1850mm (72 7/8") | 2040mm (80 5/16") |

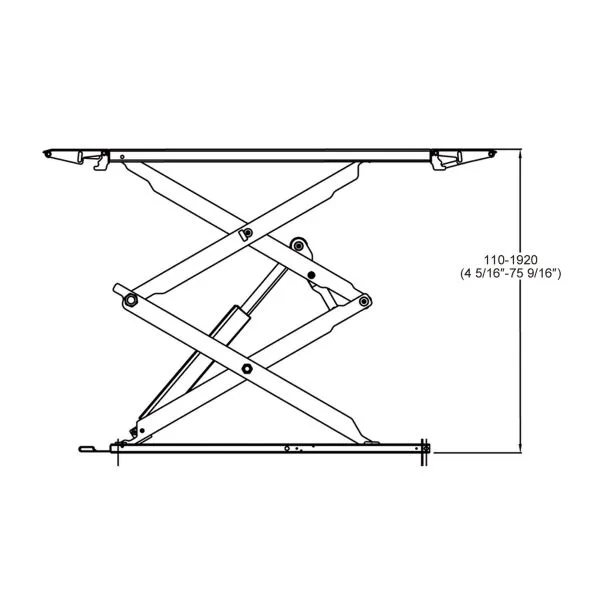

| Minimum Height | 110mm (4 5 /16") | 110mm (4 5 /16") |
| Runway Length | 1465mm (57 11/16") | 1465mm (57 11/16") |
| Overall Length (Inc.Ramps) | 2085mm (82 1/16") | 2085mm (82 1/16") |
| Runway Width | 650mm (25 5/8") | 650mm (25 5/8") |
| Shipping Weight | 888kgs (2,013LBS) | 973kgs (2,145LBS) |
| Motor Power | 2.2KW (3HP) | 3.0KW (4HP) |
PRODUCT INTRODUCTION
- 3,500Kg (8,000LBS.) lifting capacity.
- 2-Dual synchronous cylinders are applied to assure the lifting level on both platforms.
- Durable cylinders with anti-surge valves.
- Pneumatic or electrical safety lock release system.

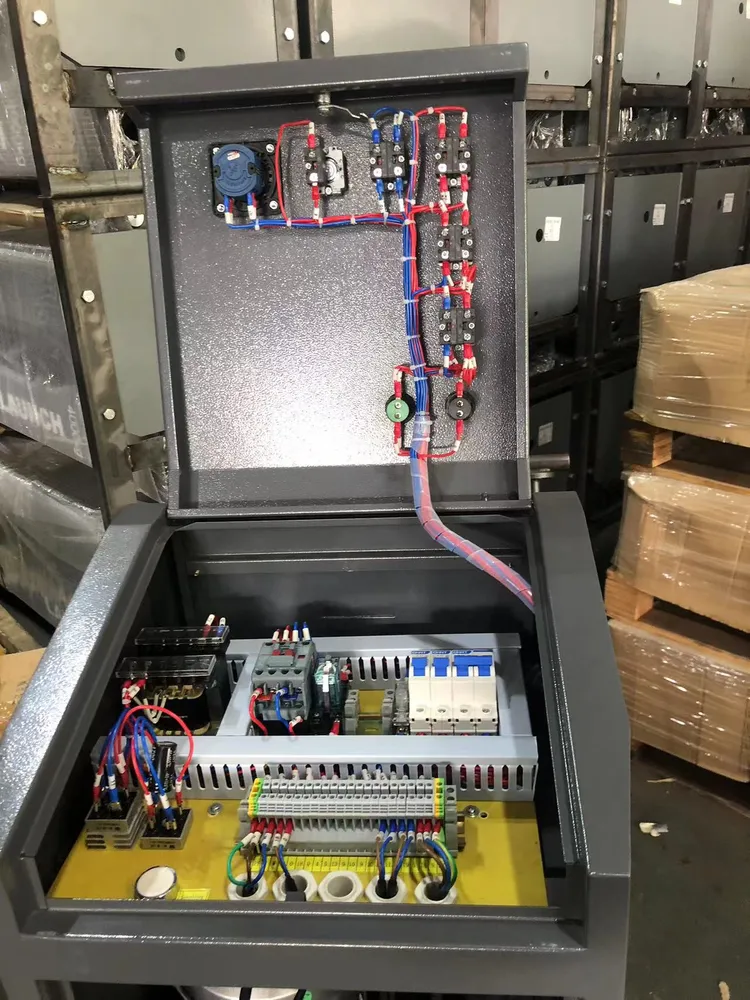

- 24volt electrical control system.
- Self-lubricated bushing and bearing.
- Low profile design, min height is only 110mm (4 5/16").
- Standard with height limit switch.
- Standard with aluminum motor power unit.
- CE approval.
- Portable design and the lift can be moved easily.
- The scissor arm is cut by the whole high quality alloy steel plate, and the mounting holes of the scissor arm are welded sleeve, which can ensure the rigidity and strength of the equipment.
- The joint of hydraulic cylinder is equipped with anti-hose burst throttle valve, which can prevent accidents caused by hose burst.
- The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
- Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
OUR FACTORY
Warranty term:
Our products are warranted for one years on equipment structure, to be free of defects in material and workmanship.
Motors, gear box, power units, hydraulic cylinders, and all other assembly components such asturnplates, slip plates,
Cables, chains, valves, switches etc, are warranted for one year against defects in material or workmanship under normal use.
Our Services
Our Company will be Provide to you some Service.
1. OEM ODM service.
2. Customized service.
3. One Year Quality warrant service, during the period spare part supplied free
if you pay for shipping.
4. Professional team supply service for life long time.
FAQ
The Some buyer maybe ask ?
A:You Are Trade Company or Factory?
A: We are manufacturer and we have our own trade company.So pls don`t worry.
B: How long the production can be delivered?
A: Commonly the lead time will be within 15 days after receiving 30% deposit or L/C,
subject to prior sales.This ways based on 1 20FT Containers or 40HQ Container.
C: What is the regular color? Can I order special color which I like?
A: The regular color is Blue, Red, Yellow.
Yes, we can also produce machines with special color according to client's request.
D: Can I order in any special size?
A: Yes,you can.
The size is customized, but should be suitable for the inner size of containers.pls understand.
