D7006TGS
Spray Booth
CCC, CE, GS, SGS
Sandwich Panel
Captain
Powder Coating
Fully Undershot-type
Diesel
Dry-type
New
6900mmx3900mmx2700mm
7000mmx5350mmx3400mm
3-Folds:3000*2600mm
1-Fold: 750*2000mm
50mm Rock Wool, 0.4mm Steel
50mm EPS , 0.4mm Steel
1 Set 7.5kw Turbo Fan
1 Set 7.5kw Turbo Fan
Pneumatic
Diesel Burner
300mm High with 5 Rows Grids
2 PCS, 630X1800mm Long
32PCS LED Lights
White, Red, Blue, Grey, Orange
OEM/Captain
Export Container /Pallet /Disassembly with Carton
6900mmX3900mmX2700mm
Jiangsu, China.
8424899990
Product Description
We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more claerly about the spray booth /preparation bay / powder coating booth / baking oven you need .
1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
Same quality, our price is lower.
Same price, our quality is better.
We supply 2 years warranty!
This model is our luxury model,also we can design the booth according to your needs.
Detailed Specifications
| Item | Detailed specification | |
| Inside dimension | 6900×3900×2700 mm(L×W×H) | |
| Outside dimension | 7000×5350×3400 mm(L×W×H) | |
| Front door | Folding door, each set with 3 folds, 3000×2600mm,(WxH), metal sheet, color : blue, red, white, orange | |
| Emergency door | 1 unit, 750×2000mm(W×H), color: white | |
| Basement | Galvanized steel assemble, 300mm high, quadrate steel support, 5 rows grilles made by flat bar and twisted steel, 2 ramps, 630×1800mm/pc. | |
| Wall panel | Thickness: 50mm, width:950mm, tongue and groove structure, 0.5mm color steel with rock wool inside | |
| Light | Ceiling Lights: 8Units×4Pcs=32Pcs×16W, Side Lights: 10Units×2Pcs=20Pcs×16W, LED lights. The lighting boxes with powder coating. illumination≥1200Lux | |
| Generator cabinet | Intake from back upper, exhaust from back upper, white coated steel outside covered, galvanized steel inside, filled with heat preservation material inside. | |
| Intake and Exhaust system | Inlet: 1×7.5KW turbo fan, air capacity: 28000 - 30000 m3/h. | |
| Outlet: 1×7.5KW turbo fan, air capacity: 28000 - 30000 m3/h. | ||

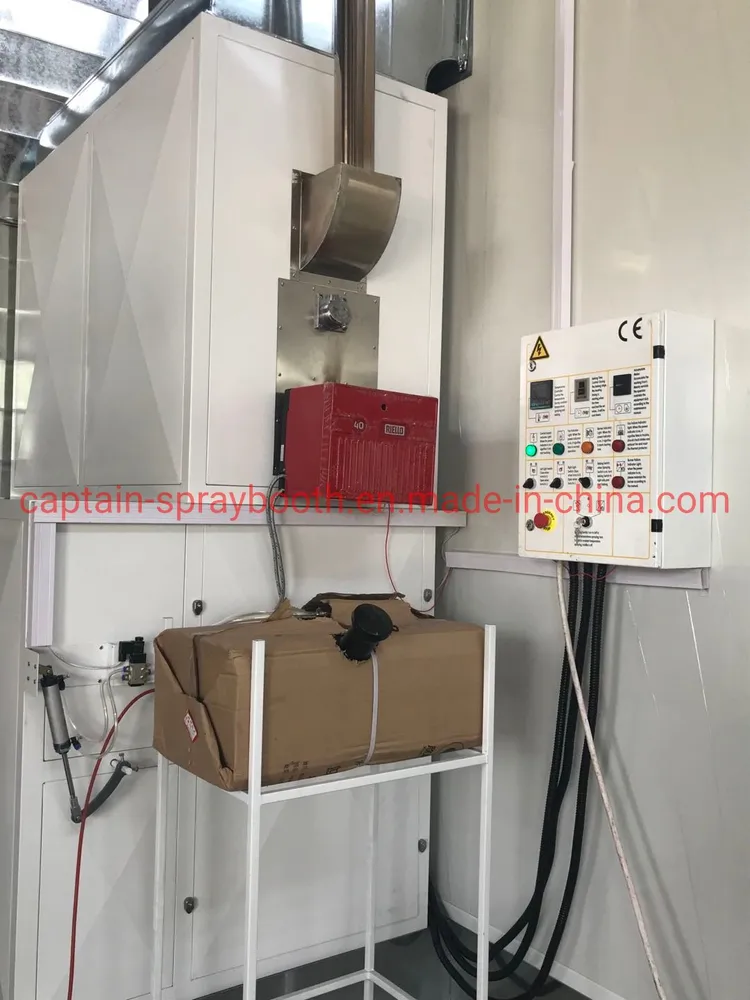

| Heating system | RIELLO G20diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 200000Kcal/h. | |
| Spray to baking switch | Auto Pneumatic damper | |
| Chimney ducting | 304 Stainless ducting and one safe fireproof chimney elbow. | |
| Purification system | Pre-filter, ceiling filter, fiberglass filter, activated carbon filter | |
| Roof | Thickness: 50mm, width:950mm, tongue and groove structure, 0.5mm color steel with EPS inside | |
| Control system | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, emergency stop, hour meter, temperature limit controller. | |
| Total power | 16 KW | |
Design drawing:
Real photos :
Materials
Production
Package and Delivery
Installation Draw
Workshop
| Delivery time : after received you payment ,we will produce , for this standard model , the delivery time is 2-3 weeks . |
| Payment term: 50% TT IN ADVANCE , 50 % before delivery |
| After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included) |
| when your workers unloading the goods, If they find something damaged during transit by sea, please take the pictures of the damage in the container and we will reissue you or give you some compensation. (Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record) |
Professional team from design to installation! Warmly welcome to visit our factory!
