CP-080503
Spray Booth
CE
Sandwich Panel
Captain
Painting
Fully Undershot-type
Diesel
Dry-type
New
8100X6350X3700mm(Lxwxh)
8000X5000X3000mm(Lxwxh)
4-Folds: 4000X2800mm (Wxh)
1-Fold: 750X2000mm (Wxh)
50mm EPS Panel with 0.5mm Steel
5 Rows Grilles
10 Units X 4PCS Ceiling Lights;10units Side Lights
1X7.5kw Turbo Fan
1X7.5kw Turbo Fan
Riello Rg5s Dissel Heating
OEM/Captain
Export Container /Pallet /Disassembly with Carton
CE, SGS
Jiangsu, China.
8424899990
Product Description

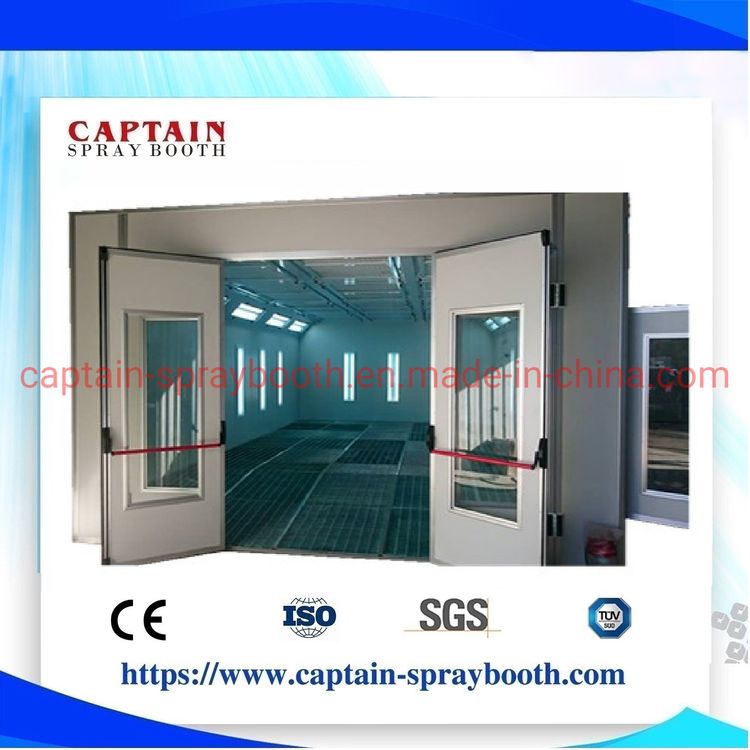

We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more claerly about the conbinetion spray booth /preparation bay you need .
This model is our Customized model,also we can design the booth according to your needs.
Detailed Specifications| Item | Detailed specification | |
| Inside dimension | 8000×5000×3000 mm(L×W×H) | |
| Outside dimension | 8100×6350×3700 mm(L×W×H) | |
| Front door | Folding door, 4 folds, 4000×2800mm,(WxH), metal sheet, color : blue, red, white, orange | |
| Emergency door | 1 unit, 750×2000mm(W×H), color: white | |
| Basement | Galvanized steel assemble, 300mm high, quadrate steel support, Build-in ramp , 5 rows grilles made by flat bar and twisted steel, | |
| Wall panel | Thickness: 50mm, width:950mm, tongue and groove structure, 0.5mm color steel with EPS inside, color: white.blue.orange.red | |
| Light | Ceiling Lights: 10Units×4Pcs=40Pcs×16W, Side Lights: 10Units LED panel lights. The lighting boxes with powder coating. illumination≥1000Lux | |
| Generator cabinet | Intake from side upper, exhaust from side bottom, white coated steel outside covered, galvanized steel inside, filled with heat preservation material inside. | |
| Intake and Exhaust system | Inlet: 1×7.5KW turbo fan, air capacity: 28000 -30000m3/h. | |
| Outlet: 1×7.5KW turbo fan, air capacity: 28000-30000m3/h. | ||
| Heating system | RIELLO RG 5Sdiesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 260000Kcal/h. | |
| Spray to baking switch | Auto Pneumatic damper | |
| Chimney ducting | 304 Stainless ducting and one safe fireproof chimney elbow. | |
| Purification system | Pre-filter, ceiling filter, fiberglass filter, activated carbon filter | |
| Roof | 0.8mm Galvanized steel | |
| Control system | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, emergency stop, hour meter, temperature limit controller. | |
| Total power | 16 KW | |
Design drawing:
Real photos :
Materials
Production
Package and Delivery
Installation Draw
Workshop
| Delivery time : after received you payment ,we will produce , for this standard model , the delivery time is 2-3 weeks . |
| Payment term: 50% TT IN ADVANCE , 50 % before delivery |
| After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included) |
| when your workers unloading the goods, If they find something damaged during transit by sea, please take the pictures of the damage in the container and we will reissue you or give you some compensation. (Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record) |
Professional team from design to installation! Warmly welcome to visit our factory!
