captain diesel model
Spray Booth
CE, Ce, ISO
Sandwich Panel
Captain
Painting
Fully Undershot-type
Diesel
Dry-type
New
7050 * 5400 * 3250(L*W*H)
6900 * 3900 * 2600mm(L*W*H)
3000*2600(W*H)
1800*750(W*H)
50mm EPS Panel, 0.326 Steel, 14kgs/M3
2X3kw for Intaking,
1X5.5kw for Exhausting
300mm Depth with Grids
Three 2000*900mm Ramps
Diesel Burner From Italy Riello
OEM/Captain
Export Container /Pallet /Disassembly with Carto
CE, SGS
China, Shandong
8424899990
Product Description
| Inside Dimension | 7000×4000×2650 mm(L×W×H) | |
| Outside Dimension | 8300×4100×3400mm(LxWxH) | |
| Front Door | 3000×2600 mm(W×H), 3 folds | |
| Service Door | 750×1800mm(W×H), 1 unit | |
| Basement | Galvanized steel, 300mm high, 2 rows of grilles and 3 rows of diamond plate; 2pcs painted ramps, 1pc stair. | |

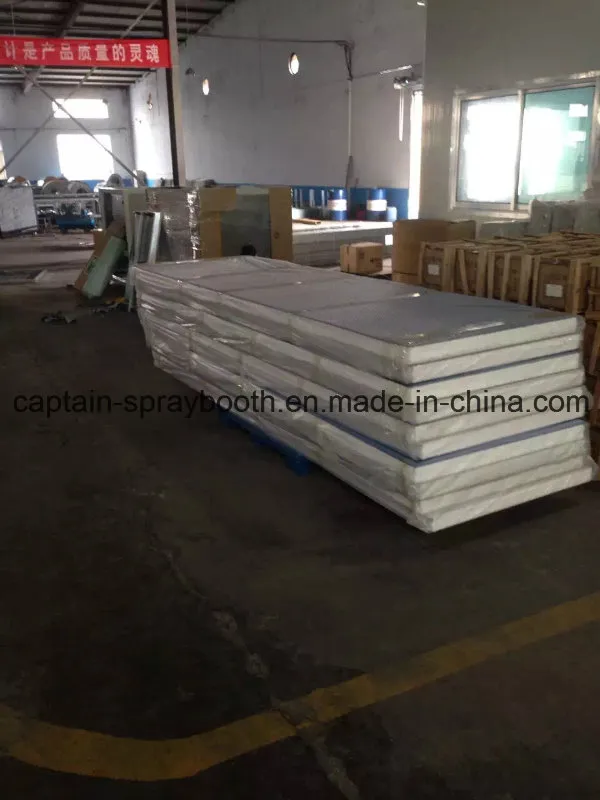

| Wall Panel | 50mm thick EPS panel with double 0.326 steels, width: 950mm, tongue and groove interlock structure. | |
| Intake&Exhaust System | Inlet: 2×1.5KW centrifugal fan, air capacity:18000m3/h. | |
| Lighting System | Ceiling Lights: 8units×4pcs=32pcs×36W, with electronic ballasts, illumination≥80 | |
| Heating System | 3kw x 8 groups of fixed short infrared lamps on both sides, total is 24kw. Max temperature: 80ºC | |
| Purification System | Pre-filter, ceiling filter, fiberglass filter, activated carbon filter | |
| Controlling System | spray&baking switch, time setting, lighting switch, temperature controller, power supply switch, emergency stop, breakdown alarm, etc. | |
| Total Power | 33 KW | |
| Optional | Wall Panel | 50mm thick rock wool panel with double steels 0.376/0.426mm |
| Side Lights | 10units×2pcs=20pcs×30w | |
| Exhaust | 1x4kw centrifugal fan | |
