TE4-0233
Yes
0
FCC, CE, RoHS, ISO
Car Battery Charger
Clip
OEM
120V /230V
12V
>75%
12V
-10-40
IP65
2A Trickle Charge ,12A Fast Charge
1 Year
2A /12A
75A
TONNY
Color Box
Color box size: 27.5x26.1x14.5CM
China
8504401990

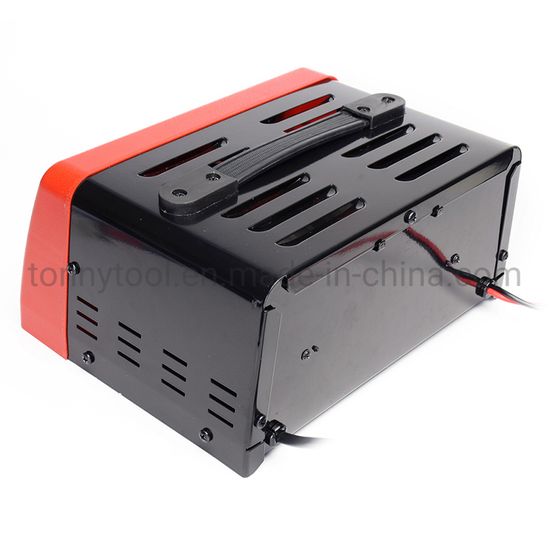

Product Description
DC 12V, 2A/12A/75A
Automatic Battery Charger/Engine Start
Charge Rate Selector Switch
Use the Charge Rate Selector Switch to select the charge rate or engine starting setting you require.
• 2A slow charge rate - Intended for charging small batteries such as those commonly used in garden tractors,
snow mobiles and motorcycles.
• 12A fast charge rate - Use for charging automotive, marine and deep-cycle batteries. Not intended for
industrial applications.
• 75A Engine Start - Provide additional amps cranking an engine with a weak or run down battery. Always use in
combination with a battery.
LED Indicators
• Full Charge - When lit, this LED indicates that the battery is fully charged and the charger has stopped
charging and switched to the Maintain Mode of operation
• Power On- When lit, this LED indicates that there is AC power supplied to the battery charger.
OPERATION INSTRUCTIONS
Specifications
Automatic Battery Charger/Engine Start
Charge Rate Selector Switch
Use the Charge Rate Selector Switch to select the charge rate or engine starting setting you require.
• 2A slow charge rate - Intended for charging small batteries such as those commonly used in garden tractors,
snow mobiles and motorcycles.
• 12A fast charge rate - Use for charging automotive, marine and deep-cycle batteries. Not intended for
industrial applications.
• 75A Engine Start - Provide additional amps cranking an engine with a weak or run down battery. Always use in
combination with a battery.
LED Indicators
• Full Charge - When lit, this LED indicates that the battery is fully charged and the charger has stopped
charging and switched to the Maintain Mode of operation
• Power On- When lit, this LED indicates that there is AC power supplied to the battery charger.
OPERATION INSTRUCTIONS
Specifications
| Model | TE4-0233 |
| Battery Type | 12V STD, GEL, AGM |
| Rated AC Input Voltage | AC105-125V, 60Hz or 220-240V, 50Hz |
| Max Output Voltage | 14.4V±0.3V |
| Charging Current | 2A/12A |
| Engine Start | 75A |
| Activated Voltage | 7.5V |
Protection | Overheat |
| Short Circuit | |
| Reverse Polarity | |
| Overcharge | |
| Housing Material | METAL + ABS |
| Charger Type | Transformer |
| Color | Customized |
| Certificate | cETL /CE-EMC/CE-LVD/ROHS |
| Weight | 3.75kgs |
| Size | 262x130 x200mm |
| Plug Standard | EU/AU/UK/US |
