K022
CCS/Chademo/Gbt
One Pile with Multiple Charges
Public Use
Floor Type
Quick Charge
Ocpp 1.6j
IP54
~-30c to +60c
CCS/Chademo/Gbt
4G/Ethernet/RFID etc
Sinray
Wooden Box
SK-EV-60/120/180/240KW
China
8504409990
Product Description

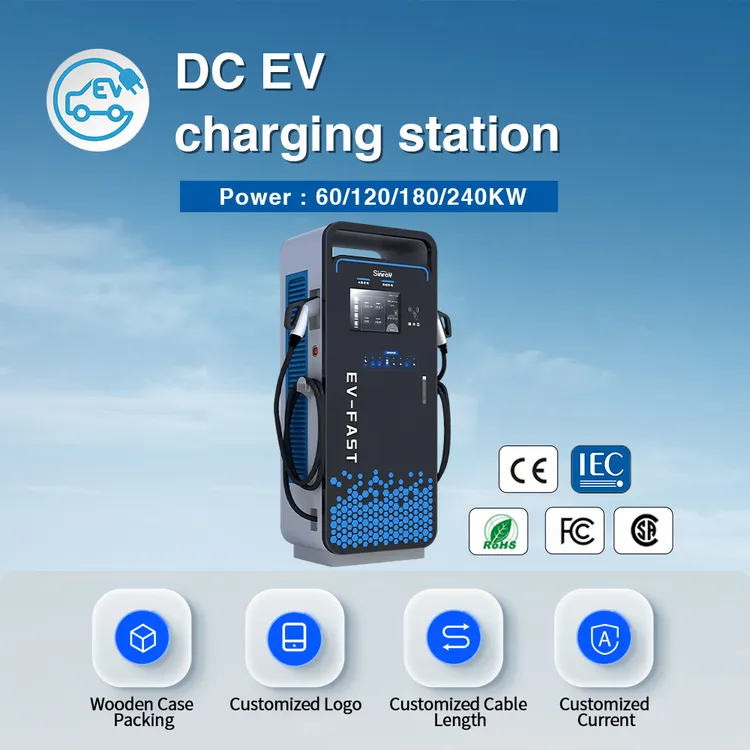

DC Charging station with double guns is a basic DC fast electric car charger. Easy installation, stable performance, complete protection function. The liquid crystal display can display the charging status for user's convenience. Support GSM/3G/4G/Ethernet communication with each other system, remote monitoring/maintenance/upgrade. The charger can be selected for installation in outdoor equipment.
| Power: | DC 80KW | DC 120KW | DC 180KW | DC 240KW |
| Input Voltage: | AC(380V±20% 3 Phase | AC(380V±20% 3 Phase | AC(380V±20% 3 Phase | AC(380V±20% 3 Phase |
| Rated output voltage: | DC200-750V | DC200-750V | DC200-750V | DC200-750V |
| Frequency: | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz |
| Cable Length: | 5m | 5m | 5m | 5m |
| Charging method | 4G/Ethernet/RFID etc | 4G/Ethernet/RFID etc | 4G/Ethernet/RFID etc | 4G/Ethernet/RFID etc |
| Connector Type: | CCS/CHAdeMO/GBT | CCS/CHAdeMO/GBT | CCS/CHAdeMO/GBT | CCS/CHAdeMO/GBT |
| Protection Level | IP54 | IP54 | IP54 | IP54 |
| Operating Temperature: | ~-30C to +60C | ~-30C to +60C | ~-30C to +60C | ~-30C to +60C |
| Product size | 720*557*1700 | 720*557*1700 | ||
| Package size | 770*610*1850 | 770*610*1850 | ||
| net weight | 380KG | 470KG | ||
| gross weigh | 395KG | 485KG | ||
| HMI | 7- Inch touch screen | 7- Inch touch screen | 7- Inch touch screen | 7- Inch touch screen |
