Item Name | Waterproof Electric Vehicle Type1/2 Car 7/11/22KW AC EV Charger |
| Power | AC 7KW/11KW/22kW |
| Rated Voltage | AC 220V/380V±20% |
| Efficiency | 50-60Hz |
Output Power Rating | 7KW/11KW/22kW |
| Output Current | 32/16/32A |
| Cable Length | 5m |
| Network Connection | RFID/Plug and play |

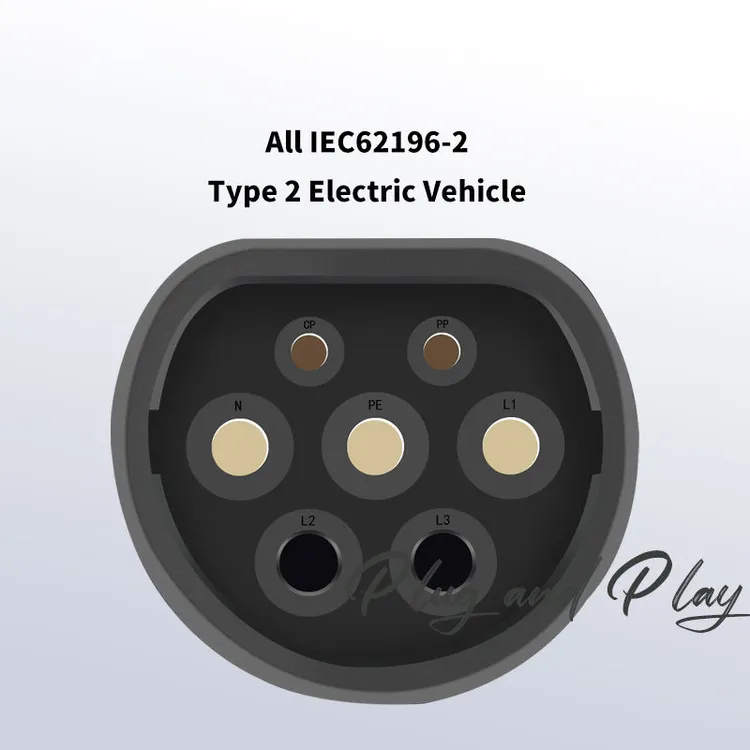

| Connector Type | Type 1,Type 2 |
| Protection Level | IP66 |
| Operating Temperature | ~-40C to +45C |
| Product size | 368*256.5*130mm |
| Package size | 460*390*160mm |
| Net weight | 4KG |
| Gross weight | 4.5KG |
Maintenance method: The system adopts an open cover maintenance method and is reliably installed on the wall Harmonic current ≤ 3% (under rated operating conditions) Stable current accuracy ≤ ± 0.5% refer to NB/T33001-2018 Voltage stabilization accuracy ≤ ± 0.5% refer to NB/T33001-2018 Ripple coefficient ≤ ± 0.2% refer to NB/T33001-2018 Current sharing ≤ ± 3% 10%~100% load range On the AC or DC side, the peak value of the impulse current when the switch is turned on should be limited to 10% of the maximum rated current of the charger (station) Sound noise ≤ 65dB (A) (at an ambient temperature of 25 ºC under rated operating conditions) The temperature rise shall comply with the requirements of GB18487-2001 and NB/T33001-2010 standards, and the temperature rise of the charging interface shall comply with the provisions of the national standard GB/T234.1-2014 DC output voltage Range 250Vdc~750Vdc, error ± 1Vdc Output DC current, single gun maximum output current ≤ 50A DC screen voltage drop ≤ 400mV (ambient temperature is 25 ºC)
