PM-AC-P3-D47
CCS1
APP Control, Book Charging, Remote Control, RFID Card
One Pile with Multiple Charges
Public Use
Wall Mounted
Quick Charge
Steel
2016
IP54
Type 1 / Type 2
-30~+50 C
APP Control, Screen Display
11kw*2
2 Years
Fast EV Charging Station
CE, ISO, TUV
24 Months
Power2move
Carton
45.7*33.8*11.5cm
China
8504409999
Product Description

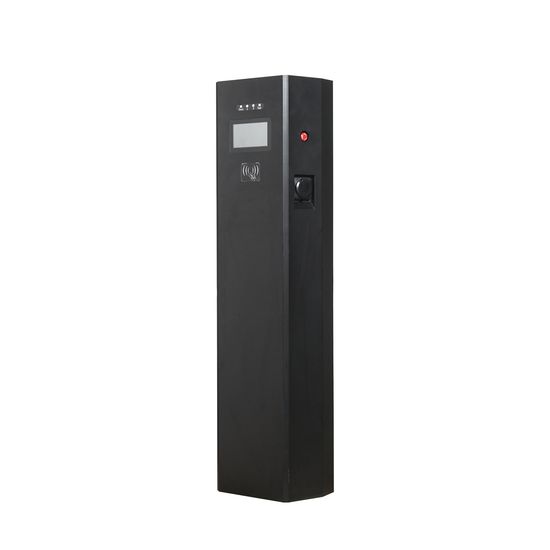

EV Charging Station CCS1 CCS2 Dual Connector EV Car Fast Charger Electric Vehicle DC Charging Station with Double Gun
Item No.:PM-AC-P3-D47
Specification
Features
* For Home User--Plug and play
* For Commercial User--card swipe, Occp 1.6 code, 4G mode, bluetooth
Sample Room
Workshop
Certificates:
Loading
Item No.:PM-AC-P3-D47
Specification
| Input Voltage/Output voltage | 380V |
| Input frequency | 50Hz |
| Max. output power | 22kW(11kW*2) (Three Phase) |
| Max. output current | 16A*2 |
| Charging interface type | IEC 62196-2 |
| RCD | Type A+ 6mA DC |
| Protection degree | IP65 |
| Environment temperature | -30-50ºC |
| Relative humidity | 0-95% non-condensing |
| Maximum altitude | <2000m |
| Certificate | CE & TUV |
| Communication | Ethernet/WIFI/4G/Bluetooth |
| Intelligent power adjustment | Yes |
| RFID | Optional |
| Protocol | OCPP1.6 |
Features
* For Home User--Plug and play
* For Commercial User--card swipe, Occp 1.6 code, 4G mode, bluetooth
Sample Room
Workshop
Certificates:
Loading
