T-20KL/ T-40KL
1year
5-1000lpm
10FT/20FT/40FT/60FT Cusomized
Double Tank
Conventional Portable Fuel Station
Gasoline
6mm (Double Layer as Option)
± 0.15% (at Min. Delivery 2 Litres)
Standard 40 L/Min High 80 L/Min Ultra High 130 L/M
Standard 0.18 MPa High 0.25 MPa
Standard Version -20ºC-40ºC
ISO9001/CE/Atex
110V/220V/380V, 50/60Hz
1-10 Nozzle Option
50 Years
Ecotec
Standard Export Package
10ft/20ft/40ft/60ft cusomized
Zhejiang, China
84131100
Product Description

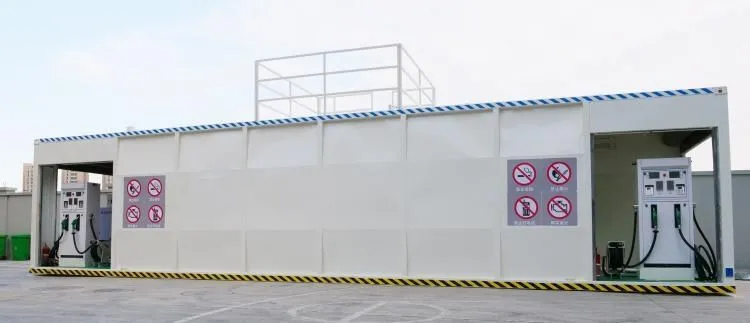

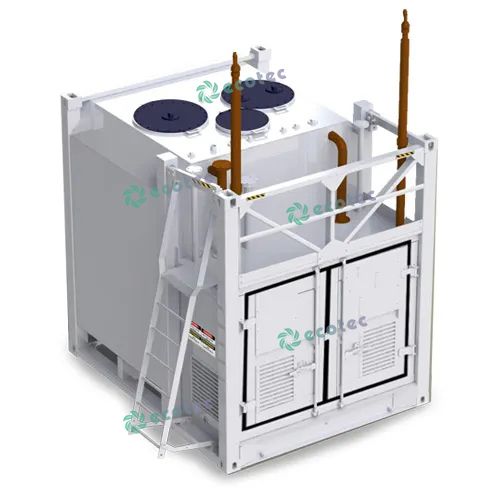

Container Station
Other Capacity and Model10FT/ 20FT/ 30FT/ 35FT/ 40FT/ 50FT/ 60FT
Standard Model List(Other size can be customized) | ||||
Model | Total volum(Liters | Container inner size(mm) | Inner tank size(mm | Total weight(ton) |
20ft | 10 000 | 5895*2350*2390 | 4500*1500*1500 | 4.23 |
15 000 | 5895*2350*2390 | 4300*2200*2200 | 4.55 | |
16 000 | 5895*2350*2390 | 4500*2200*2200 | 4.74 | |
20 000 | 5895*2350*2390 | 4500*2150*2150 | 4.93 | |
40ft | 30 000 | 12029*2350*2390 | 6800*2250*2000 | 6.95 |
36 000 | 12029*2350*2390 | 8150*2250*2000 | 7.25 | |
40 000 | 12029*2350*2390 | 8800*2280*2000 | 7.75 | |
50 000 | 12029*2350*2697 | 10500*2250*2150 | 8.39 | |
55 000 | 12029*2350*2697 | 10500*2280*2300 | 9.35 | |
Parameter List | ||
Items | 20FT | 40FT |
Container Type | ISO 20FT | ISO 40FT |
Rear Distribution | Yes | YES |
Service area Doors | Yes | YES |
Maritime Corrosion protection | Yes | YES |
TANK | MAX 26000L | MAX68000L |
Type | Rectangular Tank | Rectangular Tank |
Tank Wall | Single/Double | Single/Double |
Compartment | One / Two | One / Two |
WallThickness | 6mm/6mm Q345R | 6mm/6mm Q345R |
Electrical equipment explosion proof standards | EX Proofed | EX Proofed |
Standards | BS799-5:2010 | BS799-5:2010 |
Fluid Retaining system | Yes | Yes |
Man Holes | 2 | 2 |
Vent | Yes | Yes |
Fluid recuperation system | Yes | Yes |
Anti-slip grid floor with recuperation container | Yes | Yes |
Piping system | Welded steel tested | Welded steel Tested |
Filling system | DN50 | DN80 |
Aspiration DN40 with check valve | DN40 | DN40 |
Vent | DN50, with filter | DN50, with filter |
Pump | TYB-60 | TYB-60 |
Dispenser | RT-C112 / RT-C222 | RT-C112 / RT-C222 |
Gage | Manual /pneumatic | Manual /pneumatic |
Primer | Zinc | Zinc |
Finition Coat /Paint | polyurethane 2 coat | polyurethane 2 coat |
Electrical box with proytections | Yes | Yes |
Ladder | Yes | Yes |
Fire fighting equipment | Yes | Yes |
Office with EX LED Light and AC | Option,Not included | Option,Not included |
Canopy | Option,Not included | Option,Not included |
GENSET | Option,Not included | Option,Not included |
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price.
Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over 10 years. We can provide complete package service from Design, Manufacturing, Delivery and after-sale service, we have exported to over 60 countries now, and have agent in Africa, Middle East, Asia and South American countries.
Here Eectec Energy are on the position to offer the below products:
1. Fuel station: Fuel dispenser, Pump, Meter, fuel accessories, Adblue and container stations
2. LPG station: LPG dispenser, LPG pump, LPG meter, LPG Tank, LPG skid and other LPG station equipment
3. CNG station: CNG dispenser, CNG compressor, CNG cylinder and skid type CNG station
4. LNG Station: LNG dispenser, LNG pump, LNG pumping skid, LNG vaporizer etc
5. Valves for petroleum industrial: Ball valve, Gate Valve, Global valve, Check valve with different standard
6. Station Automation system: Station Retail system, Cell phone APP system, Tank Gauging system
7. Auto Parts: Tyre inflator, Wheel Balancer, Car Washing Machine etc
Customer and Dedication is what we standing for, we will always focus customer′s need, and struggle for it, Looking forward to cooperate with you.
