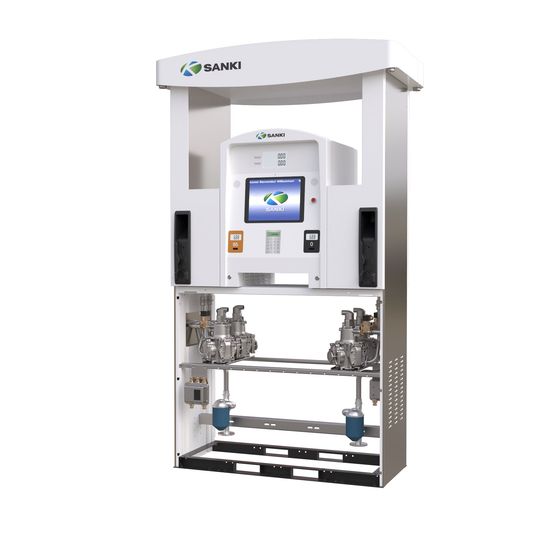

Sanki Prime Sk 56 80lpm 4nozzle with Olml/MID Certificate Fuel Dispenser

Features:

* Best exterior construction and good appearance
* Trustable highly precise metrology equipment
* High performance for electronic parts
* High quality explosion-proof motor with strong ability against power fluctuation
* Specially designed filtering systems with build-in re-cleanable filter
* With rich functions expansion like POS for smart card and bank card
* Flexible fuel application for gasoline, diesel, and kerosene etc.
* Works well in harsh conditions, like extremely cold, hot, humid, and sand-stormy environment


Optional Configuration:

Technical specifications:

Accuracy for the unit	±0.25%
Flow rate	50L/min
Ambient temperature	-25ºC ~ +ºC; -40ºC ~ +50ºC
Relative humidity	20% - 95%
Unit noise rate	< 70dB (A);
Inlet vacuum rate for   suction pump	>=54kPa
Communication	With RS 485 port, or current   loop
Power supply	AC 220V( -15%~+10%),   (50/60±1)Hz ;  AC 380V( -15%~+10%); (50/60±1)Hz
Digit of sale	7digits (decimal points can be adjusted )
Digit of volume	6digits (decimal points can be adjusted )
Digit of unit price	5digits (decimal points can be adjusted )
Totalizer of sale	0~42949672.95
Totalizer of volume	0~42949672.95

Model Range

MOdel	Product	Nozzle	Display		Package(mm)	Gross weight
SK56G/QF422B	2	4	2	1/side	1330*900*2520	540/465
SK56G/QF632B	3	6	2	1/side	1330*900*2520	620/505
SK56G/QF842B	4	8	2	1/side	1330*900*2520	705/555

About Us
SANKI Group includes SANKI and WENDBELL, is the leading refueling equipment manufacturer and a Total Retail Solution Supplier in China. SANKI is located in Beijing Economic-Technological Development Area, the SANKI Factory is a state of the art high-tech facility, Delivering high Quality products and Solutions with Commitment, customization Flexibility and Total Cost Ownership.




SANKI specializes in the design and manufacture of total refueling solutions for the oil and gas industry, with wide product range that covers motor spirit and diesel dispensers, LNG/LPG dispenser, SF Tanks, Skid stations, Automatic tank gauging equipment, Fuel management system & tank calibration system.


All key components manufacture, such as flow meters, pumps, and the entire electronic head are designed and manufactured in house by SANKI in China. Sanki is also the only dispenser manufacturer to have an in-house electronics board manufacturing line within their local facility.


With a manufacturing capacity over 6000 unit per month, The SANKI sales and network covers over 40 countries around the word, including Eastern Europe, Russia, Australia, Asia, Africa & South America. Within China, Sanki is also one of 3 main suppliers to China's SINOPEC and PECHOCHINA Oil companies with more then 70 Sales and Support/Service centers and 67 authorized partners across China



.
