Art. 33120
Manual Instruction
1 Year
Oil Gun
Standard
ISO, CE
New
by Email
1.5kg
2kg
0-35L/Min.
yaojienter
1PCS/Box 20PCS/Carton
37*37*45cm/carton
China
Product Description

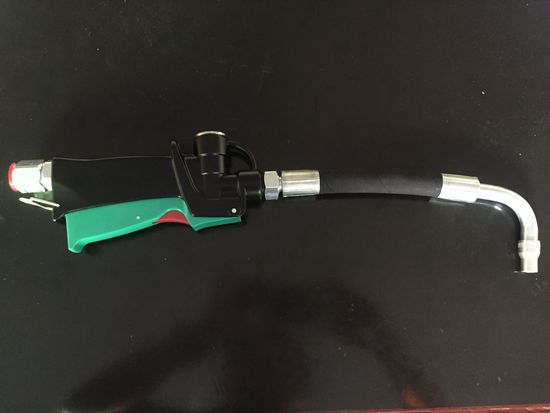

Art. 33120 Oil Control Gun

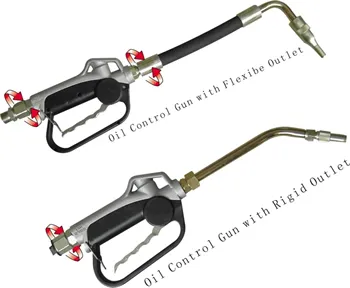

Oil Control Gun with Flexibe Outlet
Oil Control Gun with Rigid Outlet
These oil control guns are adaptable to various workshop in conjunction with air-operated oil system. They are first-rate product in my company, also they can be your first choice.
Features
Dispenses lubricating oils up to SAE 240, and antifreeze;
Utilises a straight through flow path to reduce pressure drop;
Latching trigger for ease of use;
Installs a ball bearing swivel inlet to ensure smooth operation and prevent the hose from kinking;
Non-drip automatic delivery nozzle;
Trigger guard.
Specifications
Wetted components: Aluminium, mild steel, nitrile rubber
Max. Operating pressure: 7 000 kPa (1000 psi, 70 bar)
Flow rate: Up to 30 L/min (8 US gal per min)
Max. Operating temp: 70° C (158° F)
Inlet connection: 12" BSP or NPT (F)
Weight (approx): 800 g (1.8 lbs)
