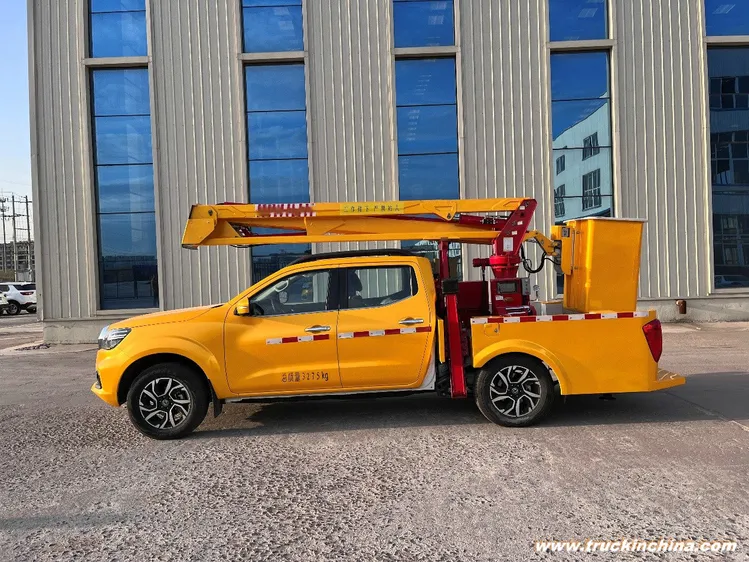

DFAC 4X2 Double Cabin Insulated Bucket Pickup Truck 12m

Product detail

Model NO.:

DFAC Insulated Bucket Pickup Truck

After-sales Service:

24hours

Warranty:

24months

Type:

Certification:

ISO9000, CCC

Emission Standard:

Euro 5 - 6

Hoesrpower:

Payload:

Fuel:

Diesel

Transmission Type:

Manual

Drive Wheel:

Condition:

Tire:

255/60r18

Cabin:

Drive:

LHD /Rhd

Boom Crane Loading Capacity:

120kg

Wheelbase (mm):

3400(mm)

Max Operating Range:

Max Operating Height:

12m,13.5m,14m

Overall Dimensions:

5900×1900×2700,2650,

Gross Weight:

3345(Kg)

Max Speed:

160(Km/H)

Trademark:

Dong Run Ze

Transport Package:

Specification:

Origin:

China

HS Code:

8705909990

Product Description

DFAC 4x2 Double Cabin Insulated Bucket Pickup Truck 12m
For repair power, street lights and other high-altitude work
Main technical parameters

Overall dimensions:	5800,5750,5985,5900×1900×2700,2650,2430,2520(mm)	Fuel Type:	Diesel oil
Gross Weight	3345(Kg)
Net weight	3020(Kg)	Rated load	(Kg)
Approach Angle/Departure Angle:	33/25 p / 25 (°)	Front/rear overhang:	910/1490,960/1440,910/1440,960/1390,910/1675,960/1625,910/1590,960/1540(mm)
Axle Load:	1203/2142	Wheelbase:	3400(mm)
Axle Number	2	Maximum speed:	160(km/h)
Tire Number	4(PCS)	Tire Specifications:	255/60R18
Fuel consumption:	(L/100Km)	Number of spring pieces:	- / 6
Front wheel track:	1570(mm)	Rear wheel track:	1570(mm)

Engine	Engine manufacturer	Displacement (ml)	Power (kw)/ horsepower (ps)
M9T-60A	Dongfeng Light Engine Co., LTD	2298	120

Vehicle parameters	Vehicle name	13.5 Meter Pickup Truck Aerial Worker(two-wheel drive Gasoline manual)
	Vehicle size	5970×1950/2000×2750/2600mm (length, width and height)
	Total mass	3335kg	Overall mass	3010kg
Chassis parameters	Emission standard	Euro V	Maximum speed	140km/h
	Fuel tank volume	70L	wheelbases	3405mm
	Engine	Inline four-cylinder water-cooled turbocharged, multi-point EFI
	Model	Displacement(mi)	Power(kw)	Torque(N.m)
	4K22D4T	2378	160	320
	Maximum torque revolutions (rpm)	Maximum power revolutions (rpm)	Transmission	Fuel oil
	2000-4000	5600	6MT	gasoline
Upper Configuration	Basket size	800×610×1100mm(length, width and height)	Working platform load rating	120kg
	Maximum operating radius	6m	Maximum operating height	13.5m (including 1.7m person height)
	Boom form	Hybrid arm (folding arm with telescopic)
	Mechanical system	Battery power	Electric power source	dual battery
	Outrigger form	A-type outrigger with automatic outrigger function (1 time leveling)
	security system	Big arm limit, soft leg protection
	Insulation	Type of working bucket	Rotation angle	Operating Method
	Bucket insulation (400V)	single-player single-fighting	350°	Remote control operation

Name	Brief Description
Interlocking of outriggers and booms	The upper and lower vehicle are interlocked by the switching valve, which is safer.
Electric emergency pumps	When the chassis engine or hydraulic main pump fails, long press the emergency pump button + operate the corresponding action, you can send the staff back to the ground, realize the whole vehicle safety recovery.
Emergency stop device	For emergency stopping of the engine to cut off the power source
Engine ignition flameout	Computerized control box, remote control for engine ignition and flameout.
Hd display	The intelligent big screen can know the status of the equipment anytime and anywhere, which is convenient for the personnel to quickly diagnose the faults and deal with the faults, and keep abreast of the status of the vehicle.
complex action	It can combine any movement freely and realize extension/contraction, amplitude rise/fall, turntable rotation and working bucket rotation at the same time.
Remote control (wireless)	The reception range of the remote control is 100 meters, and there is no obstacle to the operation of the work basket and the ground, so the communication is reliable.

aerial working platform body SKD Kit Optional

Item	Unit	Data
total length	mm	5995
Overall width	mm	1950
Total height	mm	2350
Number of passengers (including driver)	Number of people	5
total mass	kg	3345
Work Platform Rated Load	kg	120
Rotation angle of work platform	number of degrees	±90
Maximum working range	m	5.5
maximum working height	m	13
Working range at maximum working height	m	2.3
Working height at maximum working range	m	10
horizontal	mm	Front 3650/rear 1750
Vertical	mm	1650

DFAC 4x2 Double Cabin Insulated Bucket Pickup Truck 12m
Aerial Work Platform Pickup Truck with 12m Height12m,13.5m ,14m Aerial Working Insulated Platform High Altitude Lifting Car for Fiberglass Basket

Isulated Platform High Altitude Lifting Car for Fiberglass Basket

14m pickup truck Insulated Telescopic Arm aerial work truck for narrow road power maintenance

General
Platform Working Height	14meters
Overall Dimension(m)	5970×1950×2750mm
Gross weight(KG)	3335KG
Chassis
Chassis Brand	huanghai
Engine Brand	4K22D4T
Power(KW)	160
Emission standard	Euro 6
Boom type	Hybrid arm (folding arm with telescopic)
Outrigger	AA leg with automatic leg support function
Bucket
Operating system	Up and down operation both on ground and in bucket, Wireless remote control + platform operation + manual 3 groups of operating system + manual emergency system
Emergency device	YES
Color	Customer's Requirement
NOTE: 1. Any part can be customized depending on customers' demand. 2. 12 months whole vehicle warranty 3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
