Overall dimensions:

12100×2550×4000(mm)

11600×2550×4000(mm)

Fuel Type:

Diesel oil

G.W

31000(Kg)

NET

22200(Kg)

20500(Kg)

Rated load mass:

8670(Kg)

10370(Kg)

Approach Angle/Departure Angle:

16/13 (°)

16/16(°)

Front/rear overhang:

1435/2865(mm)

1435/2765(mm)

Axle Load:

6500/6500/18000(Two axes)

Wheelbase:

2000+2800+1400,2000+3000+1400,

2000+4000+1400,2000+3200+1400,

2150+4250+1400,2000+4400+1400,

1800+3400+1400,1800+3900+1400,

1800+4600+1400(mm)

Number of shafts:

4

Maximum speed:

80(km/h)

Number of tires:

12(PCS)

Tire Specifications:

12R22.5 18PR,315/80R22.5 18PR,11.00R20 18PR,12.00R20 18PR,295/80R22.5 18PR,315/60R22.5 20PR

Fuel consumption:

(L/100Km)

Number of spring pieces:

3/3/6,8/8/12,9/9/12,10/10/12,3/3/12

Front wheel base:

2020/2020,2040/2040,2060/2060(mm)

Rear wheel base:

1858/1858(mm)

Engine type

Engine manufacturer

Volume (ml)

Power (kw)

SC10E400Q6; SC10E330Q6; SC10E370Q6; SC10E300Q6; SC10E420Q6; F2CCE611G*M; F2CCE611H*M; F2CCE611J*M; F2CCE611K*M

Shanghai New Power Automobile Technology Co., LTD

Saic Fiat Hongyan Powertrain Co., LTD.

10420; 10420; 10420; 10420; 10420; 8709; 8709; 8709; 8709

294; 243; 272; 221; 309; 287; 263; 243; 215

A:

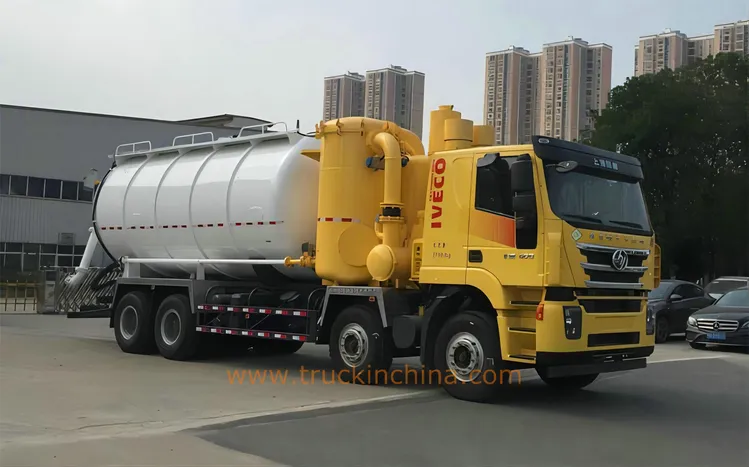

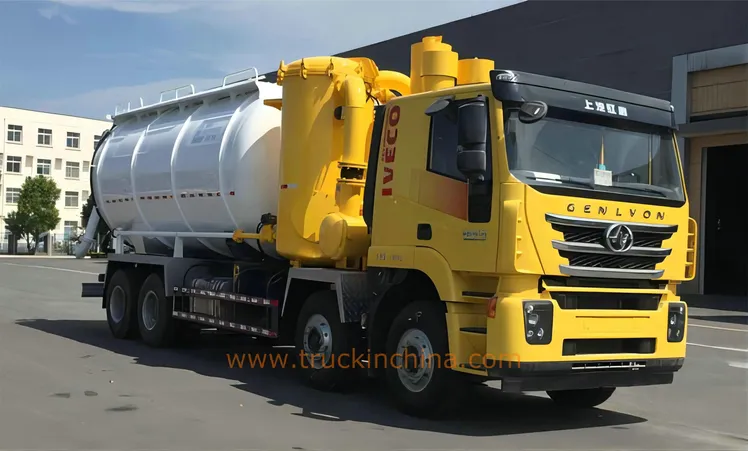

1.Special vehicle equipped with special devices such as vac tank body, air compressor, dust removal filter system and lifting cylinder. The negative pressure generated by ground vacuum pump is used for vacuum suction and loading of powder particles, and the positive pressure is used for unloading by air compressor.

2. The total capacity of the tank is 25 cubic meters, the effective volume of the tank is 24 cubic meters, the external dimension of the tank is 7320mm long (including the head), 2310mm in diameter, the transport medium is soot powder, and the density is 420 kg/cubic meter.

3. The side protection device is made of aluminum alloy and is connected by bolts; The rear protection device is made of Q235 and is connected by bolts.

4. Optional hydraulic or bolt locking device for tailgate.

Optional dust filter bag pulse ash cleaning system.

Optional single row/row half cab with chassis, number and arrangement of gas cylinders, cab LOGO.

 Engine power :SC10E370Q6 266kw,SC10E330Q6 237kw, F2CCE611H*M 261kw,F2CCE611J*M 241kw,

B:

1. Equipped with tank body, vacuum pump, air compressor, motor, lifting cylinder and other special devices, through the vacuum pump to produce negative pressure for the powder material vacuum suction loading, after the tank is lifted by the air compressor positive pressure discharge.

2. Total capacity of the tank is 22 cubic meters, the effective volume of the tank is 20 cubic meters, the external dimension of the tank is 5610mm long (including the head), 2410mm in diameter, the transportation medium is soot powder, and the density is 400 kg/cubic meters.

3. The material of the protection device is Q235, and the protection device is welded. The section size of the rear protection device is 120mm×60mm, and the height off the ground is 490mm.

4. Chassis wheelbase 2000+4400+ 1400/2150 +4250+1400(mm) .

5. Optional hydraulic or bolt locking device for tailgate. Optional single row/row half cab with chassis, number of gas cylinders, cab LOGO.

C :

1.Equipped with tank body, vacuum pump, air compressor, lifting cylinder and other special devices, through the vacuum pump to produce negative pressure for the powder material vacuum suction loading, after the tank is lifted by the air compressor positive pressure discharge.

2. The total capacity of the tank is 22.5 cubic meters, the effective volume of the tank is 21.5 cubic meters, the external dimension of the tank: the length of the tank is 6240mm(including the head), the diameter is 2410mm
