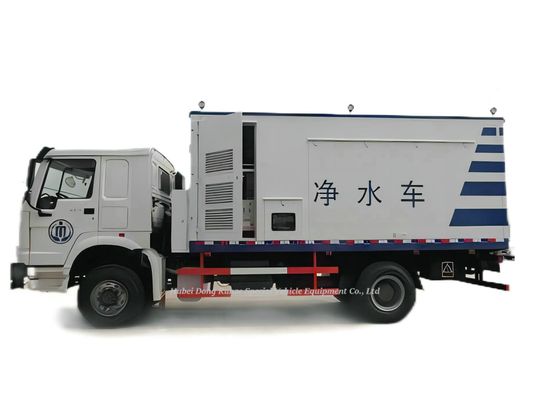

Customizing AWD Offroad HOWO 4x4 / 6x6 Water Filtration Truck for Purifying Water
Customizing 4x4 HOWO Water Treatment Truck System for Purifying Water
Price for refer only. Final Price Offer Discount.
HOWO Chassis 4x4 all wheel Drive offroad : ZZ2187N5227E1
Chassis: | ZZ2167M | Fuel type: | diesel fuel |
Engine: | WP10.290 | Rated capacity (kg): | 3550 |
Displacement (cc): | 9726; 9726 | Wheelbase (mm): | 3800, 4300, 4600, 5200 |
Power (kW): | 213; 250 | Dimensions (mm): | 8698 × 2500 × 3470 |
Main special equipment: water storage tank, water purification system, etc.
Main technical parameters
Overall dimensions: | 8490×2491×3540(mm) | ||
Total mass: | 18000(Kg) | Net | 12870(Kg) |
Approach Angle/Departure Angle: | 31/13(°) | Front/rear overhang: | 1602/2288(mm) |
Axle Load: | 7000/11000 | Wheelbase: | 3800,4300,4600,5200(mm) |
Number of shafts: | 2 | Maximum speed: | 90(km/h) |
Number of tires: | 6(pcs) | Tire Specifications: | 11.00-20 18PR,11.00R20 18PR,12.00-20 16PR,12.00-20 18PR,12.00-20 20PR,12.00R20 16PR,12.00R20 18PR,12.00R20 20PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 4/9+6,9/9+6 |
Front wheel base: | 2041,2022(mm) | Rear wheel base: | 1850(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
D10.28-50 | China Heavy Duty Automobile Group Co., LTD | 9726 | 206 |
8x8 Chassis :ZZ2317N4977D1
Water Purification Vehicle (Truck mounted Water Treatment And Purification System Hot Water Boiler
Live Water 2500L /h Drinking Water 1000L /h
Truck-Mounted Water Filtration System
The configuration of water purification equipment is as follows:
Portable Water Treatment Units
water tank
The water tank is divided into a clean water tank and a raw water tank, both of which are made of 304 stainless steel. The total effective volume of the water tank is ≥ 4.5m ³
Number of configured clean water tanks: 1, with a capacity of ≥ 1.5m ³ , Internally, it is treated with drinking water through water purification equipment;
Number of configured raw water tanks: 1 unit, with a capacity of ≥ 3m ³ , Internally, there are three types of surface water;
The boxes are all welded from 304 stainless steel plates. The top of the box is equipped with an opening that can serve as a water filling hole for injecting water into the box. The hole cover and opening are sealed with rubber rings and connected with bolts;
There are 3-4 folding wave guards inside the box. The box is equipped with inlet filtration, outlet filtration, overflow, and sewage discharge devices;
A drainage outlet is set at the lowest point of the water tank to ensure that the water in the tank can be discharged completely during storage;
1.Are you trading company or manufacturer ?
We are Group Corporation manufacturer ,have Group Factories Contractor.2 .Can I have samples of this type of product to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.
3. What's the delivery time and can you lower the price?
It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.
7.What's the payment terms?
8. How to guarantee customers get the goods smoothly after they payment?
Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
9.How can you ensure the quality of the products?
Don't worry,dear.We have joined the trade assurance,if the products have quality problems when you received them,the payments can be refund to you.
