DRZ-30T wrecker Howo
2 Years
2 Years
ISO9001
New
15-20m
5
6
Folding
600 T.M Knuckle Boom
380~440HP
18.5m
15.5m
6000kn.M
8m
360
Construction Usage, Workshop Usage, Co
Hg785D
34600kg
150 Tons/4m, 100 Tons /5.8m, 60 Ton/8.7m
21tons at 15.8 Meters.
60t-180t
HOWO, Shacman, Benz, Man
Breakdown Service Truck
DZR/JW/HBQZ
Nil
Knuckle Boom 600T. m Crane
China
842691
Product Description

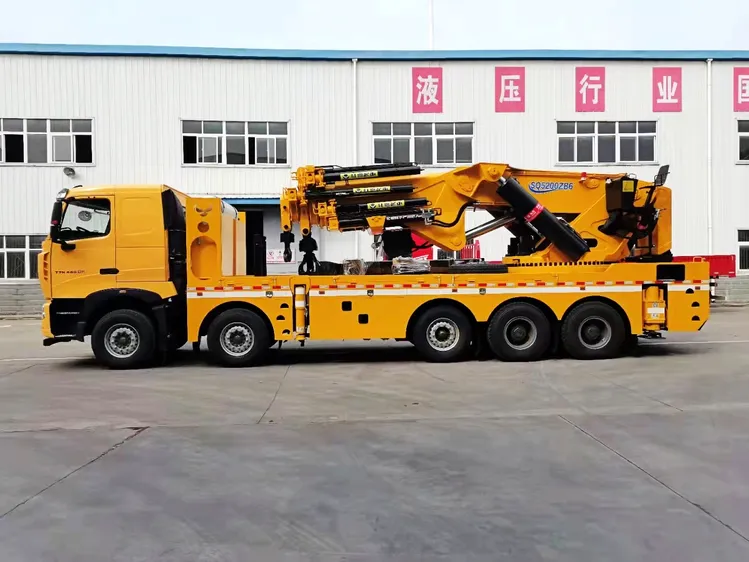

Howo 260 Ton 8X6 Heavy Duty Crane Wrecker Truck(360 Degree Rotation 130 Ton at 4M)
Heavy Duty Howo Towing & Recovery Truck with Crane
260 Tons Howo 16 Wheels Heavy Duty Crane Wrecker (360 Degree Rotation 130 Ton at 4M)
180T Truck Mounted Crane Howo 8X6 SQ3600ZB6 3600KN.M Max Lifting Weight 180T
150T Howo Truck Mounted Crane SQ5200ZB6 150T/4m 6000KN.M
Howo 100T - 300T Truck Mounted Knuckle Crane SQ1800ZB6 SQ6000ZB6
600T.m Semi-Knuckle Boom Cranes SQ6000ZB6 Lift 150ton at 4m, Boom Hoist 60t at 8.7m ,21t at 15.8m (6000Kn. m 600T.m)Heavy Duty Semi-Knuckle Boom 6 Jib
Heavy Duty Howo Towing & Recovery Truck with Crane
260 Tons Howo 16 Wheels Heavy Duty Crane Wrecker (360 Degree Rotation 130 Ton at 4M)
180T Truck Mounted Crane Howo 8X6 SQ3600ZB6 3600KN.M Max Lifting Weight 180T
150T Howo Truck Mounted Crane SQ5200ZB6 150T/4m 6000KN.M
Howo 100T - 300T Truck Mounted Knuckle Crane SQ1800ZB6 SQ6000ZB6
600T.m Semi-Knuckle Boom Cranes SQ6000ZB6 Lift 150ton at 4m, Boom Hoist 60t at 8.7m ,21t at 15.8m (6000Kn. m 600T.m)Heavy Duty Semi-Knuckle Boom 6 Jib

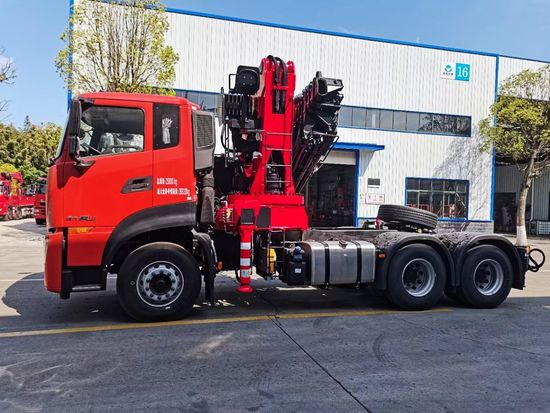

Hoist 150 ton at 4m knuckle boom truck mounted crane
Images of 100T - 300t Truck Mounted Knuckle Crane
SQ6000ZB6Intelligent Folding Boom Crane Parameters
| Maximum lifting moment (kn. M) | 6000 | Maximum lifting weight (T) | 150T/4M |
| Maximum lifting height (m) | 18.5 | Maximum working range (m) | 15.5 |
| Number of telescopic boom sections | 6 | Rotation angle (°) | Full rotation 360° |
| Rated working pressure (MPA) | 30 | Rated system flow (L / min) | 130 |
| Leg span (m) | 2500-8100 | Crane weight (kg) | 34600 |
| Installation space (mm) | 3830 |
150t-200t Truck Mounted Crane Truck
Hydraulic Crane, Hydraulic Cylinder
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
| Truck Model | DRZ5311JSQLV | 5311JSQB | 5310JSQH7FB |
| Chassis | EQ1311GLJ(24) | STQ1311L16Y3B5 (24) | LZ1310M5FBT(33) |
| Engine | YC6A290- | YC6A270- | YC6L350- |
| Transmission | 9JS119TA | 9JS119TA | 10JSD120TB |
| Wheelbase | 2150+4400+1350 | 2150+4300+1350 | 1950+4500+1350 |
| Front Axle | 5.5Tx 2 | 6.5T x 2 | 6.5T x 2 |
| Rear Axle | 12T x 2 (tandem axle) | 18T x 2 (tandem axle) | 18T x 2 (tandem axle) |
| Tire | 11.00R20*13 | 11.00R20*13 | 11.00R20*13 |
| Crago box(mm) | 8000*2300*550 | 8000*2300*550 | 8000*2470*550 |
| Crane 30T 600 Kn.m | SQ600ZB4 /30T at 2m $88800FOB ~$103800CIF | $88800FOB ~$103800CIF | $103000FOB ~$118000CIF |
| Crane 38T 760 Kn.m (25T at 3m) | SQ760ZB6/ 38 ton at 2 m $93800FOB ~$108800CIF | $93800FOB ~$108800CIF | $108000FOB ~$123000CIF |
| Crane 60T 1200 Kn.m 40T at 3m | SQ1200ZB6 /60 Ton At 2 m 35T at 3.4m ,40T at 3m $112900FOB ~$127900CIF | $112900FOB ~$127900CIF | $127000FOB ~$142000CIF |
| Crane 80T 1600 Kn.m (40T at 4m) | SQ1600ZB6 / 80 ton at 2 m $116000FOB ~$131000CIF | $116000FOB ~$131000CIF | $130000FOB ~$145000CIF |
| Crane 90T 1800 Kn.m (45T at 4m) | SQ1800ZB6 /90T at 2 m $131000FOB ~$146000CIF | $131000FOB ~$146000CIF | $136000FOB ~$151000CIF |
| Crane 120T 2400 Kn.m (60T at 4m) | SQ2400ZB6/ 120ton at 2m $142000FOB ~$157000CIF | $142000FOB ~$157000CIF | $156500FOB ~$171500CIF |
| Crane 160T 3200 Kn.m | SQ3200ZB6(160T) at 2m (80T at 4m) $164000FOB ~$179000CIF | $164000FOB ~$179000CIF | $169000FOB ~$184000CIF |
| Truck Model | 8x4 | 8x4 | 8x4 | 8*8 | 10*4 |
| Chassis | HINO /ISUZU /HYUNDAI | BEIBEN / SHACMAN /FOTON/SINOTRUCK | JAC /FAW/DFL /IVECO/ CAMC / C&C | BEIBEN / SHACMAN / SINOTRUCK | SINOTRUCK HOWO / DFL/C&C |
| Engine | 380HP /460HP | 380HP /420HP/460HP | 380HP /420HP | 336HP / 380HP | 380HP /420HP |
| Wheelbase | **** | **** | **** | **** | ***** |
| Front Axle | 7Tx 2 | 7.5T x 2 | 7.5T x 2 | 7.5T x 2 | 7.5T x 2+6.5T |
| Rear Axle | 16T x 2 (tandem axle) | 18T x 2 (tandem axle) | 18T x 2 (tandem axle) | 18T x 2 (tandem axle) | 18T x 2 (tandem axle) |
| Tire | 11.00R20*13 | 12.00R20*13 | 12.00R20*13 | 12.00R20*13 | 12.00R20*13 |
| Crago box(mm) | 8000*2300*550 | 8000*2300*550 | 8000*2470*550 | 8000*2300*550 | 8000*2470*550 |
| Crane 30T 600 Kn.m | SQ600ZB4 /30T at 2m $126000FOB ~$141000CIF | $103000FOB ~$118000CIF | $103000FOB ~$118000CIF | $113000FOB ~$128000CIF | $108000FOB ~$123000CIF |
| Crane 38T 760 Kn.m (25T at 3m) | SQ760ZB6/ 38 ton at 2 m $131000FOB ~$146000CIF | $108000FOB ~$123000CIF | $108000FOB ~$123000CIF | $118000FOB ~$133000CIF | $113000FOB ~$128000CIF |
| Crane 60T 1200 Kn.m 40T at 3m | SQ1200ZB6 /60 Ton At 2 m 35T at 3.4m , $150000FOB ~$165000CIF | $127000FOB ~$142000CIF | $127000FOB ~$142000CIF | ||
| Crane 80T 1600 Kn.m | SQ1600ZB6 / 80 ton at 2 m (40T at 4m) $153000FOB ~$168000CIF | $130000FOB ~$145000CIF | $130000FOB ~$145000CIF | $140000FOB ~$155000CIF | $135000FOB ~$150000CIF |
| Crane 90T 1800 Kn.m | SQ1800ZB6 /90T at 2 m (45T at 4m) $159000FOB ~$174000CIF | $136000FOB ~$151000CIF | $136000FOB ~$151000CIF | $146000FOB ~$151000CIF | $141000FOB ~$156000CIF |
| Crane 120T 2400 Kn.m | SQ2400ZB6/ 120ton at 2m (60T at 4m) $$179500FOB ~$194500CIF | $156500FOB ~$171500CIF | $156500FOB ~$171500CIF | ||
| Crane 160T 3200 Kn.m | SQ3200ZB6(160T) at 2m (80T at 4m) $192000FOB ~$207000CIF | $169000FOB ~$184000CIF | $169000FOB ~$184000CIF | $179000FOB ~$194000CIF | $174000FOB ~$189000CIF |
excellent performance with reasonable price.
