Sinotruck HOWO Hohan Transit Concrete Cement Mixer Truck 8 9 10 Cubic Meters

Supplier Hubei Dong Runze Special Vehicle Equipment Co., Ltd.
Price $61800.00 / Set
Availability In Stock
Mini Order:
+-
Subtotal: $618000

Purchase details

Payments:

Tax:

Tax Included

Returns&Refunds:

Eligible for refunds within 30 days of receiving products. returns and refunds

HOHAN Transit Concrete Mixer
24hours
24months
ISO9000, CCC
Manual
Euro 3-5 -6
10
20T
Diesel
6x4
300-400hp
New
LHD/Rhd
10-12m3
9885X2290X3620mm
3985+1370 mm
90km/H
SHACMAN, FOTON, FAW, Dongfeng, North BENZ -Beiben
Nil
Customizing
China
8705400000
Product Description

Sinotruk Howo new 10m3/ 12 cubic meters concrete truck mixer of China


Sinotruck Howo  HOHAN Transit Concrete Cement Mixer Truck 8 9 10 Cubic Meters




Cement mixer truck (also called transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck) is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.



Saic Yuejin Offroad Truck Concrete Cement Mixer Vehicle 5ton-10 Ton 4X2 /4X4

Product Parameter

  We use OEM fittings, makes the tanker solid and durable, and reduce the cost to operate and maintain.
Other key parts of this transit concrete mixer include hydraulic system and mixing system. Hydraulic system can be equipped with oil pump and motor from either German Rexroth or Italy ARK, thus offering reliable performance. The decelerator acquired from Italy PMP or Italy TOPUNION offers a high reduction ration of 100-130. The mixer is able to offer a minimum charging speed of 3m³/min, and a minimum discharging speed of 2m³/min. This ensures high mixing efficiency.

Recommended configuration:ModelZZ5255N3846D1ZZ5255N3846D1ZZ5255N4146D1
Enginemodel       (Euro IV)MC07.34-40  340HP  MAN brand    with EVBD10.38-40  380HP  SINOTRUK brand with EVBD10.38-40  380HP  SINOTRUK brand with EVB
Economic rpm range (r/m)1200~18001200~15001200~1500
Most economic rpm  (r/m)1000~15001000~13001000~1300
Displacement6.87L9.726L9.726L
CabinH16                                                                                                                           single sleeper,equip with air-condition,safety belt,electric lifting cabin,wind deflector.
ClutchΦ430 pull-type diaphragm clutch
TransmissionHW12 / HW10                                                                                                          12/10 front and 2 reverse,manual gearbox       SINOTRUK HW series Transmission,main and auxiliary transmission structure,main transmission with double counter shaft,auxiliary transmission with planetary reduction.
Drive AxleHC16                                                                                                       SINOTRUK  brand  Mine with 16ton central reduction and hub reduction
Speed ratio4.42,4.8, 5.73
Front AxleHF9                                                                                                                      SINOTRUK brand, 9ton,drum brake & disc brake
Frame (mm)300X80x(8+8)300X80x(8+8+8)
Chassis suspensionMultiple-leaf spring in front and rear
SteeringZF,power steering with hydraulic system
Tyre11.00R20  with ABS
Fuel tank300L
Breaking systemservice brake:dual-circuit air pressure brake;parking brake:spring storage energy without air;auxilliary brake:Engine exhaust braking.
Electronic systemvoltage:24V;generator:1540W;starter:24V,7.5kw;battery:12V/165Ah,2pieces
Boxvolume10cbm12cbm
Thickness5mm5mm
OtherETON pump,ETON motor,Italy Bonfiglioli speed reducer.Speed of mixing barrel:0-16r/min
Mixing obliquity:11°
Capacity of water tank:380L
Residual rate of discharge:<0.5%
Max.dimension of hopper:980mm
Operating condition environment:Total mass(vehicle+cargo)≤70 T
Carried cargoConcrete etc.
Type of carrying distanceshort distance
Theoretical vehice speed upon max.gear (km/h)778484
Economic vehice speed range (km/h)39-7140-6140-61

1. Drum use two cove floating type spiral blades, the discharging spiral angle rotates 75°, and reducing to 60° upto the pyramis at bottom of drum. This unique design greatly reducing the residual discharging ratio, almost zero. Inclination is between 12-15°, improving the high mixing efficiency. Also reduce the concrete impact which offers more resistance to extend the service life. The scraper plate which fitted at rear of the spiral blade ensure an assistance movement for better mixing.
2. 350L large capacity water tank, compressed air form, high pressure and strong impulse to meet almost cleaning conditions.

 Technical parameter of concrete mixer truck

Concrete mixer truck is a special truck used to transport concrete for construction; because of its shape, it is often referred to as a field snail truck.  These trucks are equipped with cylindrical mixing drums to carry mixed concrete. During transportation, the mixing drum will always be rotated to ensure that the concrete carried will not solidify.  After the concrete is transported, the inner part of the mixing drum is usually flushed with water to prevent the hardening of the concrete from occupying space, so that the volume of the mixing drum becomes smaller and smaller.
Performance of mixing drum

Geometric volume
13.9m³
Mixing volume
8m³
Maximum diameter of drum body
2250mm
Length of mixing drum
4817mm
Angle of inclination
13.5°
Rotating speed
0~14r/min
Charge speed
≥3m³/min
Discharge speed
≥2m³/min
Residue ratio of discharge
<0.7%
Range of slump
5~21cm
Hydraulic system

Oil pump
international brand
Hydraulic circuit
Closed type
Water supply

water tank capacity
450L
Way of water supply
Pneumatic
Complete machine

Type of driving
Left-hand drive
Curb weight
13400kg
maximum gross weight
25000kg
Type of drive
8×4
Wheel base
1800+3050+1350mm
Tyre
11.00R20
Means of power takeoff
Power takeoff by flywheel
External dimensions
9035×2500×3890(length×width×height)mm
Engine

Water tank capacity
600 L
Pipe size
125 mm
End hose length
3 m
End hose diamete
125 mm
Chassis

Model
MC07.31-50
Rated power
228Kw/r/min
Displacement
9.726L
Emission standard
GB V
Fuel tank capacity
400 L
Displacement
11.946
Max.speed
80 km/h
Brake distance
≤10/30 m/km/h

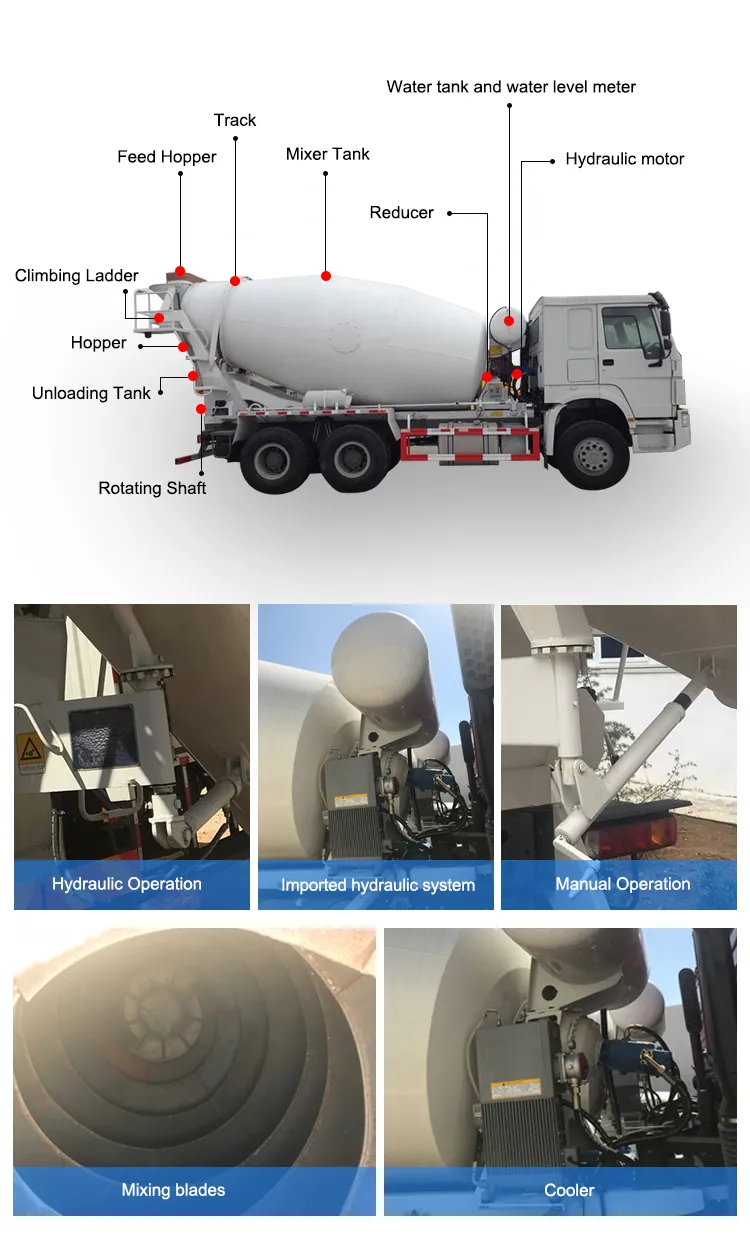

Product show







Saic Yuejin Offroad Truck Concrete Cement Mixer Vehicle 5ton-10 Ton 4X2 /4X4Saic Yuejin Offroad Truck Concrete Cement Mixer Vehicle 5ton-10 Ton 4X2 /4X4Saic Yuejin Offroad Truck Concrete Cement Mixer Vehicle 5ton-10 Ton 4X2 /4X4
PlatformLeft /
Right Drive		EngineFuelPower / HorsepowerWheelbaseTransmission CaseRear AxleModelMain  Market
Mini car RHDQuanchai qc480qdiesel oil29 / 40 HP2400Mg700 (WanLiYang 5th gear)2.0TBJ1030V5JV4-F1DA01Bengal
LHDDAM15Lgasoline82/1122850Dat18r (Dong'an 5th gear)2.5TBJ1030V5JV5-ARDA06 Nigeria
LHDDAM15Lgasoline82/1122750DAT18R2.0TBJ1030V5JV2-AXDA06Basic model
LHDDong'an dam15lgasoline82/1122750DAT18R2.0TBJ1030V5JV2-AXDA02Base model / Bolivia
LHDDong'an dam15lgasoline82/1122850Dat18r (5th gear)2.5TBJ1030V5JV5-ARDA02Basic model
Light truckLHDBj493zlqv1 (National III)diesel oil1083360JC5-282.2/5BJ1049V9JDA-01DA06General country
YC4D130-33diesel oil96/13033606T1205.5TBJ1069VDJFA-FADA01Turkmenistan / Tajikistan / Uzbekistan / Kyrgyzstan / Moldova / Mongolia / Azerbaijan / Armenia
Bj493zlqv1 (National III)diesel oil1083360ZF5S3682.4/4.5BJ1065VDJD6-F1DA15Strategic customer Nigeria
Yc4fa130-40 (National IV)diesel oil13033606T1206TBJ1078VEJEA-F2DA16Vietnam / Georgia / Mongolia
F3.8s3141 (Guosan)diesel oil14133606S5006TBJ1088VEJEA-0FDA05Strategic client / Panama / Costa Rica / Haiti / Honduras / Guatemala / Mn / Myanmar Egypt Tunisia
ISF3.8s3154diesel oil11533606S5006TBJ1088VFJEA-F1DA06GCC
RHDBj493zlqv1 (oil brake)diesel oil762800JC5-283.5TBJ5041V9BBA-0SDA06Caribbean RHD / Antigua and Barbuda / Barbados / Guyana / Saint Lucia / Suriname / Trinidad and Tobago / Jamaica / Bangladesh
F3.8S3141diesel oil14133606TS552.2/5.5BJ1051VCJEA-RFDA07Caribbean RHD / Antigua and Barbuda / Barbados / Guyana / Saint Lucia / Suriname / Trinidad and Tobago / Jamaica / strategic customer
LHDBJ493ZLQV1diesel oil803360JC5-285TBJ1049V8ADA-01DA03Guatemala / Panama / Dominica / Haiti / Nicaragua / Venezuela / Ethiopia / Sultan / South Sultan / Djibouti / Eritrea / Rwanda / Burundi / Somalia / Seychelles / Madagascar / Garner / Cape Verde / Togo / Benin / Sierra Leone / / / / / gross / NIA / / Mali / / / Sao Tome / Cote d'Ivoire / Burkina Faso //Congo Brazzaville / Cameroon / Central Africa / Gabon / strategic customer
ISF2.8s4148Vdiesel oil110/14833605S3684.5TBJ1041V8ADA-F1DA01Colombia / Peru / Iraq / strategic client / Mongolia / Angola
LHD4J28TCdiesel oil11033606T1002.2/5BJ1049V9JDA-01DA07Georgia / Turkmenistan / Tajikistan / Uzbekistan / Kyrgyzstan / Moldova / Mongolia / Azerbaijan / Armenia / Peru
4J28TCdiesel oil80/11033606G404.5TBJ1065VDJDA-F1DA03Columbia
LHDYC4D130-33diesel oil13038006T1202.5/6BJ1089VEJFA-FADA01Bolivia / strategic customer / Turkmenistan, Tajikistan, Uzbekistan, Kyrgyzstan, Moldova, Mongolia, Azerbaijan, Armenia / BC / Mongolia
RHDF3.8S3141diesel oil105/14138006TS556TBJ1061VDJEA-RFDA11Caribbean RHD / Antigua and Barbuda / Barbados / Guyana / Saint Lucia / Suriname / Trinidad and Tobago / Jamaica / Bangladesh
LHDYC4D140-48diesel oil103/14038006T1206TBJ1108VEJEA-FADA04Georgia / Vietnam
ISF3.8s4141diesel oil105/14138006S5004.5TBJ1069VDJEA-FBZA02Iran
LHDISF3.8s3168diesel oil125/16847006T12010TBJ1129VFPEG-FADA01Honduras / Panama / Nicaragua / Paraguay
Medium cardLHDYC6A240-33diesel oil177kw48008JS105TA10T/4.875BJ1226VMPHG-01DA01Cameroon, Nigeria, Myanmar, etc
LHDISDe245 30diesel oil18048008JS105TA10T/4.875BJ1226VMPHG-01ZA01GCC
LHDYC6A240-33diesel oil177kw51508JS105TA10T/4.875BJ1226VMPHK-01DA01Cameroon, Nigeria, Myanmar, etc
RHDYC6A240-33diesel oil177kw48008JS105TA10T/4.875BJ1226VMPHG-RADA01Kenya, Tanzania, Zambia, etc
RHDYC6A240-33diesel oil177kw51508JS105TA10T/4.875BJ1226VMPHK-RADA01Kenya, Tanzania, Zambia, etc
RHDISF3.8s3168diesel oil125/16848006s6008TBJ1126VGJEG-RFDA01Thailand
Heavy truckLHDWD615.50 (National II)diesel oil2904500+1350RTD11509C(Q)13TBJ1253VLPJE-01TA01Nigeria
WD615.50 (National II)diesel oil213/22005700+1350Rtd11509c (q) iron13T/5.73BJ1253VLPJE-01TA02General country
Wp10.340e32 (Guosan)diesel oil3405100+135012jsd180t iron13T/4.444BJ1257VMPJP-01TA01GCC
LHDWd615.34 (National II)diesel oil3403400+135012jsd160t (q) iron7.5T/16TBJ3253DMPJB-01ZA01Ethiopia, Djibouti and other East African countries
LHDWd615.34 (National II)diesel oil3403825+1350RTD11509C(Q)13TBJ3253DLPJB-01ZA02General country
LHDWP10.340E32diesel oil3403575+135010JSD160T13TBJ5253GJB00-20DA02General country
LHDWP10.340E32diesel oil3403575+1350Rtd-11509c iron13T/4.875BJ5257GJB00-10DA01General country
LHDWP10.340E32diesel oil3751800+4700+135012jsd160ta iron13TBJ1317VNPJJ-31ZA01General country
RHDWD615.50 (National II)diesel oil2805700+13509JSD150T-B(Q)13TBJ1253VLPJP-0RZA01General country
RHDWd615.44 (National II)diesel oil3303825+13509JSD150T-B(Q)13TBJ3253DLPJB-RAZA01Indonesia
RHDWd615.44 (National II)diesel oil3304100+13509JSD150T-B13TBJ5253GJB00-RADC01Malaysia
RHDWp12.380e32 (Guosan)diesel oil3801800+4700+135012JSD180TA(Q)13TBJ3313DPPKJ-R1ZA01Malaysia
PickupRHDISF128diesel oil120/1633105JC538 BJ2037Y3MDV-R8ZA01Tanzania Kenya Suriname
PickupRHDISF2.8S4161Pdiesel oil120/1633105JC538 BJ2037Y3MDY-0RZA41Australia
Mixing chassisLHDYC4D130-48diesel oil96/1303600545ZHF7.6TBJ5145GJB00-01DA05the Philippines
 Chenglong Small Transit Concrete Cement Mixer Truck 6CBM Yuchai 160hp
FOTON  6x4 Transit Cement Concrete Truck Mixer 8m3 9m3 10m3 (SINOTRUK HOWO SHACMAN JAC )
FOTON 8x4 Transit Cement Concrete Truck Mixer 12m3 14m3 16m3 (SINOTRUK HOWO SHACMAN JAC )
Japanese Brand GIGA Transit Concrete Cement Mixing Concrete Mixer Truck 14-16m3 8x4 Euro 6

8m3 , 9m3 , 10m3 JAPANI/SUZU Mobile Concrete Mixer Truck 6x4 With Hydraulic System Transit Concrete Cement
