| DIMENSIONS | ||||
| Tare Weight | 12500kg | |||
| Overall Length | 13285mm | |||
| Overall Width | 3000mm | |||
| Payload | 100000kgs | |||
| Work deck length: | 10000mm | |||
| Work deck Height: | 700mm | |||

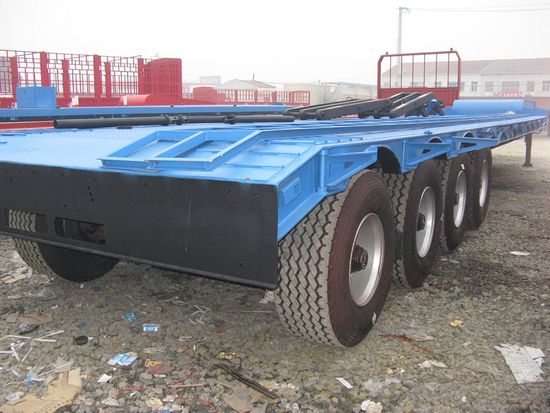

| Photo for reference. Final products can be made according to exact requirements | ||||
| SPECIFICATIONS | ||||
| I Beam& Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 20mm,width 140mm; Middle Flange 16mm,Height 500mm, Bottom Flange 25mm,width 140mm. | |||
| Axle | 4 axles | |||
| Suspension | FUWA brand 13Tons | |||
| Floor | 5mm checker plate | |||
| Leaf Spring | 10 pieces Leaf spring | |||
| King Pin | JOST brand 2" Bolt-in King Pin | |||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |||
| Wheel Rim | 7. 5-20 wheel rim, 17pieces including one spare | |||
| Tire | 10.00R20,17pieces including one spare | |||
| Ramp | Mechanical ramp with spring | |||
| Spare Tire | One set of spare tire including a carrier | |||
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | |||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | |||
| Accessories | One standard tool box | |||
