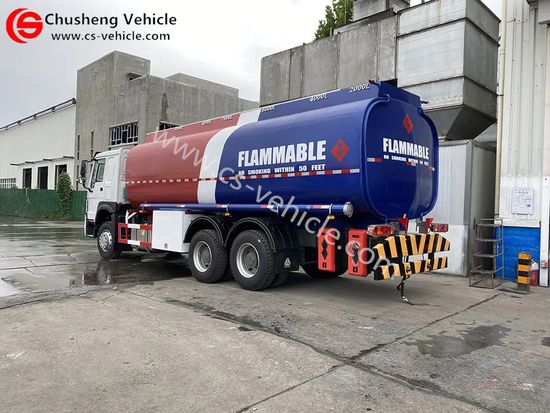

Sinotruk 20000 liter fuel tank truck
Oil tanker truck, fuel tanker truck, petroleum tanker truck, which are mainly used for transporting oil.some oil tanker truck could be also a refueling tank truck, with refueling device.
Our company also produce the oil tank trailer,the manufactuere standard could be according to European standard.
API device.
oil tanker truck volume form 3000~ 35000 liters
Oil tank trailer volume from 40000~70000 liters.
Main specification
| Cabin | HW 76 cab, with one bed and air condition, 70°hydraulically tillable to the front | ||||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 11000x2500x3300 | |||
| Wheel base (mm) | 1350+4600 | ||||
| Wheel track (front/rear) (mm) | 1500/2900 | ||||
| Approach/Departure angle(°) | 12/16 | ||||
| Weight in KGS | Tare Weight | 13540 | |||
| Payload | 11300 | ||||
| Front axles loading capacity | 1*8000 | ||||
| Rear axles loading capacity | 2*16000 | ||||
| Max. driving speed(km/h) | 90 | ||||
| Engine | Brand | Sinotruk | |||
| Model | WD615.69 | ||||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||||
| Horse Power(HP) | 336HP | ||||
| Emission standard | Euro II | ||||
| Gearbox | 10 Forwards gear & 2 reverse gear | ||||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | ||||
| Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | ||||
| Fuel tank (L) | 300 | ||||
| Tire | 12R22.5 tyres,13 pieces | ||||
| Brakes | Service brake: dual circuit compressed air brake | ||||
| Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels | |||||
| Auxiliary brake: engine exhaust valve brake | |||||
| Tanker body | |||||
| Volume | 20 CBM with compartement | ||||
| Thickness | End plate | 5mm in high tensile strength steel | |||
| Tanker body | 4mm in high tensile strength steel | ||||
1.CHUSHENG VEHICLE GROUP CO.,LTD. is a famous and the biggest manufacturer with very professional experience
in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory
scale is more than 690,000 m2.
2.Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck,
Garbage Truck,Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck,
Van Truck,Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck,
Milk TransportTruck, LED Advertisement Truck,Various Semi-trailers, Spare parts etc.
3.We have successfully exported to more than 60 countries and regions, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria,
Benin, Angola,Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico,
Chile, Bolivia,Tanzania, Zambia, Zimbabwe, Yemen etc.
4.Our product have passed the ISO9001 quality system certification, and CCC certificate.
Nude and wax, shipped by bulk vessel, RO-RO vessel, container vessel or by flat rack
(1)Wax:
Do wax spray process to against the trailer body suffer seawater corrosion during shipping
(2)Package:
Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping:
Reliable logistic service from famous freight supplier makes transport process safely and promptly
