XGCS078
1 Year
1 Year
Semi-Trailer
30T
ISO9001, CCC, ISO/TS16949
1310
2240mm
13800kgs
Mechanical Suspension
Oval
3
12
Not Self-dumping
ABS Anti-lock Braking System
Steel
New
16950kgs
xgcs
Wax or as Your Request
12990x2500x3990
China
Product Description

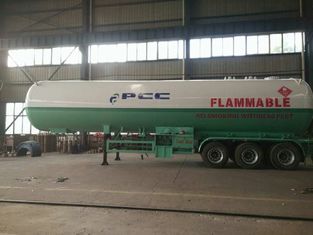

Picture of LPG storage semi trailer( for Vinyl Chloride transportation )
Main paremeters of low bed LPG gas storage semi trailer
Package and shipping
Certificate
Customer Visiting
Company introduction
1. Hubei Chusheng Vehicle Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
** We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict
inspection before delivery, excellent packing and shipping team.
Factory Fast View
Other product range:
1.Water Truck 2.Insulated Truck and Milk Truck 3.Sewage Suction Truck
4.Garbage Truck 5. High-altitude Operation Truck/Truck with Crane
6.Fuel Truck 7.Chemical Liquid Truck 8.Bulk Cement Truck
9. Concrete Mixer Truck 10.Tractor 11.Semi-Trailer
12. Fire Fighting Truck 13.Dump Truck 14.Van Truck/Refrigerated Truck/Refrigeration Truck
15.Wrecker/Tow Truck 16.Flatbed Truck/Low Bed Truck 17.Sweeper Truck
18. High Pressure Cleaning Truck 19.Liquefied Gas Transport Truck20.Pressure Vessel
Main paremeters of low bed LPG gas storage semi trailer
Features:
1) lpg tank semi trailer capacity
30,000liters, 35,000liters, 40,000liters, 50,000liters, 53,000liters, 56,000liters, 59,520liters.
2) lpg tank semi trailer material
Q345R Q370R SA516
3) lpg tank semi trailers production flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
4) Main parts of lpg tank semi trailer
Liquid phase, vapor phase, floating ball level gauge, magnetic level gauge, safety valves, cut-off valves, needle valves, pressure gauge, thermometer, fire extinguisher, 2" or 3" king pin.
5) SONCAP, BV, SGS ASME certificate for Nigeria market
Technical parameter for LPG TANK SEMI TRAILER
| 59.52 CBM LPG Tank Semi Trailer | |
| Volume of Tank (cbm) | 59.52 |
| Tare Weight (kg) | 15000 |
| Capacity (kg) | 25000 |
| Thickness of Shell (mm) | 11.5 |
| Thickness of Endplate (mm) | 11.5 |
| Nominal Diameter (mm) | 2475 |
| Wheel Base(mm) | 7230+1310+1310 |
| External Dimensions (mm) (length×width×height) | 13000*2500*3990 |
| Tank Dimensions(mm) (Diameter×thickness×length) | 2475*11.5*12837 |
| Material of Tank | Carbon Steel Q345R |
| Filling Medium | Liquefied Petroleum Gas (propane) |
| Design Pressure(MPa) | 1.61 |
| Corrosion Allowance(mm) | 1 |
| Medium Density(kg/ cbm) | 420 |
| Axle | 3*13T BPW |
| Tire | 12R22.5 Tubeless tire ,12 with one spare tire |
| Landing leg | JOST Brand |
| King Pin | JOST Brand |
| Accessories: Safety valve, Liquid valve 2", Vapor valve 2", Level gauge, Pressure gauge, Thermometer, Emergency Cut-off valve, Tool boxes, Fire extinguishers. | |
