China Supplier Tipper Truck Trailer Type 3 Axles Dump Semi-traile for Sale
Dump tipping semi trailer is specially designed for heavy good transportation, like stone and mining materials. It is strong enough to carry up 80T in long distance delivery, rough road situation.
Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
Dump tipper trailer are equipped with HYVA cylinder, which is more reliable and more safety
Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
We suppply tipper semi trailers with multiple customization options.
Technical parameter for tipper semi-trailer
DIMENSIONS | ||
Tare Weight | 17500kgs | |
Payload | 25000kgs | |
Overall Length | 9900mm | |
Overall Width | 2465mm | |
DUMPER BODY | ||
Volume | 25cbm | |
Side Wall | 6mm thickness | |
Front Wall and floor | 8mm thickness | |
SPECIFICATION | ||
Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, Top Flange 16mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 20mm,width 140mm. | |
Axle | 3 axles/4axles | |
Three units of Huajing(Brand) 12Ton axle | ||
Hydraulic System | One set of HYVA cylinder | |
Suspension | German type heavy duty mechanical suspension | |
Leaf Spring | Mechanical suspension with 8-pcs leaf spring,16*90mm | |
King Pin | JOST brand King Pin, 60#(2 inches) | |
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
Wheel Rim | 9.00-22.5 wheel rim for rear 3 axles , 11.75-22.5 rims for front 3 axles , 18 pcs totally | |
Tire | 13 units of Rim 9.00R22.5 & Double Coin Tyre 12R22.5 | |
Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | |
Accessories | One standard tool box | |

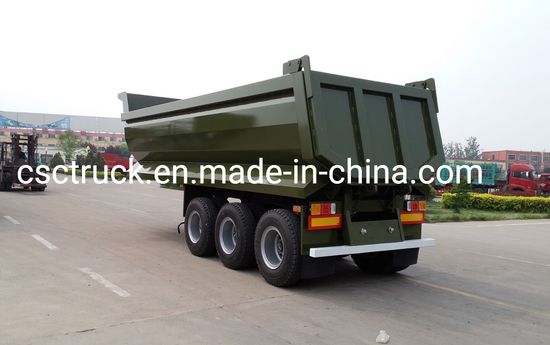

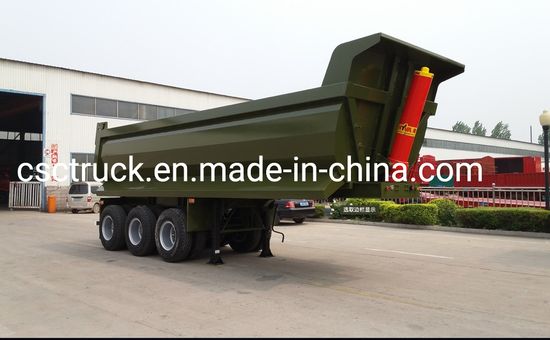

3 axles/4axles Details Images:
Dump truck semi-trailers can be shipped by bulk, ro-ro or containers.
1. Hubei Chusheng Vehicle Group Co., Ltd. is a famous and the biggest manufacturer with professional experience in special automobile field for more than 20 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our products have been exported to 60 countries, including Middle East, Asia, Africa, Eastern Europe and other countries and regions. Our product have passed the ISO9001 quality system certification, and CCC certificate.
3. Our company has more than 1000 units advanced production equipments, forming production lines for dump trucks, tank trucks, wrecker trucks, garbage trucks, other special trucks and semi-trailer, with an annual output of 50,000 units production capacity.
Our Services
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service:
1. Lifetime free maintenance and upgrade. Spare parts could be supplied by cost price.
2. Free technician training, engineer abroad for customer service.
3. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
4. Special service for big project, such as stadium, exhibitions, squares and so on.
FAQ
Q1. Are your manufacturer ?
A : Yes. We can totally manufacture the trucks as you required.
Q2. Do you have a good organization of shipping vessle ?
A : Yes, we have a good and long term cooperation with the world first class famous shipping company line, like MSK,PIL, SUNSHINE SHIPPING, ETC. The order over 500 units of vehicle, we will lease a vessel.
Q3. How about your warranty items?
A : We supply original spare parts of our vehicles, if you need, we will show you spare parts list for your choosing to make sure daily maintain of your vehicles.
Q4. Can I be your agent in my country?
A : It is Ok if the order is appropriate, we looks forward to long-term cooperation with you.
