ZJV9408
Semi-Trailer
50T
ISO9001, CCC, ISO/TS16949
7000-8000mm
1820mm
Heavy Duty
Cross Arm Type
Flatbed
Not Self-dumping
No ABS Anti-lock Braking System
Steel
New
New
Road Transport
Sinohtc
2, 3, 4
Fuwa, Yuek, BPW
40, 50, 60 Tons
HTC
Nude Packing
ISO
China
8716399000
Product Description

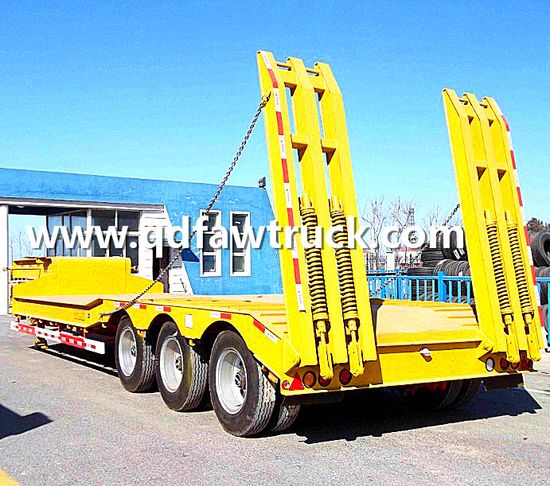

cimc trailers and semi-trailers/ 3 Axle Low Bed Trailer
Lowbed Semi Trailer, Lowbed Semi-trailer, Low bed Trailer, Low Bed Trailer, Low Bed Semi Trailer, Low Bed Semi-Trailer
Goose neck fixed five rounds load(kg): 35000
Size(lengthxwidthxhighth)mm: 4370X3000X2240
Load cylinder specification: 220/140-380
On changes the cylinder specification: 110/60-460
Below changes the cylinder specification: 110/60-380
Goose neck biggest turning corner: 70°
Goose neck five round junction plane height above terrain(mm): 1450
Splicing cargo plate of highth(mm): 1080
Turing radius(mm): According to trailer tractor size decision
Goose neck the kerb weight(kg): 8000.
Low Bed Trailer, Low Bed Semi Trailer, Lowbed trailer, Lowbed semi trailer, trailer truck, truck trailer, semi trailer, cargo trailer, heavy truck, trailer, container trailer, flatbed trailer, Low Bed Trailer size, Low Bed Trailer manufacturer, goose neck trailer, goose neck semi trailer, lowboy trailer, Low Bed Trailer supplier, Low Bed Trailer supply, Low Bed Trailer price
| Model | HTC9401 |
| Tear Weight | 7600Kg |
| Load capacity | 60,000 Kg |
| Overall dimension(mm) | 13680 x 3000 x 1590 |
| Wheelbase | 1350 + 1350mm |
| frame structure | Heavy duty extra & extra durability designed opting for high tensile steel Q345 welded by automated submerged MIG or ARC process MAINI BEAM: Height 450mm,Top flange:20mm, middle flange:12mm; Bottom flange:20mm, |
| Floor | Chequered steel sheet 3mm thickness. |
| Axles | FUWA 16 ton axle. |
| Axle Qty | Three |
| Suspension | Mechanical spring suspension. 10cm x 10 pics |
| Kingpin | 2 inch SAE standard welded and Bolt on. JOST (3.5'inch option) |
| Landing gear | Two -speed, manual operating, heavy duty landing gear, lifting capacity 28Ton & static capacity is 72ton dead load. |
| Tyre | 12 units of 12.00R20 tires |
| Rim | 8.5-20 |
| Spare wheel carrier | 1 set of Spare wheel carrier including a riser, with one spare wheel |
| Electrical system | 1 unit of JAEGER POWAY, 24 v 7-pin ISO 1185 standard socket; |
| Accessory | One 1.5m standard lockable tool box with a set of standard trailer tool |
| Color | As customer choice |
