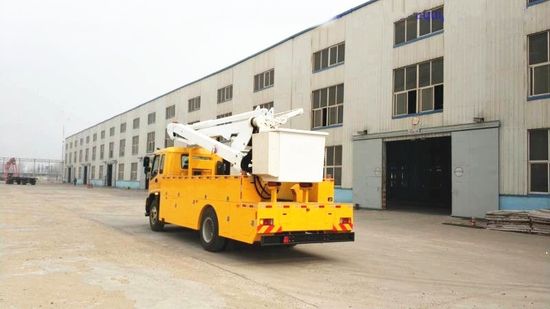

I. Details of FTR electric 20m 24m 22m 20 meters 22 meters 24 meters overhead working platform truck
Function:
working platfrom truck (also named Aerial Boom Lifting Truck, man lift truck, man lifting truck, Cherry Picker,Telescopic aerial platform truck, overhead working truck, truck platform, beamlifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard, cherry picking and other high aerial works.
Manufacturer: HUBEI MANTEN AUTOMOBILE CO.,LTD
» II. Aerial working platform Truck Specification
| Engine | Make: ISUZU 4HK1-TC50, 205HP | |
| Diesel 4-stroke direct injection diesel engine, Electronic control | ||
| Maximum torque: 510 Nm 1600 r/min Number of cylinder | ||
| Displacement: 5.193 L | ||
| Transmission | ISUZU MLD, Manual, 6 gear forwards and 1 reverse | |
| Front Axle | ISUZU 3T, Steering with doubleT-cross section beam | |
| Rear Axle | ISUZU 6T, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles . | |
| Ratio:4.1 or 4.33 | ||
| Brakes | Service brake: dual circuit compressed air brake, with ABS | |
| Wheels & Tyres | 10.00R20, with one spare tyre | |
| Driver's Cab | Standard cab, with 3 seats, 2-arm windscreen wiper system with three speeds, | |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw | |
| Alternator: 3-phase, 28 V, 1500 W | ||
| Batteries: 2 x 12 V, 165 Ah | ||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | ||
| Dimensions | Wheel base | 4500mm |
| Front wheel track | 1680mm | |
| Rear wheel track | 1650mm | |
| Front overhang | 1110mm | |
| Rear overhang | 2055mm | |
| Approach angle (0) | 20mm | |
| Departure angle (0) | 17mm | |
| Overall size | 8500x2500x3700mm | |
| Weight | Maximum Loading Capacity Gross vehicle weight | 15,000 kgs |
| Front axle loading capacity | 6300 kgs | |
| Rear axle loading capacity | 13000 kgs | |
| Performance | Maximum driving speed (km/h) | 95 |
| Maximum gradeability (%) | 34 | |
| Minimum ground clearance (mm) | 278 | |
| Fuel consumption (l/100 km) | 18 | |
| MANLIFT ( China Brand) | Bucket rated load: | 200kg |
| Insulation bucket | Yes | |
| Lower arm insulation length | 0.61m | |
| Upper arm insulation length | 4.40m | |
| Rotation platform | 360° continuous rotation, work bucket ±90° | |
| Swing speed | 0~2 r/min | |
| Wire voltage | 35KV | |
| Maximum Working height | 24m | |
» IV. Shipment
» V. Aerial working platform truck series
» VI. ABOUT US
HUBEI MANTEN AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck , refrigerated truck and etc. Main info as below:
(1) More than 500 workers, large and advanced production;
(2) 25 professional engineers, can offer the best and cheapest design;
(3) Build strict QC team to guarantee the quality;
(4) 1 year or 30,000km warranty which comes first.
(5) One set of spare parts of chassis provided which will help you save money on maintenance.
(6) Provide technical support and after serive for life.
(7) Professional sales team which will help you to choose suitable truck.
Welcome to contact with us for more info. We will offer you the best truck as we can .
