MTC220303
24 Hours Service
12months
GS, RoHS, CE, ISO9001
New
15-20m
14-16t
3
Three-Arm
Straight Arm
Dongfeng
210HP
10.00r20, with One Spare Tyre
14m
10ton
MANTEN
Naked
12500*2550*4050mm
Hubei, China
8704230090
Product Description
* Dongfeng 6x4 Hydraulic Telescopic Boom Straight Arm Truck Crane for construction use*
Products--100% First Class!
Transportation--100% Convenience, Efficient!
Services--24hours service!
---------------------------------------------------------------------------------
Our factory is professional manufacturer in truck area,
guarantee all trucks Brand-New and High-Quality.
» I.Product Describution:
Manufacturer: Hubei Manten Automobile Co.,Ltd.
It's a cargo truck with mounted crane,whichcould be telescopic boom crane or foldable boom crane.
FEATURE:
Pre Sale Service: 1. Technical Communication With Engineer
2. Factory and Workshop Visit.
3. Making Design Drawings according to customer request.
After Sale Service: 1. Customizing Installation & Commissioning
2. Spare Parts Support
3. Technical Support
Chassis: According to your request, choose various chassis and refit it to truck.,
such as:ISUZU,DONGFENG,SINOTRUCK,JAC,SHACMAN,FOTON,FAW ...
Upper Body: Can supply only upper body without chassis according to your chassis drawing , design function parts.
Crane brand: China various famous brand
Customization: Communicate with engineer, making design drawings and produce customized products.
Spare Parts: Supply all kinds of spare parts on chassis and upper body, replace main parts on trucks as tank and box.
Warranty: From the date of receiving, in normal using within 30,000 km or within one year, we will repair for free,Technical support and commissioning are free always.
» II.Product Parameter:
| Chassis parameters | |||
| Chassis model | EQ1258KBS | Chassis brand | DONGFENG |
| Overall dimensions | 10960x2550x3990mm | Wheel base | 4350+1300mm |
| Chassis Manufacturer | Dongfeng Motor Company | ||
| Cab | Configuration | a row cab, allowable 3 passengers with A/C | |
| Color | White,other color is optional | ||
| Engine | Model | B210-33 | |
| Emission | Euro 3 | ||
| Type | 6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling | ||
| Rated power | 210hp | ||
| Displacement | 5900ml | ||
| Max.torque | 700 N·m | ||
| Manufacturer | Dongfeng Cummins Engine Co., Ltd | ||
| Tire | Size | 10.00R20 | |
| Number | 10+1 nos | ||
| Front axle | 5.0 tons | ||
| Rear axle | 10.0 tons | ||
| Drive form | 6x4 | ||
| Crane Parameters | |||
| CRANE Model | SQ10SK3Q | Max Lifting Capacity(kg) | 10,000 |
| Max Lifting Height(m) | 14 | Max working radius(m) | 12 |
| Max Lifting Moment(T.M) | 25 | Recommend Powe(kw) | 30 |
| Max Oil Flow of Hydraulic System(L/min) | 63 | Max Pressure of Hydraulic System(MPa) | 26 |
| Oil Tank Capacit(L) | 160 | Rotation Angle | all Rotation |
| Crane Weight(kg) | 3800 | Installation Space(mm) | 1150 |
Optional additional configuration:
» III.Product Details:
3.1.Crane truck apperance picture:
3.2 Crane picture:
3.3 Process and configuration:
| ΔStrengthened Cross-beam Girder reinforced structure of secondary beam, with strong carrying capacity. | ΔCustomized Cargo Cargo size, material and appearance can be customized as customer's requirements. |
| ΔTelescopic Boom lifting capacity from 1ton to 25tons, China various famous brand aviable. | ΔFoldable boom lifting capacity from 1ton to 30tons, China various famous brand aviable. |

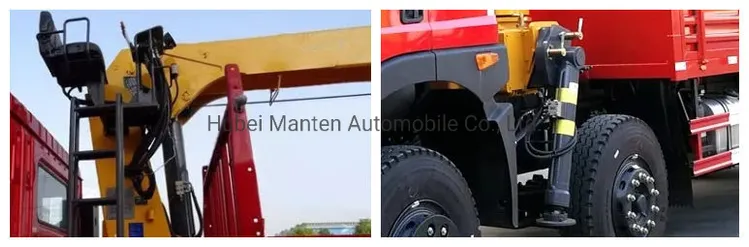

| ΔAerial Work Seat Aerial operation, work vision is wider. | ΔFront & Rear Hydraulic Outriggers Double arms double cavity composite type hydraulic outriggers, more stable |
» IV.Company Intorduce:
» V. Professional packing and transprotation:
- Thick wax polished on products before shipping to protect.
- Use container, RORO/bulk ship or others as your requirement.
- We provide transportation insurance to guarantee the new and great condition of products for customers.
YOU ARE ALWAYS WELCOMED TO VISIT OUR FACTORY!
