MTS220304
24 Hours Service
12months
Diesel
ISO9000, CCC, CE
Euro 5
New
10ton
10ton
20FT
MANTEN
Naked, Waxed, Bulk Ship, RO-RO
12800*2500*3500mm
Hubei, China
8704230090
Product Description

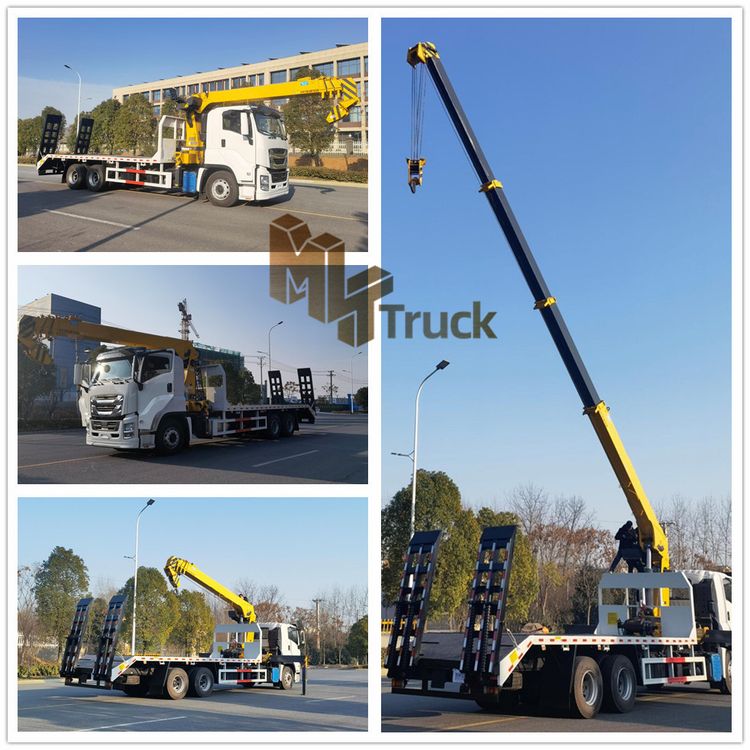

* ISUZU 6X4 CYZ 10 Wheels 10Ton Telescopic Boom
Self Loading Truck with 10ton winch *
----------------------------------------------------------------------------
Our factory is professional manufacturer in truck area,
guarantee all goods Brand-New and High-Quality.
» I.Product Describution:
Manufacturer: Hubei Manten Automobile Co.,Ltd.
Self loading transport truck, also called excavator transport truck, is specially designed and produced for transporting engineering mechanism(such as excavator, loader), farming mechanism(such as harvestor , rice transplanter, cultivator), and other special equipment or big mechanisms which are not suitable for long distances traveling.
» II.Product Parameter:
| Chssis | Model | ISUZU GIGA |
| G.V.W. | 33000kg | |
| Curb Weight | 94000kg | |
| Wheel base | 5820+1370mm | |
| Drive type | 6x4 | |
| Engine model | 6WG1-TCG51 | |
| Engine Power | 460PS | |
| Disaplacement | 15681ml | |
| Tire | 12R22.5 18PR | |
| Crane | Type | Telescopic boom crane |
| Max lifting capacity | 10000kg | |
| Max Lifting Height | 15.8m | |
| Max lifting moment | 25T.M | |
| Max working radius | 13.8m | |
| Flatbed Body | Length | 7800mm |
| Width | 2500mm | |
| Feature | The plate width can be telescopic and extended for 3.2 m operated manually. | |
| Bottom beam | 120x120x5mm GB square steel | |
| Thicness | 8mm checkered plate with antiskid | |
| Mechanical ramp | Type | mechanical spring |
| Length | 2200mm | |
| Material | All Steel Ramp | |
| Feature | It adopts heavy load strengthening design, and three reinforcement ,double spring reinforcement treatment, with rear outrigger | |
| Winch | Type | 10ton,45m,18mmthick |
» III.Product Details:
3.1. Front outrigger:
Hydraulic control, which realizes the vertical and horizontal expansion and contraction of the outrigger by shifting the control levers.
Hydraulic control, which realizes the vertical and horizontal expansion and contraction of the outrigger by shifting the control levers.
3.2. Rear outrigger:
Manual control, Slide the fixed hook forward to unlock
Manual control, Slide the fixed hook forward to unlock
3.3 Winch:
Hydraulic winch can increase the types of transportation and realize multi-function in one vehicle
Hydraulic winch can increase the types of transportation and realize multi-function in one vehicle
3.4 Telescopic plate:
The plate width can be telescopic and extended for 3 m operated manually.
The plate width can be telescopic and extended for 3 m operated manually.

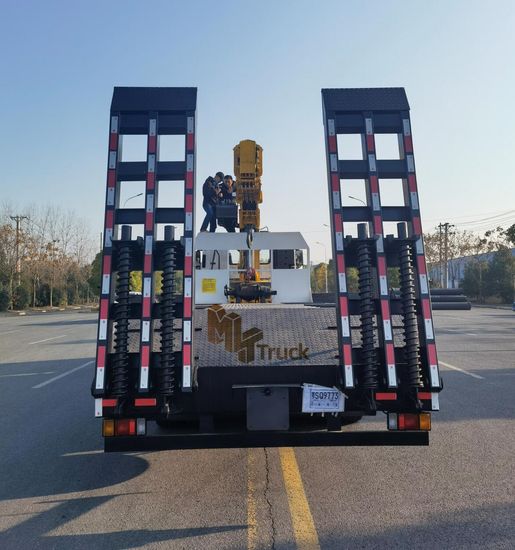

3.5 Mechanical ramp:
It adopts heavy load strengthening design, and three reinforcement +double spring reinforcement treatment to reinforce the welding.
It adopts heavy load strengthening design, and three reinforcement +double spring reinforcement treatment to reinforce the welding.
3.6 Crane :Lifting capacity: 16ton
It can be realized by shift the control levers upward or downward to lift boom and hook, slew the column.
It can be realized by shift the control levers upward or downward to lift boom and hook, slew the column.
Optional configuration:
Δ.Front hydraulic lifting Outriggers:
Optional to choose Front hydraulic lifting device:
Reduce the difficulty of climbing and made a gentle slope
Reduce the difficulty of climbing and made a gentle slope
Δ.Removable side and rear plate cargo box:
Optional to choose Removable side and rear plate cargo box :
Except to carry construction machinery, it can also carry bulk cargo
Except to carry construction machinery, it can also carry bulk cargo
Δ.Hydraulic folding ladder:
Optional to choose Hydraulic folding ladder:
Increase the length of ladder and reduce the gradient of climbing ladder
Increase the length of ladder and reduce the gradient of climbing ladder
Different Series:
1.Drive type: 4x2,6x4,8x4
2.Loading capacity:10ton-30ton
3.Ladder: Spring ladder, Hydraulic ladder, Mechanical folding ladder, Hydraulic folding ladder
4.Winch towing capacity: 4-12ton
5.Flatbed body: Flatbed plate or removeable cargo box
6.Crane lifting capacity: 2-20ton
7.Outrigger: Front lifting outrigger, hydraulic telescopic outrigger, fixed Outrigger
» IV.Company Intorduce:
» V. Professional packing and transprotation:
- Thick wax polished on products before shipping to protect.
- Use container, RORO/bulk ship or others as your requirement.
- We provide transportation insurance to guarantee the new and great condition of products for customers
YOU ARE ALWAYS WELCOMED TO VISIT OUR FACTORY!
