HAT1601DF
24 Hours Online
1 Year
Z
ISO9000, CCC, CE
Euro 3
120HP
5tons
Diesel
Manual
4x2
New
Dongfeng (Isuzu, Jmc, JAC, Foton)
16m
MANTEN
Bulk Ship or Roro
8260x1990x3140mm
China
8705909990
Product Description
Dongfeng 16m Truck Mounted Boom Cherry Picker
I. Product Description
II. Product Specs
| Dongfeng 16m Truck Mounted Boom Cherry Picker | |
| MAIN DESCRIPTION | |
| Overall Dimensions | 8260x1990x3140 mm |
| Tare Weight | 7640 kg |
| Wheelbase | 3800 mm |
| CHASSIS | |
| Chassis Brand | ISUZU |
| Cab | double row seats, with A/C |
| Engine | Chaochai 120hp |
| Gear Box | WLY, 5F+1R |
| Axles number | 2 |
| Tires | 7.00R16, 6 pieces + 1 spare |
| Parameters for high altitude operation platform | |
| Max working height | 16m |
| Max working radius | 9.2m |
| Max working radium while in the max working height | 4.8m |
| Max loading weight of the basket in the top | 200kg |
| Landing gear | Type: H shape |
| Quantity : 4 pieces | |
| Max outrigger transversal span :3640 mm | |
| Max Longitudinal span: 3810 mm | |
| Operation system | Rotary platform and lifting basket can operate; |
| Operate type: manual or hydraulic | |
| Lifting arm | 3 telescopic arms |
| slewer device | 360 degree continuous turning |

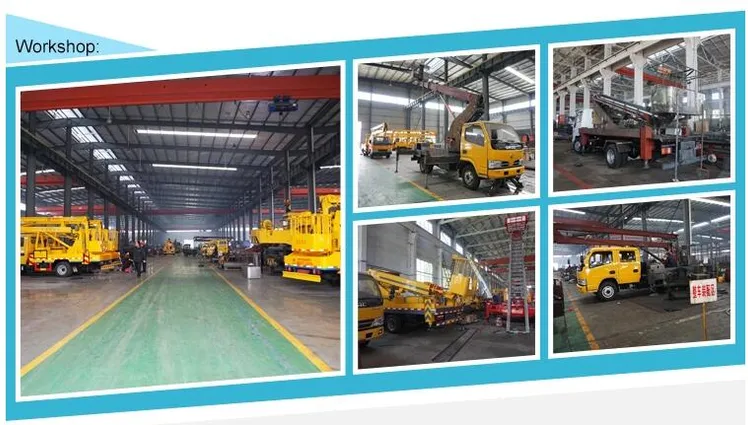

III. Factory Show
