WTT5001HW
24 Hours Online
1 Year
ISO9000, CCC, CE
Euro 2
Manual
50T
Diesel
Powered Mechanical
SINOTRUK
New
MANTEN
by Bulk Ship or Roro-Ship
12000*2500*3450mm
China
8705909990
Product Description

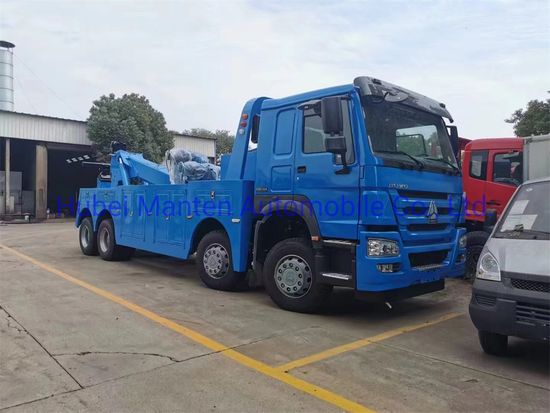

SINOTRUK HOWO 50t 360 Degree Rotary Wrecker Towing Truck
--------------------------------------------------------------------------
*Products--100% First Class!*
*Transportation--100% Convenience, Efficient!*
I.Product Description
The full name of wrecker truck is named road wrecker truck, also called trailer and road rescue truck. It has the powerful function and can carry two cars atthe same time. It is the ideal choice for road management department and automobile repair plat to proceed to the road repair and rescue.
II.Specifications
III. Related products
IV.Company Information
--------------------------------------------------------------------------
*Products--100% First Class!*
*Transportation--100% Convenience, Efficient!*
I.Product Description
The full name of wrecker truck is named road wrecker truck, also called trailer and road rescue truck. It has the powerful function and can carry two cars atthe same time. It is the ideal choice for road management department and automobile repair plat to proceed to the road repair and rescue.
II.Specifications
| Chassis Parameters | |||||
| Chassis Model | SINOTRUK HOWO ZZ1317 | ||||
| Cab Model | HW76 a row and a half deluxe cab(with sleeping bed), allowable 3 passengers | ||||
| Drive Type | 8x4, Right Hand Drive | ||||
| Dimension (Lx W xH) | 12000×2500×3500 mm | ||||
| Wheel base | 1800+4600+1350 mm | ||||
| Approach / departure angel | 16/14° | ||||
| Front/rear suspension | 1500/2734 mm | ||||
| Axles | HF9 / HC16 | ||||
| Engine | Model | SINOTRUK WD615.47 | |||
| Max. output | 371hp/ 273kw | ||||
| Displacement | 9.726L | ||||
| Emission | diesel, EURO II | ||||
| Type | 6 cylinders, in-line, 4-stroke, water cooled, turbocharged inter-cooling, direct injection | ||||
| Gearbox | HW19710, Manual, 10-Forward & 2-Reverse | ||||
| Steering | ZF8118, Power assisted steering, Right Hand Drive | ||||
| Suspension | Multi leaf springs | ||||
| Tyre | 12.00R20, 12+1 pcs including one spare tyre | ||||
| Fuel Tank Capacity | 400L Alluminum Tank | ||||
| Max Speed | 105km/h | ||||
| Wrecker Structure Parameters | |||||
| Boom | Max Lifting Weight | 50000 kg | |||
| Boom extended length | 4500 mm | ||||
| Max. Lifting Height | 12300 mm | ||||
| Inclination Angle | 5- 60° | ||||
| Rotating Angle | 360° | ||||
| Number of Stages | 3 Stages | ||||
| Outriggers | Rated Lifting Weight | 12500 kg | |||
| Rated Lifting Fully Extended Weight | 4500 kg | ||||
| Longitudinal Span between Front Outrigger and Rear Outrigger | 7350 mm | ||||
| Transverse Span of Front Outriggers | 5490 mm | ||||
| Transverse Span of Rear Outriggers | 4387 mm | ||||
| Rated Towing Weight | 35000kg | ||||
| Length of Cable Wire | 55m | ||||
| Equipment | High quality hydraulic part, single-level telescopic lifting arm, two units of hydraulic winch 25ton, tool box, two outriggers, manual operation device, two floodlight, one alarm lamp and basic accessories | ||||
