I. Details of New ISUZU 20ton 22cbm 25000Liters Hook Arm Lift Garbage Rear Loader Dump Truck
(1) Functions:
HOOK LIFT Garbage truck (also called hooklifting garbage truck, hook lifting garbage truck, waste collection truck, rear tipping garabge truck, refuse truck,waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing repollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.
(1) More than 12 years professional manufacturer experience.
(2) CCC ISO9001 agreement
(3) Be designed according to your requirements
(4) Small order can be accepted
(5) We accept 100% inspection, welcome to our factory at any time
(6) 12 month quality guarantee term
We can offer 4x2, 6x4, 8x4, Dongfeng, Sinotruck, FOTON, SHACAN, FAW, CAMC, ISUZU, JMC, JAC with 3m3 to 20m3 garbage compactor trucks.
| SPECIFICATION SHEET | ||||
| Chassis parameters | ||||
| Chassis model | QL5330GX | Chassis brand | ISUZU | |
| Overall dimensions | 9500*2500*3500mm | Wheel base | 4605+1300mm | |
| Front/rear wheel track | 1960/1860mm | Front/rear suspension | 1450/1250mm | |
| Approach/departure angle | 24/12° | Maximum speed | 90km/h | |
| Cab | Configuration | isuzu VC46 single air suspension cab, with air conditioner, allowable 3 passengers, with ABS, with air suspension seat | ||
| Color | white,other color is optional | |||
| Engine | Model | ISUZU 6UZ1-TCG40 or ISUZU 6UZ1-TCG51 | ||
| Emission | Euro 4 or Euro5 | |||
| Type | 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,4- valve,diesel engine | |||
| Rated power | 350hp | |||
| Displacement | 9839ml | |||
| Max.torque | 1422N·m | |||
| Tire | Size | 11.00R20 Tire, With one spare tyre | ||
| Number | 10+1 nos | |||
| Front axle loading | 7tons | |||
| Rear axle loading | in total 18tons | |||
| Rated voltage | 24V,DC | |||
| Transmissions | FAST, 9 gears frowards and 1 reverse. | |||
| Steering device | Power assisted steering | |||
| Steering wheel | Left hand drive | |||
| LIFTING SYSTEM | ||||
| Dumper | All-metal,size L*W*H (5.7m*2.2m*1.9m), about 22 cubic meters | |||
| Sidewalls | Sheet carbon steel (thickness: 5 mm) | |||
| Bottom | Sheet carbon steel (thickness: 6 mm) | |||
| Discharge time | 40S-50S | |||
| Discharge system | lifting/dump type | |||
| Dump angle | 50 degree | |||
| Hydraulic system pressure | 30Mpa | |||
| Standard equipemnt | ITALY BRAND Hydraulic oil pump and operation valve, balance valve, hydraulic lock, main operation oil cylinder of hook arm, sliding oil cylinder of sleeve arm, hydraulic oil pipe , hydraulic oil tank, Hydraulic strengthen rear outrigger. Operation way: Manual and Wireless remote control operation. one 22m3 dumper box, | |||
III. HOOK LIFT GARBAGE TRUCK DETAILS
Automatic control-- The hydraulic control operation system can be controlled by electric and manual, one operation system button installed in the cab, the other operation system button installed at the back of the upper body.

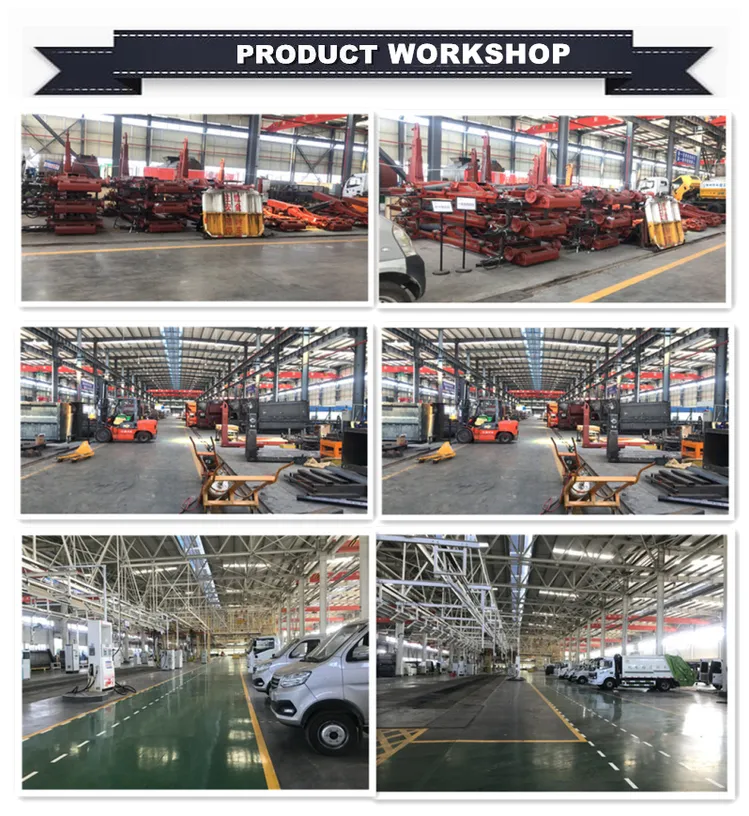

IV. HOOK LIFT GARBAGE TRUCK WROKSHOP
There are more than 500 workers in our factory. Every production details are strictly controlled by our technicial engineers and production manager.
V. OUR OTHER GARBAGE TRUCK SERIES
VI. PRODUCT SHIPPING (RORO OR BULK SHIP OR CONTAINER)
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
VII. COMPANY INFO
HUBEI MANTEN AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck , refrigerated truck and etc. Main info as below:
Welcome to contact with us for more info. We will offer you the best truck as we can .
