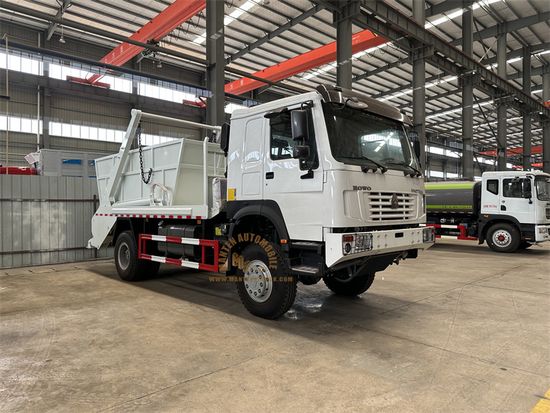

I. Details of SINOTRUK HOWO 4x4 10CBM 10T 8CBM 8CBM Ampliroll Garbage Truck
(1) Functions:
Skip loader garbage truck (also called swim arm truck, roll on and off garbage truck, refuse collection truck, refuse collection swing arm garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
The skip loader garbage truck can be used in urban erea and suburb.The container on the rear of the truck can be put down on the ground to gather garbage at a fixed location .when the container gathers full.the truck lift it on the flat bed on the rear of the truck.then dump the garbage in the garbage center.
The operation system could be manual or electrical control.
(1) More than 12 years professional manufacturer experience.
(2) CCC ISO9001 agreement
(3) Be designed according to your requirements
(4) Small order can be accepted
(5) We accept 100% inspection, welcome to our factory at any time
(6) 12 month quality guarantee term
We can offer 4x2, 6x4, 8x4, Dongfeng, Sinotruck, FOTON, SHACAN, FAW, CAMC, ISUZU, JMC, JAC with 3m3 to 20m3 garbage compactor trucks.
II. Specs of SINOTRUK HOWO 4x4 10CBM 10T 8CBM 8CBM Ampliroll Garbage Truck
| Chassis parameters | ||||||
| Chassis model | ZZ2167M4627A | Chassis brand | SINOTRUK HOWO | |||
| Overall dimensions | 8000x2500x3320mm | Wheelbase | 4600mm | |||
| Cab | Configuration | HW76 single row and a half cab ,air conditioner,allowable 3 passengers | ||||
| Color | white,other color is optional | |||||
| Engine | Model | Weichai WP10.300E22 | ||||
| Horsepower | 300hp | |||||
| Emission | Euro II | |||||
| Type | 6 cylinders, in-line, turbo inter-cooling | |||||
| Displacement | 9726ml | |||||
| Tire | Size | 12.00R20 | ||||
| Number | 6+1 nos | |||||
| Front axle | STR | |||||
| Rear axle | ST16 | |||||
| Drive form | 4x4 | |||||
| Rated voltage | 24V,DC | |||||
| Transmissions | Gearbox HW15710, 10 speed forward 2 reverse. | |||||
| Steering device | Power assisted steering | |||||
| Steering wheel | Right hand drive or Left Hand Drive | |||||
| Swing arm garbage truck structure parameters | ||||||
| Garbage container dimensions | 4000x2200x1300mm | Garbage container volume | 10CBM | |||
| Garbage container material | Carbon steel | Side wall | 3mm | |||
| Bottom plate | 4mm | Color and Logo | Optional | |||
| Standard configuration | Chassis,sub frame,two balancing valves, two domestic oil cylinders,web plate,one garbage container,rear hydraulic legs,unloading container locking pins. | |||||
| Selective configuration | Garbage container cover. | |||||
III. Details and Operation of Swing Arm Garbage Truck
Load operation is less than 30 seconds, unloading operation time is less than 45 seconds;
Can choose 240L(single bin,double bins)or 360L,660L,1100L standard bin lifting and turnover mechanism,can also choose ground hopper and other kinds of loading mechanism.
Automatic control-- The hydraulic control operation system can be controlled by electric and manual, one operation system button installed in the cab, the other operation system button installed at the back of the upper body.
IV. SKIP LOADER GARBAGE TRUCK OPERATION
V. Production workshop
There are more than 500 workers in our factory. Every production details are strictly controlled by our technicial engineers and production manager.
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
