Product Description:
*Famous brand HOWO 4x2 5ton Towing Flat Wrecker Road Rescue Truck with Winch*
Products--100% First Class!
Transportation--100% Convenience, Efficient!
Services--24hours service!
Our factory is professional manufacturer in truck area,
guarantee all trucks Brand-New and High-Quality.
» I.Product Describution:
Manufacturer: Hubei Fuya Vehicle Co.,Ltd.
1. Purpose of Recovery Truck: Breakdown Vehicle /wrecker/recovery truck/towing truck is used for towing break-down cars or vehicle or bus or trailers on road. With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of Recovery Truck : Howo,Dongfeng,JAC,JMC,Foton,Shacman...
3. Spare parts of Recovery Truck: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of Recovery Truck: 3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton, 60ton
Tow truck consists of the chassis, hoisting equipment,towing hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.The tow truck can hoist and underlift heavy duty break down cars or trailers and also be with other special functions, mainly used in highway and city road obstacle cleaning.
Towing services are generally provided by an emergency road service operator. Vehicles are often towed in the case of breakdowns or collisions, or may be impounded for legal reasons. A tow truck has multiple functions such as lifting, pulled and lift traction. It is mainly used for road vehicle breakdown, city peccancy vehicles and emergency rescue etc.
New HOWO 5ton flat bed wrecker towing truck with winch 5ton
1. According to the payload, there are light duty tow truck, middle duty tow truck and heavy duty tow truck to suit for different types of motor vehicle.
2. The heavy duty tow truck could rescue the construction trucks, city bus and other types of heavy duty vehicles.
3. The heavy duty tow truck has a rotate crane or boom, lifting capacity reaches 30tons.
4. The wheel lift organ on the heavy duty tow truck could be more than 20 tons and the total towing capacity is more than 40 tons.
5. We have different brands of truck chassis to make the wrecker tow truck.
6. The tow truck chassis are Foton, SINOTRUK HOWO, Dongfeng, FAW, I-SUZU, JAC etc.

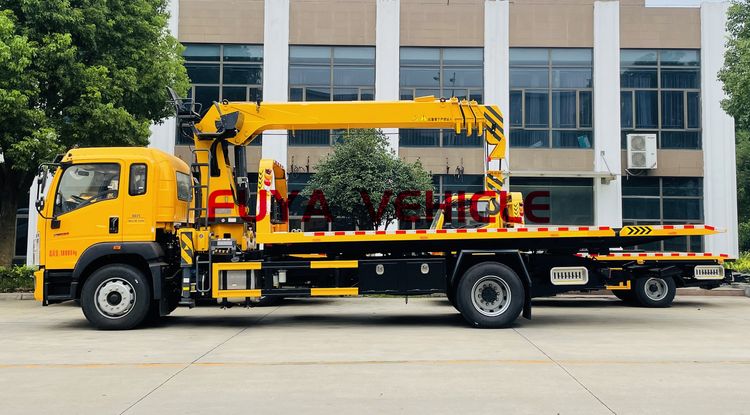

Pictures of the HOWO Wrecker Truck:
II. Technical data of New HOWO 5ton flat bed wrecker towing truck with winch 5ton
| Main parameters | Product model | FY5040WTZZ |
| Gross weight (kg) | 4495 | |
| Curb weight (kg) | 3800 | |
| Cab seats | 3 | |
| Number of axles | 2 | |
| Overall dimension(mm) | 5995X2300X2350 | |
| Wheel base(mm) | 3800 | |
| Max speed (km/h) | 90 | |
| Chassis parameters | Chassis model | ZZ1040 |
| Brand | sinotruk howo | |
| Fuel | diesel | |
| Number of wheels (mm) | 6+1 | |
| Tire specification | 7.50R16LT 10PR,7.50-16LT 10PR, 7.00R16LT 8PR,7.00-16LT 8PR, 8.25R16 | |
| Engine displacement (ml) | 2771 | |
| Engine power (kw) | 98 | |
| Emission standard | EURO 3 | |
| Upper informations | Care arm length(mm) | 1750 |
| Lift | 3T | |
| Winch | 4T | |
| Floor hook | Have | |
| Wheels | Have | |
| Automatic slide | Have | |
| Bind belt | Have | |
| Wheel cover | Have | |
| LED lights | Have |
(1) More than 12 years professional manufacturer experience.
(2) CCC ISO9001 agreement
(3) Be designed according to your requirements
(4) Small order can be accepted
(5) We accept 100% inspection, welcome to our factory at any time
(6) 12 month quality guarantee term
III. Wrecker tow truck details as below
IV. Our wrecker truck models
V. SHIPPING:RORO/BULK VESSEL/CONTAINER
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
VI. COMPANY INTRODUCE
HUBEI FUYA VEHICLE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck , refrigerated truck and etc. Main info as below:
Five characteristic:
1) High pressure dredging: large flow of high pressure water to burst through the blocked pipe, and flush the sludge to the mouth of the well. Using different nozzles can solve corresponding dredging problem in different working situation. Visible nozzle can test pipe while dredging.
2) Vacuum suction: roots vacuum pump with strong suction ability, suction hose can be put into the bottom of the well to suck the sludge. Suction is above 15m.
3) Sludge recycling: introduce from Europe new purification technology to purify sludge, then us purified water to dredge pipe, thus save energy, save time, enhance the working efficiency.
4) Separate mud from water: traditional combi jetting truck dewater the sludge by means of rosebox, this truck adopts screw extrusion of mud water separation device to separate mud from water, which has two advantages:reuse the water and save the space of sludge discharging.
5) Screw discharge: use advanced screw discharge, dewatered sludge can be transported by low cost sewage truck.
Six advantages:
1) high quality sewer hose.
2) servo sewer hose reel, servo close control.
3) Titanium ceramic nozzle, patent high pressure jetting technology, cleaning nozzle.
4) Conroller Area Network, intelligent control, 32 humanization design.
5) Stainless steel shell.
6) Dredging, suction, sewage recycling and screw extrusion can be operated simultaneously.
Company Information
HUBEI FUYA VEHICLE CO.,LTD which is appointed by Ministry of Industry and Information Technology of China, is a manufacturer producing all kinds of special trucks and semi-trailer.
We serve the best service for each client.
Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Exporting
As Manufacturer, We Have Our Own License Of Import And Export.We Have Successfully Exported To Ghana, Sudan, Nigeria, Angola ,Tajikistan, Namibia, Burma, Korea, Iran,American,Afghanistan,Iraq And Some Other Countries.The Development Of Our Factory Is Getting Better And Better.
