JAC 4X2 5ton -15c Refrigerated Freezer Van Truck for Ice Cream

Product detail

Model NO.:

CLW2015FF5420

Certification:

ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE

Payload:

Emission Standard:

Euro 3

Transmission Type:

Manual

Horsepower:

＜150hp

Fuel:

Diesel

Bearing Capacity:

Small (2-6t)

Car Type:

Condition:

Product Name:

Refrigerator Truck, Refrigerated Van Truck

Application:

Fruit, Vegetable, Milk, Fish, Meat, Ice Cream

Other Name:

Chiller Lorry

Refrigerator Unit:

Thermo King, Carrier, Huatai

Refrigeration Capacity:

-20 Deg Celsius to 20 Deg Celsius

Refrigerant Model:

R404-a

Van Plate Material (External):

Glass Fiber Reinforced Plastics

Plate Thickness (External):

2.6mm

Van Plate Material (Internal):

Film Coating Flat Aluminum Plate

Plate Thickness (Internal):

1.2 mm

Van Insulation Material:

Polyurethane Foam

Insulation Material Desity:

45~48 Kg/M3

Van Body Design:

Sandwich Panel

Insulation Reaction Temperature:

-50~70 Deg Celsius

Van Body Thickness:

80 mm

Trademark:

CLVEHICLES

Transport Package:

Bulk Carrier, RO-RO Ship, Container (Gp/Hq/Fr)

Specification:

5995*2280*3110 mm

Origin:

Hubei, Mainland, China

HS Code:

8705909990

Product Description

JAC 4x2 3ton Refrigerator Truck
Vehicle			Bodywork
1	Wheelbase	3308 mm	Refrigerated van	*Dimension (LWH)*	*368520602000mm (15,000L)*
2	Tyre	7.00R16		Van plate material	Glass fabric reinforced plate (GFRP)
3	Brake	Air brake		Van insulation material	Polyurethane Foam (PUF)
4	Engine power	111 kw (152 hp)		Van body thickness	80 mm
6	Engine intake	Turbocharged	Refrigerator unit	Capacity	-20 ~ 20ºc
7	Max. Speed	89 km/h		Refrigerant	R404-A
8	Rated loading	3180 kg		Application	fruit, vegetable, milk, fish, meat, ice cream, soft drink, medical vaccine, etc.
Principle
Refrigerator truck mainly consists of chassis, heat insulation box body, refrigerator unit and temperature recorders in the carriage with other optioanl accessories, including meat hook, aluminum alloy rail, ventilation channel etc. We have mini type, middle-sized, large-scale refrigerator trucks for your choice with different brands model.
Application
Refrigerator truck is closed van truck, applies to short-distance transportation of frozen or fresh goods to supermarkets, vegetable markets, and stores in the city. It is converted into refrigerated trucks, insulated vehicles, refrigerated trucks, for various purposes such as transportation of vegetables, fruits, milk, soft drink, ice cream, fresh & frozen meat, fish and other seafood, medicines (medical vaccine transport vehicles).
Competitive advantages
1. The "sandwich" board bonding type assembled by pieces is currently adopted by large domestic refrigerating truck manufacturers, and the refrigerating truck produced by this technology has high heat insulation performance. 2. Refrigerated car body structure: Polyester wet plate making process and glass fiber reinforced stainless steel column frame structure, using the most advanced fifth-generation fully enclosed polyurethane plate bonding method in the world. 3. The material of the panel: the inner and outer wall panels are made of domestic high-quality mechanism 2.2mm FRP; the intermediate insulation material is made of thick imported polyurethane; the thickness of the car body is 80mm; the thickness of the door is 80mm; the overall aluminum plate on the bottom plate, the color plate below, the imported polyurethane; 4. Accessories: 2.5mm aluminum alloy edging around the car, stainless steel wrap angle, stainless steel door lock, anti-collision rubber 4, stainless steel door frame, stainless steel hinge, energy saving lighting inside the box. 5. Refrigeration unit: The well-known domestic brand of the refrigeration unit Hanxue or Huatai overhead unit, the temperature of the car is 0 to 5 degrees and 18 degrees (optional with imported units Korea Hana, American Carrier, etc.)
Reference

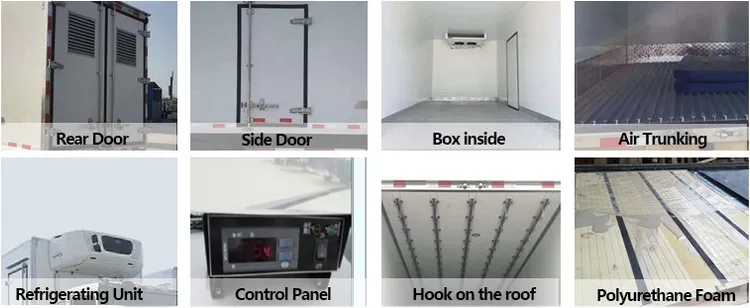

Van layout structure (optional)

Temperature recorder
