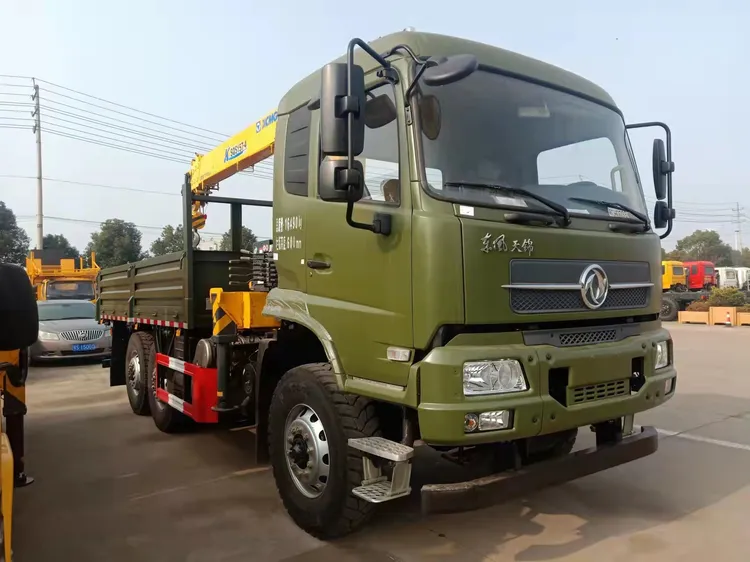

Dongfeng Tianjin 6*4 10ton Straight arm crane truck mounted crane
Crane truck is a kind of equipment that can lift, rotate and lift goods through hydraulic lifting and telescopic system. It is usually installed on the truck. The truck-mounted crane and transport vehicle can also be called truck-mounted crane. In some places, it is also called truck-mounted crane and self-propelled crane according to custom. It integrates hoisting and transportation, and is mainly used in stations, warehouses,docks,construction sites, field rescue and other places. It can be equipped with cargo cars of different lengths and cranes of different tonnage. A water tank can also be added to the carriage to form a truck-mounted sprinkler.
Item | Specification |
Driver's cab | Dongfeng D310 cab |
Front axle | 7 tons |
rear axle | 10 ton rear double axle |
Transmission | Shaanxi Fasite 9-speed gearbox |
Vehicle frame | Straight beam |
tyre | 11.00R20 type steel wire, 10 pieces, with spare tire |
Power take-off interface | have |
Power take-off | have |
Front/rear suspension (mm) | Front: 1500, Rear: 3100 |
Departure angle | Front: 13, Rear: 9 |
suspension | Leaf spring 9/10 |
Leaf spring | Top 9, Bottom 10 |
Number of axles | three |
Wheelbase (mm) | 4350+1350 |
Number of tires | 10+1 |
Track width (mm) | 2040/1860/1860 |
Tire specifications | 11.00R20 |
Driving Type | 6 * 4 |
engine | C260 33 |
emission standard | Euro III |
suspension | Leaf spring |
Driving style | Steering wheel type, left-hand drive |
brake | Drum style |
braking system | Air brake |
Spare tire holder | have |
lighting | have |
voltage | 24V |
Circuit socket | have |
Toolbox | have |
Crane model | SQS250 (10 tons) |
Maximum lifting mass | 10T |
Maximum working radius | 12.3 meters |
Maximum lifting height | 14 meters |
Crane weight | 40000 KG |
Rated lifting torque | 30t. m |
Luffing angle range | 0-75 degrees |
Rotation angle | 360 degrees |
Leg span | 5.2 meters |
Recommended system traffic | 63L/min |
System rated pressure | 28Mpa |
Crane type | 360 degree full hydraulic, full rotation, dual chamber legs |
Number of legs | 2 front legs and 2 single cavity rear legs |
High altitude operation seat | have |
Power take-off transmission shaft | have |
Hydraulic oil tank | have |
radiator | have |
Container material | Edge plate 3mm, bottom plate 5mm |
(1) JSXT has advanced research and development means, perfect development materials, reasonable engineering and assembly tools, smooth product assembly lines, perfect quality assurance system and the highest performance cost in the world.
(2) For consumers, our products are affordable and have a long service life. The product model can meet your needs and support customization.
(3) For suppliers, we provide you with sufficient profit margins. We provide you with testing to ensure the quality of the product before leaving the factory. At the same time, we support customized colors and product brands.
The company has an excellent marketing team and domestic regional channel partners,it has sound management solutions for product market development and after-sales service.It always puts customers'interests first and wholeheartedly provides the best products and services to every customer.
Q1. What's your MOQ?
One unit trailer or truck.
Totally acceptable as you wish.
