JSXTLNG40/11
Long Term Technical Support for Container Trailer
1year
Semi-Trailer
50T
ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949
8000-9000mm
1820mm
Heavy Duty
Cross Arm Type
Flatbed
3
12
Not Self-dumping
ABS Anti-lock Braking System
Steel
New
Gas Tank Semi-Trailer
40000 Kg
LNG
-162/-20 ~50°c
52.6/7.9 (Mezzanine) M3
0.65-0.1/0.2MPa
-196/50 °c
≤467.7kg/M3
JSXT
/
7166+1310+1310mm
China
Product Description

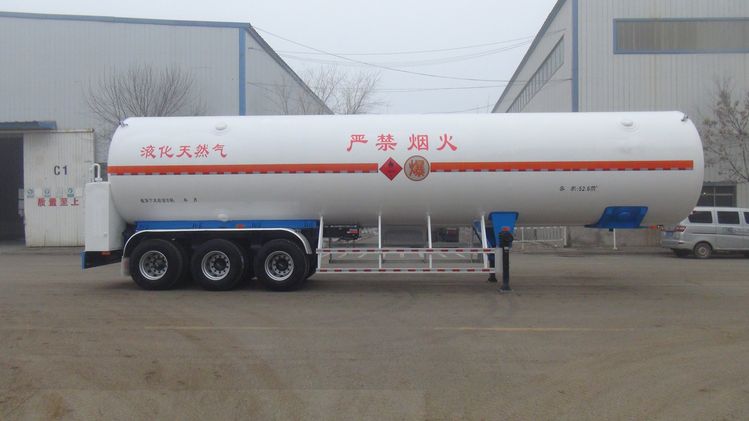

High Quality Low-Temperature Liquefied Natural Gas Transportation LNG Semi-Trailer
1. Integrated design of semi-trailer, tank body and pipeline system, with high safety performance.
2. The operating valves and instruments are arranged in the operating cabinet.
3. The tank body is made of double-layer containers, and the interlayer has sound insulation performance.
4. There are vertical and horizontal types, with capacities ranging from 30Nm³ to 300Nm³. Applications For cryogenic liquid transportation and short-term storage.
3. The tank body is made of double-layer containers, and the interlayer has sound insulation performance.
4. There are vertical and horizontal types, with capacities ranging from 30Nm³ to 300Nm³. Applications For cryogenic liquid transportation and short-term storage.
Total mass | 40000 kg | |||
Maximum allowable filling volume | 24600kg | |||
curb weight | 15400 Kg | |||
Dimension | 13000*250*3920 mm | |||
fill medium | LNG | |||
Use ambient temperature | -162/-20 ~50°C | |||
Tank volume | 52.6/7.9 (Mezzanine) m3 | |||
Tank diameters | 2346/2492 mm | |||
design pressure | 0.65-0.1/0.2MPa | |||
set tempreture | -196/50 °C | |||
Filling capacity per unit volume | ≤467.7kg/m3 | |||
work pressure | 0.60/-0.1 MPa | |||
Cylinder structure | 06Cr19Ni10(S30408)6mm | |||
head structure | 06Cr19Ni10 (S30408)7mm | |||
Shell barrel material | Q345R 4mm | |||
Shell head barrel material | Q345R 8mm | |||
Pressure test pressure | 0.87 MPa | |||
Air tightness test pressure | 0.65 MPa | |||
Nondestructive testing | RT,MT,PT | |||
pressure after gas replacement | 0.07 MPa | |||
Oxygen content in the tank | 0.40% | |||
Thermal insulation method | High vacuum multilayer insulation | |||
main structure | double layer | |||
Cryogenic safety valve | DN25*2 | |||
Cryogenic safety valve | DN10 *3 | |||
Cryogenic emergency shut-off valve | DN50 * 1 | |||
Cryogenic emergency shut-off valve | DN40 *1 | |||
Cryogenic emergency shut-off valve | DN32 *1 | |||
Differential pressure level gauge | 15KPa *1 | |||
pressure gauge | 0~1.6MPa *1 | |||
flame arrester | DN40 *1 | |||
axle loading | 14 ton *3 | |||
ABS | China Comey | |||
Tire | 12.00R20 | |||
leaf spring | 13*90*10 pieces | |||
Tractor pin | 90# or 50# | |||
Landing gear | 28T | |||
Reamrk | Pictures for reference, customized available. | |||
Q1. What's your MOQ? One unit trailer or truck.
Q2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q3. How about your product quality?
High quality has always been our advantage.We all use high quality brand materials with 100% quality assurance.
Q4. How can I get the price of your vehicle?
You can contact with us through any of the following contact information. Our personalized service person will respond you within 24hours.
Q5. Is it available to print our own brand on the vehicle? Totally acceptable as you wish.
