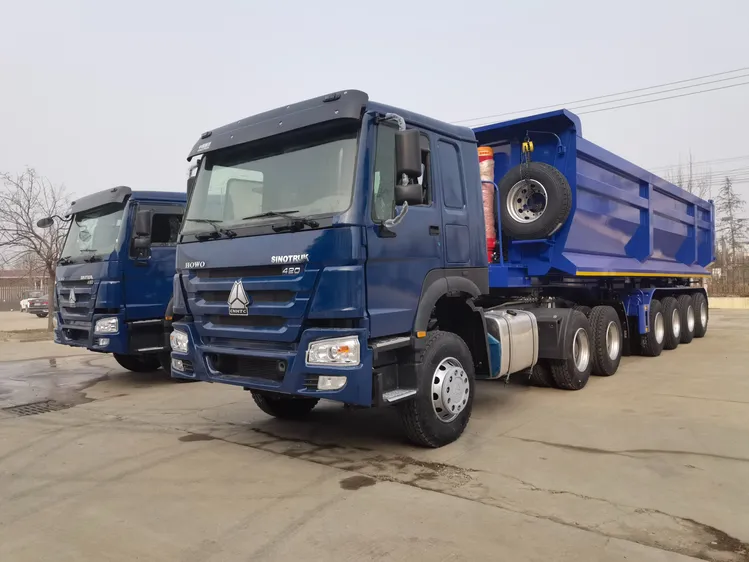

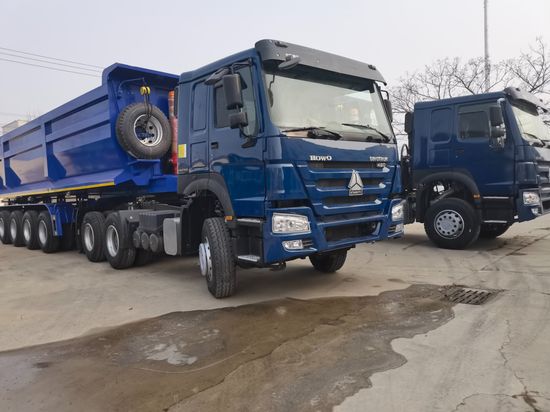

| Model | Sinotruck HOWO 6*4 Tractor Trucks |
| Manufacture year | 2022year |
| Cabin | HW76 cab, with 2 sleepers, air-conditioned |
| Engine: | WP12.420E201, 430hp, Euro 2 emission |
| Transmission | HW19710 gearbox with 10 forward and 2 reverse gears |
| Front axle: | VGD95, 9.5 tonne rated capacity, drum type |
| Driving axle | HC16*2, 32 tonne rated capacity, drum type, 4.8 speed ratio |
| Wheelbases | 3200+1400mm |
| Tire tyres: | 315/80R22.5 Vacuum tyres, 10 pcs. with 1 spare wheel |
| Fuel tanker | 400L aluminium alloy |
| Steering | left-hand steering wheel |
| Bumper | High Metal Bumper |
| ABS | No |
| Saddle seat | 50# / 90# |
| Overall quality | 9230kgs |
| Overall vehicle dimensions | 6850*2550*3200mm |
Product name | Dump back semi trailer | Warranty/certificate | 12month | |
Transport medium | Ore, sand and stone | Production cycle | 15days | |
Overall dimension | 9600×2500×3990mm | Total mass | 72T | |
self-weight | about12T | deadweight | 60T | |
Product parameters (main configuration) | ||||
Specification | Overall dimension | 9600*2500*3990mm | Bearing surface dimension: | 8900*2300*1600mm |
draw pin height | 1300mm | Front/rear suspension | ||
wheelbase | 1310mm | Track width | 1850mm | |
Frame body configuration | Item | material | Specification | |
girder | Q345 | Height 500mm, width 140mm, upper wing plate 16mm, lower wing plate 18mm, vertical plate 14mm; | ||
beam | Q345Channel steel | 100mmChannel steel | ||
Bottom plate and side plate | Q235 Manganese steel | Bottom plate8 and side plate6 | ||
Accessories | suspension | 3 axle heavy mechanical suspension | Plate spring | 100*16*10-6pcs |
Axle Specification/Brand | 13T/1850 Factory with Fuhua | number of axles | 4 | |
Tire Size/Brand | 12R22.5 | Number of tires | 16 | |
Steel ring specification/brand | 9.0-22.5 | Number of rims | 16 | |
Outrigger Specifications/Brands | 28T/Asia China | Traction Pin Specifications | 50# or 90# interchangeable type | |
Hydraulic cylinder | 200-5-6800Lift cylinder | |||
Brake system | Brake valve brand | WABCO 1 | brake chamber specification/quantity/ | T30/30-6pcs |
Brake system | Emergency brake system, air brake, dual air duct, 6 T30/30 brake chambers, two 40L air storage tanks | |||
Electrical circuit system | Circuit socket | 7-hole socket | voltage | 24V |
luminaire | LED | Two rear taillights (including two steering lights, two brake lights, two steady lights), eight side lights, two rear and tail triangle reflectors; | ||
Accessories | toolbox | 1 | tool | Shaft head wrench, rocker |
Spare tire rack | 1 | |||
1. What is your MOQ?
A:One unit.
2. Can you meet my special requirements?
A:Sure! We are a direct manufacturer, we have strong production capacity and research and development capabilities!
3. How is the quality of your products?
A:High quality has always been our advantage. We all use high-quality branded materials with 100% quality assurance. A procedure is established to inspect products, raw materials, process materials, finished materials that have been verified or tested, etc.at all stages of the manufacturing process.
4. How can I get the price of your vehicle?
A:You can contact us through any of the following contact methods. Our personalized service staff will reply you within 24 hours.
5. Is it possible to print our own brand on the vehicle?
A:It's totally acceptable.
6: What is the delivery time?
A:The delivery time is within 30-50 working days after receiving your prepayment.
