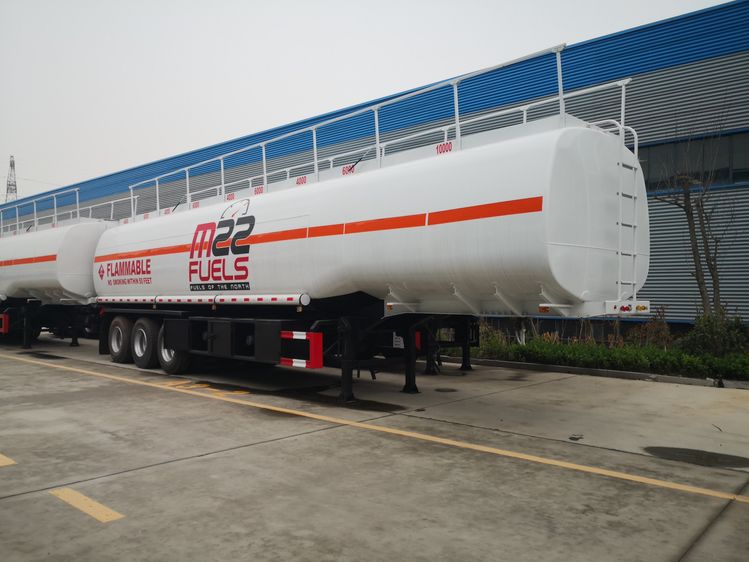

45 cbm fuel tank semi trailer:The semi-trailer tank truck is divided into two parts, the oil tank part and the skeleton or driving part supporting the tank body.
The rear part of the semi-trailer truck is generally the same. There are rear double axles (two axles) and rear three axles (three axles), and the tractor head can be selected according to the needs.
Tank performance of semi-trailer tanker
1. The tank body is made of 4mm or 6mm high-quality carbon steel produced by the iron and steel company according to national standards.
2. Alcohol and chemical tank trucks are made of stainless steel imported from South Korea, with a thickness of 4mm-5mm.
3. All kinds of hydrochloric acid, sulfuric acid, and lye tanks are made of plastic, with a thickness of 12mm - 22mm.
4. There are multiple anti-wave partitions inside the tank. The high-pressure gas leak test is adopted to make the tank body have the characteristics of high strength, stable center of gravity, and safe and stable vehicle transportation.
5. Centrifugal pumps, gear pumps, and stainless steel pumps can be selected according to the purpose of the tanker, which have the characteristics of large flow rate and fast suction speed.
| Item | Specification | |
| Tank material | Q235B | |
| Girder material | Q235B | |
| certificate | Have | |
| Volume | 45000 Liters | |
| Dimensions | 11200x2500x3900mm | |
| shape | Elliptical | |
| Loading mass (kg) | 40000 | |
| Curing mass (kg) | 9000 | |
| Head thickness | 6mm | |
| Tank thickness | 5mm | |
| kingpin | 90# | |
| suspension | Leaf spring, Enhanced | |
| Axle | Fuwa 13 tons | |
| Number of tires | Triangle brand 1200R22.5 * 13 (with a set of spare tires) | |
| Wheels | 9.0-22.5*13 | |
| Manhole | 1 units | |
| Discharge valve | 1 sets | |
| Landing Gear | 28T | |
| Brake | Drum type | |
| Braking System | Air brake | |
| Spare tire carrier | Have | |
| Light | Front position light, rear position light, rear tail light assembly,side return reflector | |
| Voltage | 24V | |
| Cas channel nipples | Handshake airway | |
| Toolbox | Have, 1.2*1 | |
Henan Jushixin Transportation Equipment Co.,Ltd is located in Zhengzhou, Henan Province, China, with a registered capital of 3,500,000USD. Main Products: Container truck semitrailer, tank semitrailer, storage tank container, stake /sidewall semitrailer, low bed semitrailer, box trailer, concrete mixing truck. International Market: Jushixin is a export-oriented company, most of our products are designed for worldwide use. Till now, we have exported more than 650 semi trailers and trucks to more 25 countries .
QA /QC: Jushixin has established sound QA /QC system, and products quality are also guaranteed in mass production. Jushixin has acquired ISO, EAC and CE certificates.
Service: Jushixin has built a smooth service flow system including pre-sale service, sale service and after-sale service.
Our Mission: Design and manufacture better transportation equipment.
Our Vision: To be world-leading transportation equipment manufacturer and supplier.
1. who are we?We are based in Henan, China, start from 2015,sell to Africa(50.00%),Southeast Asia(30.00%),South America(15.00%),North America(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Tank Container, Container Trailer, Tank Semi Trailer, Concrete Mixer Truck, Special Truck
4. why should you buy from us not from other suppliers?
International Market: Jushixin is a export-oriented company, most of our products are designed for worldwide use. Till now, we have exported more than 650 semi trailers and trucks to more 25 countries . QA /QC: Jushixin has established sound QA /QC system
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
