JSX134050SST stake semi trailer
Sidewall/Fence Stake Trailer
60t for Stake Semi Trailer
ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949
7000-8000mm
1820mm
Heavy Duty
Cross Arm Type
Flatbed
3 for Stake Semi Trailer
12 for Stake Semi Trailer
Not Self-dumping
ABS Anti-lock Braking System
Steel
New
13 Ton Fuwa for Stake Semi Trailer
12;R22.5;(315/80r22.511r20;Orothers as Needed)
Q345b Steel for Stake Semi Trailer
2 Line Air Braking System with Air Tank
24 Volt Electrical System.
Relay Valve for Stake Semi Trailer
Mechanical Suspension with Stamping Plate Rigid Le
D200t Jost Brand or 28tons(Two-Speeded) China
Wabco Valve for Stake Semi Trailer
Jost Brand 2.0 or 3.5 Inches Bolts Type
JUSHIXIN for stake semi trailer
by Bulk Cargo Ship / RO-RO/Container
13000*2490*3750mm
Mainland of China for Stake Semi Trailer
871639900
Product Description

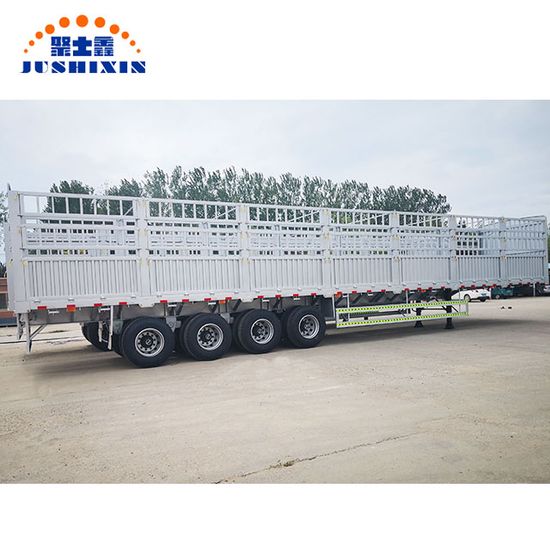

60 ton Widely used 4 axle Stake Dropside Bulk Cargo Truck Semi Trailer
1. Product Functions for stake semi trailer
1. This series side wall semi trailers ,fence semi trailer and van semi trailer are mainly used in heavy duty transportation for construction
or logistic companies, such as bulk cargo transportin.Also the side wall of them are detachable.So you we can use it transport standard
containers.
2. The capacity is for 30tons-500tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading
ramps by different needs
2. Main Product Specification for the stake semi trailer
3. Our Advantage for truck trailer
1- With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
2- An professional team which is experienced with international market and has strong technical capability to customized cost effective,because we
have more than 60 Designer and engineers as our solid backing.Among them,our technical adviser has more than 40years' experience in the trailer field.
3- Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East,
South Asia and South-America market etc..
4- Two Years Guarantee for all the the beam of trailers, timely shipment;
4. Factory Show for truck trailer
5. Guarrantee for the parts of the Stake Utility trailer
6.Customer visit
7. Quality Control for stake semi trailer:
1- For Each trailer, we must do the testing and inspect the quality,and we have more than 30 QC&QA people on the production process and the testing
process and warehouse to gurantee the quality of the every details.
2-You wil get the inspection certificate according to customer demand for every trailer which given by an independent third party certification company.
3- You will get the out-standing quality assurance
8. Packaging & Shipping for stake semi trailer :
9. Excellent&Perfect Service & Support for truck trailer
1- Whenever reliability, safety and economic is needed, there is a solution.
2- With a full range of trailer spare parts support, spare parts supplying within 3 working days.
3- Seriously according to the customer's requirements, and flexible cooperating mode.
4- Offer the professional trailer drawing after confirming the order.
5- Excellent after-sales service & product maintenance.
10.Relate Products for stake trailer
1. Product Functions for stake semi trailer
1. This series side wall semi trailers ,fence semi trailer and van semi trailer are mainly used in heavy duty transportation for construction
or logistic companies, such as bulk cargo transportin.Also the side wall of them are detachable.So you we can use it transport standard
containers.
2. The capacity is for 30tons-500tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading
ramps by different needs
2. Main Product Specification for the stake semi trailer
| Tare Weight | About 9.2T | ||
| Dimension | 13000×2650×3800mm | ||
| Bearing surface size | 12800mm*2650mm*(800+1200)mm | ||
| Gross Weight | 69.2T | ||
| Loading Capacity | 60T | ||
| Traction pin height | 1300mm | ||
| Wheelbase | 1310mm | ||
| Track | 1840mm | ||
| Main beam | Q345 | Height 500mm, width 140mm, upper wing plate 16mm, lower wing plate 16mm, vertical plate 8mm; | |
| Cross beam | Q345 steel channel | 100mm channel steel.Thickening treatment | |
| Side beam | Q345 steel channel | 16# mm i-steel | |
| Door frames and side panels | Door frame 50*70mm, side plate 1.8mm | Column | 3.5 mm bending parts |
| Floor | Q235 manganese plate | 3 mm Diamond plate | |
| suspension | 3 axles widening mechanical suspension + front axle air suspension with lifting | ||
| Leaf spring | 100*13*10-6 frame + 2 air suspension special leaf spring | ||
| Twist Lock | 12sets, can load the 1*20feet, 2*20feet,1*40feet container. | ||
| Axle specifications / brand | 13ton | Number of axles | 4 units |
| Tire specifications / brand | 12R22.5 Triangle brand | Number of tires | 16 PCS |
| Steel ring specifications / brand | 9.0-22.5 | Number of rims | 16 PCS |
| support Leg specifications / brand | 28 T | Traction pin specification | 50# or 90# inter changeable |
| Brake valve brand | KANGJIAN | Brake chamber specifications / quantity | T30/30-6pcs |
| Brake system | Emergency braking system, air brake, double air line pipe, 6 T30/30 brake air chambers, two 40L gas storage tanks | ||
| Circuit socket | 7-hole socket | Voltage | 24 volts |
| light | LED | Two rear taillights (including two steering, two brake lights, two lights constantly), eight side lights, two rear-end triangular reflectors; | |
| color | according to customers needs | ||
| The tool kit | 1 pc | tool | Shaft head wrench, rocker |
| Rain wear | Have | ||
| Rope bolt | Have | ||
| Spare tire rack | 1 pc | ||
3. Our Advantage for truck trailer
1- With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
2- An professional team which is experienced with international market and has strong technical capability to customized cost effective,because we
have more than 60 Designer and engineers as our solid backing.Among them,our technical adviser has more than 40years' experience in the trailer field.
3- Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East,
South Asia and South-America market etc..
4- Two Years Guarantee for all the the beam of trailers, timely shipment;
4. Factory Show for truck trailer
5. Guarrantee for the parts of the Stake Utility trailer
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |
| SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||
| KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||
| BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | |||
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |
| BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||
| AIR RESERVOIR | 6 MONTHS | |||||
| ITEM NAME | WARRANTY | |||||
| OTHERS | LEAF SPRING | 3 MONTHS | ||||
| BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||
| EMERGENCY RELAY VALVE | 3 MONTHS | |||||
| BRAKE SHOE | 3 MONTHS | |||||
| RELAY VALVE | 3 MONTHS | |||||
7. Quality Control for stake semi trailer:
1- For Each trailer, we must do the testing and inspect the quality,and we have more than 30 QC&QA people on the production process and the testing
process and warehouse to gurantee the quality of the every details.
2-You wil get the inspection certificate according to customer demand for every trailer which given by an independent third party certification company.
3- You will get the out-standing quality assurance
8. Packaging & Shipping for stake semi trailer :
9. Excellent&Perfect Service & Support for truck trailer
1- Whenever reliability, safety and economic is needed, there is a solution.
2- With a full range of trailer spare parts support, spare parts supplying within 3 working days.
3- Seriously according to the customer's requirements, and flexible cooperating mode.
4- Offer the professional trailer drawing after confirming the order.
5- Excellent after-sales service & product maintenance.
